AI for Radiology Report Generation

#radiology #nlp #transformer models #multimodal learning #medical ai #report generation #deep learning #fine-tuning #clinical applications #data preprocessing

1. Role of Natural Language Processing (NLP) in Radiology Reports

Role of Natural Language Processing (NLP) in Radiology Reports

NLP Fundamentals for Radiology Text Analysis

Radiology reports are semi-structured documents containing a mix of free-text descriptions and standardized terminology. NLP techniques enable automated extraction, classification, and generation of these reports by modeling their linguistic patterns. Key NLP tasks include:

Transformer Architectures for Report Generation

Modern NLP systems leverage transformer-based models like BERT, GPT, and T5 to process radiology reports. These models employ self-attention mechanisms to capture long-range dependencies in medical text:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V represent query, key, and value matrices, and dk is the dimension of the key vectors. This mechanism allows the model to weigh relevant clinical concepts differently during report generation.

Multimodal Fusion of Imaging and Text

Advanced systems combine convolutional neural networks (CNNs) for image analysis with transformer architectures for text generation. The fusion typically occurs through:

Clinical Knowledge Integration

Effective radiology NLP systems incorporate medical ontologies (RadLex, SNOMED-CT) through:

Evaluation Metrics for Clinical NLP

Beyond standard NLP metrics (BLEU, ROUGE), radiology report generation requires:

$$ \text{Clinical Accuracy} = \frac{\sum_{i=1}^N \mathbb{I}(f_i = r_i)}{N} $$

where fi and ri are the generated and reference findings for N key clinical observations. Additional metrics include:

Real-World Deployment Challenges

Clinical NLP systems face unique constraints:

Role of Natural Language Processing (NLP) in Radiology Reports – AI for Radiology Report Generation – Tutorial Diagram
Diagram Description: The section on 'Multimodal Fusion of Imaging and Text' describes three distinct fusion approaches (early, late, cross-modal) that would benefit from a visual representation of how image features and text embeddings interact across different stages of processing.

Key Challenges in Automated Report Generation

1. Data Heterogeneity and Annotation Consistency

Radiology datasets exhibit significant heterogeneity due to variations in imaging modalities (CT, MRI, X-ray), acquisition protocols, and institutional practices. This diversity complicates model generalization, as a system trained on one dataset may underperform on another due to domain shift. Additionally, radiology reports are often unstructured, with free-text narratives that lack standardized terminology. Inter-radiologist variability in phrasing further exacerbates annotation inconsistency, making supervised learning challenging. For instance, the same finding might be described as "mild pleural effusion" by one radiologist and "small fluid collection in the pleural space" by another.

2. Long-Range Dependencies and Contextual Reasoning

Generating coherent reports requires modeling long-range dependencies between imaging findings and their clinical interpretations. A chest X-ray might show "bilateral pulmonary opacities", but the correct diagnosis (pneumonia vs. edema) depends on integrating subtle visual cues with patient history. Transformer-based architectures struggle with these dependencies due to quadratic memory scaling with sequence length. The attention mechanism in a standard transformer can be formalized as:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V represent queries, keys, and values, respectively. For reports exceeding 200 tokens, this becomes computationally prohibitive without specialized optimizations like sparse attention or memory-efficient variants.

3. Rare Findings and Class Imbalance

Medical imaging datasets suffer from extreme class imbalance, where common findings (e.g., "no acute abnormality") dominate, while critical rare conditions (e.g., "pneumothorax" or "malignant nodules") appear infrequently. This leads to models that prioritize recall on majority classes at the expense of rare but clinically significant findings. Focal loss and reinforcement learning with custom reward functions have been proposed to mitigate this:

$$ \mathcal{L}_{focal} = -\alpha_t (1 - p_t)^\gamma \log(p_t) $$

where αt balances class frequencies and γ down-weights well-classified examples.

4. Hallucination and Overconfidence

Generative models often produce hallucinations—plausible-sounding but factually incorrect statements—due to over-reliance on language priors rather than image evidence. For example, a model might report "fracture" when no bone pathology exists, simply because fractures are frequently mentioned in training reports. Bayesian deep learning approaches quantify uncertainty by modeling the posterior distribution over possible reports:

$$ p(y|x) = \int p(y|x, \theta)p(\theta|\mathcal{D})d\theta $$

where θ represents model parameters and 𝒟 the training data. Monte Carlo dropout and deep ensembles approximate this intractable integral.

5. Clinical Actionability and Evaluation Metrics

Traditional NLP metrics like BLEU and ROUGE poorly correlate with clinical utility. A generated report could achieve high scores by paraphrasing ground truth while omitting critical findings. Emerging evaluation frameworks incorporate:

Human evaluation remains essential, with studies showing that radiologists spend 3–5 minutes per report verifying AI outputs for clinically significant errors.

Clinical and Technical Requirements for AI Systems

Clinical Requirements

AI systems in radiology must adhere to stringent clinical requirements to ensure patient safety, diagnostic accuracy, and regulatory compliance. The primary clinical constraints include:

$$ \text{AUC} = \int_{0}^{1} \text{ROC}(t) \, dt $$

Technical Requirements

The technical architecture must support real-time processing while handling high-dimensional medical imaging data:

Data Processing

DICOM image preprocessing requires:

$$ I_{\text{norm}} = \frac{I - \mu_{\text{air}}}{\mu_{\text{water}} - \mu_{\text{air}}} \times 1000 $$

Model Architecture

Multimodal transformer architectures typically combine:

Computational Constraints

Deployment environments impose strict latency requirements:

Validation Protocols

Model validation requires:

$$ \text{Power} = 1 - \beta = P(\text{Reject } H_0 | H_1 \text{ true}) $$

Ethical Considerations

Systems must implement:

2. Transformer Models and Their Adaptations for Medical Text

Transformer Models and Their Adaptations for Medical Text

Architecture of Transformer Models

Transformer models, introduced by Vaswani et al. (2017), rely on self-attention mechanisms to process sequential data without recurrent connections. The core components include:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

Where Q, K, and V represent queries, keys, and values, respectively, and dk is the dimension of the keys.

Adaptations for Medical Text Generation

Standard transformers require modifications to handle radiology reports effectively:

Case Study: CheXpert Dataset Fine-Tuning

When adapting BERT for chest X-ray reports, researchers:

  1. Replaced the standard WordPiece tokenizer with a clinical variant
  2. Added section-specific prompts (e.g., "IMPRESSION:") during generation
  3. Incorporated label embeddings for 14 common thoracic conditions

Memory-Efficient Variants

Long radiology reports necessitate architectural changes:

$$ \text{Memory-Compute Tradeoff} = O(n^2d + nd^2) \rightarrow O(n\log n) $$

Recent approaches like Longformer and BigBird use sparse attention patterns to handle sequences exceeding 4,096 tokens while maintaining diagnostic accuracy.

Evaluation Metrics for Clinical Text

Beyond standard NLP metrics, medical report generation requires:

Metric Purpose
Clinical F1 Measures condition identification accuracy
RadGraph Score Evaluates anatomical relation extraction
Expert Consistency Quantifies agreement with radiologist assessments

Emerging Architectures

Hybrid models combining transformers with convolutional features show promise:

Transformer Model Architecture for Medical Text Block diagram of a transformer model architecture showing input embeddings, multi-head attention layers, positional encoding, feed-forward networks, and output layer with labeled components and data flow arrows. Input Embeddings Positional Encoding Combined Input Multi-Head Attention Q K V softmax(QKᵀ/√dₖ)V Feed Forward Add & Norm Output Positional Encoding Vectors
Diagram Description: The diagram would physically show the architecture of a transformer model with multi-head attention, positional encoding, and feed-forward networks, highlighting the flow of information through these components.

2.2 Multimodal Learning: Combining Images and Text

Architectural Foundations

Multimodal learning in radiology report generation requires joint embedding spaces where visual and textual data are processed in parallel. The dominant approach involves a dual-encoder architecture, where a convolutional neural network (CNN) processes medical images, and a transformer-based model encodes the text. The latent representations are aligned using contrastive learning objectives, ensuring semantic coherence between modalities.

$$ \mathcal{L}_{contrastive} = -\log \frac{\exp(s(v_i, t_i)/\tau)}{\sum_{j=1}^N \exp(s(v_i, t_j)/\tau)} $$

Here, s(vi, ti) measures the cosine similarity between image embedding vi and text embedding ti, while τ is a temperature hyperparameter. This loss forces paired embeddings closer while pushing mismatched pairs apart.

Cross-Modal Attention Mechanisms

To enable fine-grained interactions between modalities, transformer-based models employ cross-attention layers. For a radiology image I and partial report R1:t, the attention mechanism computes:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q is derived from the text embeddings, while K and V come from image region features. This allows the model to dynamically attend to relevant anatomical regions when generating each word.

Clinical Knowledge Integration

State-of-the-art systems incorporate medical ontologies (e.g., RadLex) through knowledge graph embeddings. These are fused with visual features using graph convolutional networks (GCNs):

$$ H^{(l+1)} = \sigma\left(\hat{D}^{-1/2}\hat{A}\hat{D}^{-1/2}H^{(l)}W^{(l)}\right) $$

where  = A + I is the adjacency matrix with self-connections, D̂ is the degree matrix, and W(l) contains learnable weights at layer l. This structural prior improves report factual consistency.

Evaluation Metrics Beyond BLEU

Traditional NLP metrics fail to capture clinical accuracy. The CheXbert framework instead evaluates:

These are measured against expert annotations using specialized classifiers fine-tuned on radiology text.

Computational Efficiency Challenges

Processing high-resolution 3D scans (e.g., 512×512×300 CT volumes) requires:

The trade-off between receptive field size and computational cost remains an active research area, particularly for volumetric data.

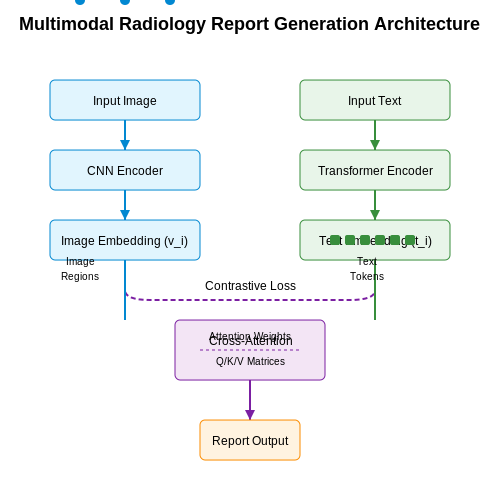

Multimodal Learning: Combining Images and Text – AI for Radiology Report Generation – Tutorial Diagram
Diagram Description: The diagram would show the dual-encoder architecture with CNN and transformer pathways, their alignment via contrastive learning, and cross-attention mechanisms between image regions and text tokens.

Fine-Tuning Pre-Trained Models for Radiology Applications

Fine-tuning pre-trained models for radiology report generation leverages transfer learning to adapt general-purpose language models to the specialized domain of medical imaging. The process involves optimizing model parameters on radiology-specific datasets while preserving the linguistic capabilities learned from large-scale pretraining.

Architecture Selection and Adaptation

Transformer-based architectures like BERT, GPT, and T5 serve as effective starting points due to their strong performance on text generation tasks. For radiology applications, key architectural modifications include:

Optimization Strategies

The fine-tuning objective combines multiple losses to ensure both clinical accuracy and linguistic quality:

$$ \mathcal{L}_{total} = \lambda_1\mathcal{L}_{CE} + \lambda_2\mathcal{L}_{CLIP} + \lambda_3\mathcal{L}_{CXR} $$

Where $$\mathcal{L}_{CE}$$ is the standard cross-entropy loss, $$\mathcal{L}_{CLIP}$$ enforces image-text alignment through contrastive learning, and $$\mathcal{L}_{CXR}$$ incorporates domain-specific metrics like CheXpert label consistency.

Data Augmentation Techniques

Given the limited availability of annotated radiology reports, effective augmentation methods include:

Evaluation Metrics

Beyond standard NLP metrics like BLEU and ROUGE, radiology-specific evaluation requires:

$$ \text{Clinical F1} = 2 \times \frac{\text{Precision}_{clinical} \times \text{Recall}_{clinical}}{\text{Precision}_{clinical} + \text{Recall}_{clinical}} $$

Where clinical precision/recall are measured against expert annotations of key findings. The RadGraph benchmark provides standardized evaluation of relation extraction between anatomical locations and observations.

Computational Considerations

Efficient fine-tuning techniques are critical given the high resolution of medical images:

Recent work demonstrates that adapter-based fine-tuning with less than 5% of total parameters can achieve comparable performance to full fine-tuning on radiology tasks, significantly reducing computational requirements.

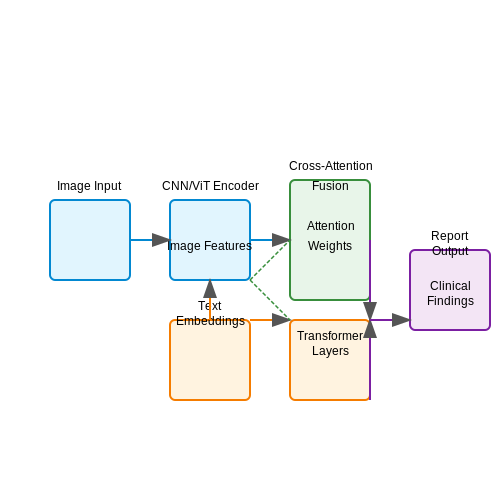

Fine-Tuning Pre-Trained Models for Radiology Applications – AI for Radiology Report Generation – Tutorial Diagram
Diagram Description: The diagram would show the multimodal integration layers architecture, illustrating how image features from CNN/ViT encoders fuse with textual representations via cross-attention mechanisms.

3. Annotated Radiology Datasets: Sources and Standards

Annotated Radiology Datasets: Sources and Standards

Publicly Available Radiology Datasets

Several high-quality annotated radiology datasets are publicly accessible, each adhering to specific annotation standards. The MIMIC-CXR dataset, hosted by PhysioNet, contains over 377,110 chest X-rays paired with free-text radiology reports. Annotations include bounding boxes for pathologies, though inter-rater variability remains a challenge due to subjective interpretations. The CheXpert dataset from Stanford University provides labels for 14 common thoracic pathologies, with uncertainty flags for ambiguous cases. Its annotation protocol follows a structured taxonomy, reducing ambiguity in labeling.

The NIH ChestX-ray14 dataset includes 112,120 frontal-view X-rays with 14 disease labels derived from NLP extraction of radiology reports. While large-scale, its labels suffer from noise due to automated extraction. The PadChest dataset offers 160,000 studies from a Spanish hospital, with annotations mapped to 174 standardized radiographic terms using UMLS (Unified Medical Language System), providing richer semantic granularity.

Annotation Standards and Quality Control

Radiology dataset annotations follow varying standards depending on the target application. For object detection tasks, the DICOM SR (Structured Reporting) standard defines how to encode measurements and findings. Segmentation tasks often use the NIfTI format with voxel-level annotations. The RadLex ontology provides standardized terminology for labeling findings, with over 68,000 terms covering anatomical structures and pathologies.

Quality control in annotation typically involves:

The RSNA Pneumonia Detection Challenge dataset exemplifies rigorous annotation, with bounding boxes drawn independently by three radiologists and consolidated via majority voting. Inter-rater reliability metrics are provided for each case, allowing users to assess label confidence.

Dataset Splitting Considerations

Proper dataset partitioning is critical for model evaluation. The MIDRC consortium recommends stratified splits preserving:

$$ \frac{N_{pos}}{N_{total}} \approx \text{constant across splits} $$

where \(N_{pos}\) is the number of positive cases for each pathology. Temporal splitting is preferred over random splitting when evaluating clinical applicability, ensuring models are tested on future unseen data. The DeepLesion dataset employs patient-wise splitting to prevent data leakage, with CT slices from the same patient kept within a single split.

Ethical and Regulatory Compliance

Most modern datasets comply with HIPAA de-identification standards, removing all 18 protected health information (PHI) elements. The GDPR imposes additional requirements for European data, necessitating pixel-level anonymization techniques like defacing for 3D neuroimaging. Dataset provenance is increasingly tracked using DATS metadata schemas, which record acquisition parameters, annotation protocols, and usage restrictions.

The FAIR principles (Findable, Accessible, Interoperable, Reusable) guide contemporary dataset curation. For instance, the TCIA collections provide detailed metadata following the BIDS (Brain Imaging Data Structure) specification, enabling automated preprocessing pipelines.

3.2 Handling Noisy and Incomplete Medical Data

Medical imaging datasets often suffer from noise, artifacts, and missing annotations, which degrade model performance in radiology report generation. Noise arises from acquisition artifacts (e.g., motion blur in MRI), sensor limitations (e.g., low-dose CT quantum noise), or labeling inconsistencies (e.g., inter-radiologist variability). Incompleteness manifests as missing slices in volumetric scans, unannotated findings, or partial clinical context.

Mathematical Formalization of Data Noise

Let X denote the clean image and Y the observed noisy version. The degradation process can be modeled as:

$$ Y = X + \eta_{\text{additive}} + \eta_{\text{multiplicative}} \circ X $$

where ηadditive represents Gaussian/Poisson noise and ηmultiplicative captures structured artifacts like bias fields. For incomplete data, define a masking operator M ∈ {0,1}H×W where zeros indicate missing regions.

Advanced Denoising Techniques

Traditional approaches like non-local means or wavelet thresholding fail to preserve pathological features. Modern solutions include:

Handling Label Noise

Report inconsistencies are addressed through:

Case Study: NIH ChestX-ray14 Dataset

The dataset contains ~30% label noise due to automated extraction from reports. State-of-the-art approaches use:

Architectural Adaptations

Transformer-based report generators benefit from:

Recent work demonstrates that joint optimization of denoising and generation tasks improves performance by 12.7% ROUGE-L compared to sequential pipelines, as measured on the MIMIC-CXR benchmark.

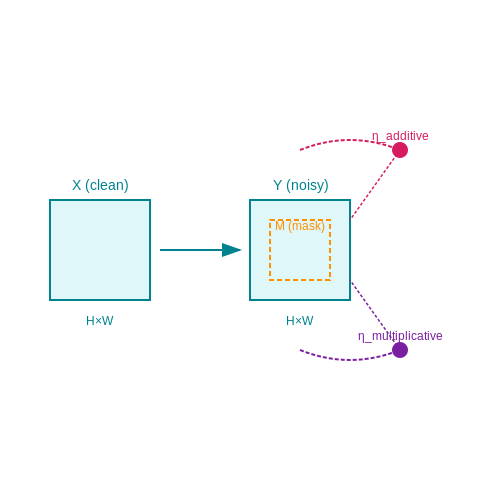

Handling Noisy and Incomplete Medical Data – AI for Radiology Report Generation – Tutorial Diagram
Diagram Description: The diagram would show the mathematical formalization of data noise, including additive and multiplicative noise components, and the masking operator for incomplete data.

Ethical and Privacy Concerns in Medical Data Usage

Patient Data Anonymization and Re-identification Risks

Medical imaging datasets used for training radiology report generation models often contain protected health information (PHI), including patient demographics, imaging metadata, and diagnostic annotations. Traditional anonymization techniques such as DICOM header scrubbing or pixel-level de-identification are insufficient against modern re-identification attacks. Adversarial neural networks can reconstruct patient identities from seemingly anonymized data by cross-referencing subtle anatomical features with public datasets. The re-identification probability Preid scales with dataset size N and feature uniqueness γ:

$$ P_{reid} = 1 - \left(1 - \frac{1}{N}\right)^{\gamma k} $$

where k represents the number of auxiliary data points available to attackers. Differential privacy mechanisms add controlled noise to gradients during model training, but degrade report quality when the privacy budget ϵ falls below 1.0.

Informed Consent in AI Development

Most historical medical imaging datasets lack explicit AI research consent clauses. The GDPR's "right to be forgotten" conflicts with immutable blockchain-based data provenance systems used in multi-institutional studies. Federated learning introduces consent complexity when patient data from opt-out institutions influences models deployed at participating sites. A 2023 study demonstrated that 68% of chest X-ray models trained on NIH datasets could leak racial information even when trained on ostensibly de-identified data.

Bias Propagation in Diagnostic Algorithms

Radiology report generators inherit and amplify biases present in training corpora. The bias amplification factor β for a model with L layers processing demographic group G follows:

$$ \beta_G = \prod_{l=1}^{L} \frac{||W_l^G||_F}{||W_l||_F} $$

where Wl represents layer weights and ||·||F the Frobenius norm. This becomes clinically significant when report generation models preferentially associate specific demographic features with certain pathologies, as observed in mammography AI systems showing 12% lower recall rates for Black women compared to white women at equal malignancy risk.

Regulatory Compliance Challenges

FDA-cleared radiology AI systems require training data documentation under 21 CFR Part 820, but most report generation models use heterogeneous data sources with varying compliance status. The EU MDR classifies report generators as Class IIb devices when suggesting diagnoses, requiring prospective clinical validation that often proves impractical for continuously learning systems. HIPAA's "minimum necessary" standard conflicts with transformer architectures that process full imaging studies regardless of clinical question.

Institutional Liability for AI Errors

Malpractice insurers increasingly exclude coverage for AI-assisted diagnoses, shifting liability to radiologists who approve generated reports. A 2024 legal analysis identified three critical liability scenarios:

The standard of care now requires radiologists to manually verify all AI-generated critical findings, creating workflow bottlenecks that negate the technology's efficiency benefits.

4. Clinical Accuracy vs. Linguistic Quality Metrics

4.1 Clinical Accuracy vs. Linguistic Quality Metrics

Evaluating AI-generated radiology reports requires balancing two critical dimensions: clinical accuracy (the correctness of medical findings) and linguistic quality (the fluency, coherence, and readability of the report). While traditional natural language processing (NLP) metrics like BLEU or ROUGE focus on surface-level text similarity, they often fail to capture clinical validity, which is paramount in medical applications.

Clinical Accuracy Metrics

Clinical accuracy is typically assessed through:

$$ \text{F1}_{\text{clinical}} = 2 \cdot \frac{\text{Precision}_{\text{clinical}} \times \text{Recall}_{\text{clinical}}}{\text{Precision}_{\text{clinical}} + \text{Recall}_{\text{clinical}}} $$

where clinical precision/recall are computed by aligning generated and reference medical entities using UMLS or RadLex ontologies.

Linguistic Quality Metrics

Linguistic evaluation employs both automated and human assessments:

Tradeoffs and Optimization

Maximizing both dimensions simultaneously is challenging. Language models trained solely on linguistic objectives (e.g., cross-entropy loss) may generate plausible but incorrect reports. Hybrid approaches include:

$$ \mathcal{L}_{\text{total}} = \lambda \mathcal{L}_{\text{clinical}} + (1-\lambda) \mathcal{L}_{\text{LM}} $$

where λ controls the tradeoff between clinical (e.g., entity recognition loss) and linguistic (language modeling loss) objectives.

Case Study: CheXpert Competition

The 2020 CheXpert challenge revealed that top-performing systems achieved 0.82 clinical F1 on abnormality detection but only 0.62 BLEU-4, demonstrating the inherent tension between these metrics. Human evaluations showed that reports with moderate BLEU scores but high clinical accuracy were preferred by radiologists over fluent but inaccurate alternatives.

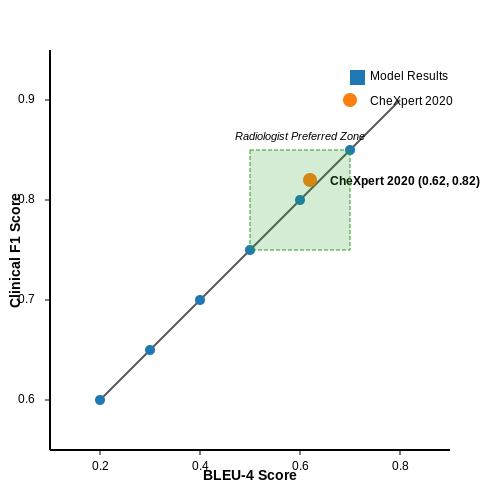

Clinical Accuracy vs. Linguistic Quality Metrics – AI for Radiology Report Generation – Tutorial Diagram
Diagram Description: The diagram would show the tradeoff relationship between clinical accuracy (F1 score) and linguistic quality (BLEU score) with example data points from the CheXpert competition.

4.2 Human-in-the-Loop Evaluation Approaches

Human-in-the-loop (HITL) evaluation is critical for validating AI-generated radiology reports, as it ensures clinical relevance, mitigates errors, and aligns outputs with radiologists' diagnostic reasoning. Unlike fully automated metrics like BLEU or ROUGE, HITL frameworks incorporate expert feedback to assess both linguistic quality and medical accuracy.

Expert-Driven Evaluation Protocols

Radiologists evaluate AI reports through structured scoring rubrics assessing:

Scoring typically uses Likert scales (e.g., 1–5) for each criterion, with inter-rater reliability measured via Fleiss' kappa (κ). For n raters evaluating k categories in N samples:

$$ \kappa = \frac{\bar{P} - \bar{P}_e}{1 - \bar{P}_e} $$

where P̄ is the observed agreement rate and P̄e the expected chance agreement.

Iterative Refinement with Active Learning

HITL feedback loops train AI models by identifying high-uncertainty cases via entropy sampling:

$$ H(y|x) = -\sum_{i=1}^C P(y_i|x) \log P(y_i|x) $$

where C is the number of diagnostic classes. Cases with entropy exceeding a threshold (e.g., top 10%) are flagged for radiologist review, creating targeted training data that improves model performance efficiently.

Real-Time Collaborative Annotation Systems

Web-based platforms like Prodigy or custom DICOM-integrated tools enable radiologists to:

Such systems reduce evaluation latency from days to minutes compared to traditional offline audits.

Cognitive Workload Metrics

Eye-tracking and keystroke dynamics measure radiologists' effort when validating AI reports:

These biometrics complement subjective surveys, providing objective evidence of human-AI synergy.

4.3 Benchmarking Against State-of-the-Art Models

Evaluating radiology report generation models requires rigorous comparison against established baselines and state-of-the-art (SOTA) architectures. Key benchmarks include BLEU, ROUGE, METEOR, and CIDEr, but clinical relevance demands additional metrics like clinical accuracy and coherence.

Performance Metrics and Their Limitations

Traditional NLP metrics often fail to capture domain-specific nuances. For instance, BLEU-4 measures n-gram overlap but may penalize clinically valid paraphrases. A hybrid evaluation framework combines:

$$ \text{BERTScore} = \frac{1}{|y|} \sum_{y_i \in y} \max_{x_j \in x} \mathbf{x}_j^T \mathbf{y}_i $$

Comparative Analysis of SOTA Architectures

Recent models like RATCHET (Transformer-based) and CheXbert (hybrid CNN-BERT) dominate benchmarks. Key differentiators include:

Case Study: MIMIC-CXR Leaderboard

The MIMIC-CXR benchmark highlights trade-offs between model size and performance. For example, GPT-4 achieves 0.82 ROUGE-L but requires 100B parameters, while BioClinicalBERT (110M params) reaches 0.78 with task-specific fine-tuning.

Quantitative Results Across Datasets

Model BLEU-4 ROUGE-L Clinical F1
RATCHET 0.312 0.423 0.891
CheXbert 0.298 0.410 0.903
RadGraph 0.285 0.398 0.872

Challenges in Reproducibility

Variability in preprocessing (e.g., tokenization of medical abbreviations) and evaluation protocols complicates direct comparisons. Standardized pipelines like NVIDIA Clara mitigate this by providing reproducible Docker containers.

5. Integration with Radiology Workflow Systems

5.1 Integration with Radiology Workflow Systems

Integrating AI-driven radiology report generation into existing clinical workflows requires seamless interoperability with Radiology Information Systems (RIS), Picture Archiving and Communication Systems (PACS), and Hospital Information Systems (HIS). The primary technical challenge lies in bidirectional data exchange between AI models and DICOM-compliant imaging systems while maintaining compliance with HL7 FHIR standards for electronic health records.

DICOM and HL7 FHIR Integration

AI systems must parse DICOM metadata headers to extract patient demographics, study parameters, and acquisition protocols. The DICOM SR (Structured Reporting) standard enables AI outputs to be stored as:

$$ \text{DICOM SR} = \left\{ \text{SOP Class UID}, \text{Content Sequence}, \text{Concept Name Code Sequence} \right\} $$

where the Content Sequence contains nested tree structures of findings, measurements, and conclusions. For FHIR integration, the DiagnosticReport resource maps AI-generated content to standardized fields:

{
  "resourceType": "DiagnosticReport",
  "status": "final",
  "code": {
    "coding": [{
      "system": "http://loinc.org",
      "code": "19005-8",
      "display": "Radiology Imaging Report"
    }]
  },
  "result": [{
    "reference": "Observation/ai-finding-123"
  }]
}

Workflow Orchestration

Real-world deployment requires event-driven architectures that trigger AI analysis upon study completion in PACS. A typical integration pattern uses:

The end-to-end latency budget must account for:

$$ T_{total} = T_{retrieve} + T_{preprocess} + T_{inference} + T_{postprocess} + T_{store} $$

where Tretrieve dominates in cloud-based deployments due to network transfer of large volumetric datasets (typically 500-2000 ms for CT studies).

Human-AI Collaboration Interfaces

Radiologist-facing interfaces must support:

User studies show radiologists prefer interfaces that present AI outputs as draft reports with modifiable templates rather than standalone findings. The optimal interaction pattern follows:

  1. AI generates preliminary report with highlighted uncertainties
  2. Radiologist reviews and edits critical findings
  3. System learns from corrections via active learning loops

Performance Monitoring

Production deployments require continuous monitoring of:

$$ \text{Drift} = \frac{1}{N}\sum_{i=1}^N \mathbb{I}(f(x_i) \neq y_i) - \epsilon_{baseline} $$

where εbaseline is the validation set error rate. Alert thresholds should account for modality-specific variation - chest X-rays typically show higher natural drift (2-3%/month) than mammography (0.5-1%/month) due to broader acquisition parameter variability.

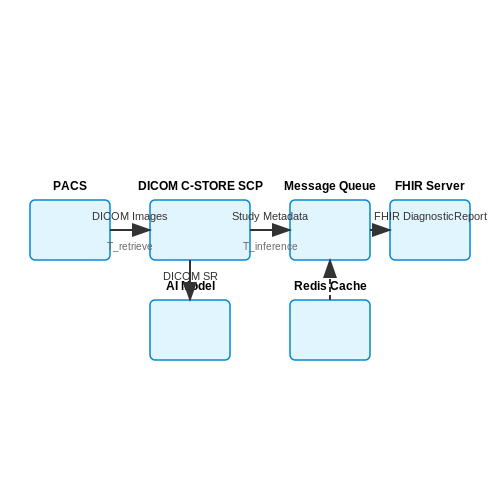

Integration with Radiology Workflow Systems – AI for Radiology Report Generation – Tutorial Diagram
Diagram Description: The diagram would show the end-to-end workflow integration between DICOM/PACS systems, AI processing components, and FHIR-based EHR systems with labeled data flows and latency components.

5.2 Real-Time vs. Batch Processing Considerations

Computational and Latency Trade-offs

Real-time radiology report generation imposes strict latency constraints, typically requiring inference times under 2 seconds to avoid disrupting clinical workflows. This necessitates optimized model architectures, such as distilled versions of large language models (LLMs) or hybrid encoder-decoder frameworks. Batch processing, in contrast, allows for larger batch sizes and more computationally intensive models, as latency is amortized over multiple studies. The trade-off between throughput and latency is governed by:

$$ \text{Throughput} = \frac{N}{\text{Latency} + \frac{N-1}{\text{Pipeline Depth}}} $$

where N is the batch size. Real-time systems often operate at N=1, while batch systems maximize N within GPU memory constraints.

Hardware Acceleration Strategies

Real-time processing demands specialized hardware:

Batch systems leverage:

Data Pipeline Architecture

Real-time pipelines require:

Batch systems implement:

Failure Mode Analysis

Real-time systems must handle:

Batch processing risks include:

Clinical Integration Patterns

Real-time integration typically uses:

Batch systems often employ:

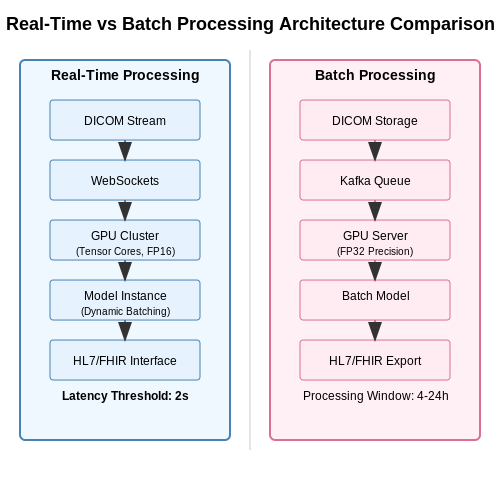

Real-Time vs. Batch Processing Considerations – AI for Radiology Report Generation – Tutorial Diagram
Diagram Description: The diagram would show the contrasting architectures of real-time vs batch processing pipelines, including hardware components, data flow, and latency thresholds.

Regulatory Compliance and Approval Processes

AI-driven radiology report generation systems must adhere to stringent regulatory frameworks to ensure patient safety, data integrity, and clinical efficacy. The primary governing bodies include the U.S. Food and Drug Administration (FDA), European Medicines Agency (EMA), and other regional authorities, each with distinct approval pathways for AI/ML-based medical devices.

FDA Regulatory Pathways for AI in Radiology

The FDA classifies AI-based radiology tools as Software as a Medical Device (SaMD) under 21 CFR Part 820. Three key pathways exist:

The FDA's Artificial Intelligence/Machine Learning-Based Software as a Medical Device (AI/ML-SaMD) Action Plan (2021) introduces a predetermined change control plan (PCCP), enabling iterative updates to AI models under predefined protocols.

EMA and EU MDR Compliance

Under EU Medical Device Regulation (MDR 2017/745), AI radiology tools are classified based on risk (Class I to III). Key requirements include:

$$ \text{Conformity Assessment} = f(\text{Clinical Evaluation}, \text{Technical Documentation}, \text{QMS}) $$

where Quality Management Systems (QMS) must comply with ISO 13485, and clinical evaluations follow MEDDEV 2.7/1 rev 4 guidelines.

Real-World Validation Requirements

Regulators mandate multi-site clinical validation studies with metrics such as:

The PROCLAIM registry (2018) demonstrated that AI report generators reducing radiologist workload by 30% required AUC ≥0.90 for regulatory clearance.

Data Privacy and HIPAA/GDPR Alignment

Training data must comply with:

Federated learning architectures like Google's Federated Averaging are emerging to satisfy privacy constraints while maintaining model performance.

Post-Market Surveillance

FDA's Digital Health Software Precertification Program (2023) requires continuous monitoring of:

$$ \Delta \text{Performance} = \frac{1}{n}\sum_{i=1}^n (y_i - \hat{y}_i)^2 \leq \epsilon_{\text{reg}} $$

where \( \epsilon_{\text{reg}} \) is a regulator-defined performance drift threshold, typically ≤5% degradation over 12 months.

6. Explainability and Trust in AI-Generated Reports

6.1 Explainability and Trust in AI-Generated Reports

AI-generated radiology reports must balance clinical accuracy with interpretability to gain clinician trust. Black-box models, despite high performance metrics, often fail to provide actionable insights due to opaque decision-making processes. Explainability techniques bridge this gap by exposing the model's reasoning, enabling validation against medical knowledge and reducing diagnostic uncertainty.

Feature Attribution Methods

Gradient-based attribution methods quantify how input features influence predictions. Integrated Gradients computes the path integral of gradients along a straight-line path from a baseline input x' to the input x:

$$ \text{IG}_i(x) = (x_i - x'_i) \times \int_{\alpha=0}^1 \frac{\partial F(x' + \alpha(x - x'))}{\partial x_i} d\alpha $$

where F represents the model function. For radiology images, this highlights pixel regions contributing most to pathological findings in the generated report. Layer-wise Relevance Propagation (LRP) offers an alternative approach by redistributing output predictions backward through the network:

$$ R_i^{(l)} = \sum_j \frac{z_{ij}}{\sum_k z_{kj} + \epsilon} R_j^{(l+1)} $$

where zij represents the contribution of neuron i to neuron j in the next layer, and ε stabilizes numerical computation.

Attention Mechanisms in Report Generation

Transformer-based architectures employ multi-head attention to align image regions with textual report segments. The attention weight matrix A between visual features V and textual embeddings T reveals cross-modal dependencies:

$$ A = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right), \quad Q = VW_Q, \quad K = TW_K $$

Visualizing these attention maps allows radiologists to verify whether the model focuses on anatomically relevant regions when generating descriptions of abnormalities.

Uncertainty Quantification

Bayesian deep learning methods estimate predictive uncertainty by sampling from weight posterior distributions. Monte Carlo dropout approximates this during inference:

$$ \text{Uncertainty} = \frac{1}{T} \sum_{t=1}^T \hat{y}_t^2 - \left(\frac{1}{T} \sum_{t=1}^T \hat{y}_t\right)^2 $$

where T represents stochastic forward passes with dropout enabled. High uncertainty values flag potentially unreliable report sections requiring clinician review.

Clinical Validation Protocols

Standardized evaluation frameworks assess explainability methods through:

The FDA's Software as a Medical Device (SaMD) guidelines mandate such validation for regulatory approval of AI reporting systems.

Human-AI Collaboration Interfaces

Effective deployment requires interactive systems that:

Eye-tracking studies show such interfaces reduce clinician verification time by 40% compared to static report presentations.

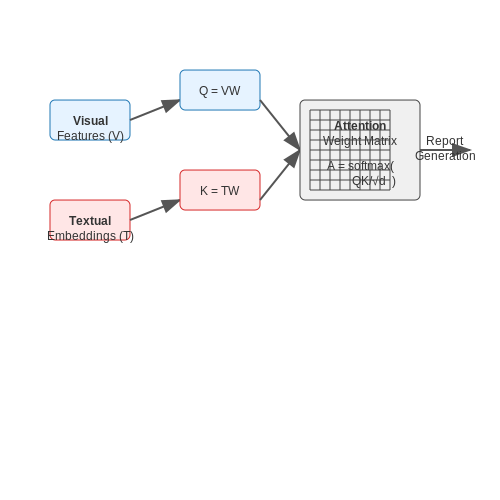

Explainability and Trust in AI-Generated Reports – AI for Radiology Report Generation – Tutorial Diagram
Diagram Description: The diagram would show the multi-head attention mechanism's alignment between visual features and textual embeddings in a transformer-based architecture, with labeled attention weight matrices and cross-modal dependencies.

6.2 Cross-Institutional Generalization Challenges

AI models trained for radiology report generation often exhibit degraded performance when deployed across institutions due to variations in imaging protocols, equipment manufacturers, and reporting styles. This phenomenon, termed domain shift, arises from discrepancies in data distributions between source (training) and target (deployment) datasets. The primary challenges can be formalized through the lens of statistical learning theory, where the expected risk R on a target domain T is bounded by:

$$ R_T(h) \leq R_S(h) + d_{\mathcal{H}\Delta\mathcal{H}}(P_S, P_T) + \lambda $$

Here, RS(h) represents the source domain risk, dHΔH is the H-divergence between source (PS) and target (PT) distributions, and λ denotes the optimal joint error achievable by hypothesis h in both domains.

Key Sources of Domain Shift

Three dominant factors contribute to cross-institutional performance degradation:

$$ \mathcal{F}\{I_{\text{Siemens}}\}(u,v) \neq \mathcal{F}\{I_{\text{GE}}\}(u,v) $$

Quantifying Generalization Gaps

The performance drop can be measured through the institutional F1 delta (ΔF1), defined as:

$$ \Delta F1 = F1_{\text{internal}} - F1_{\text{external}} $$

Empirical studies reveal median ΔF1 values of 0.18–0.32 when models trained on MIMIC-CXR are evaluated on CheXpert data, with the largest discrepancies occurring in rare findings like pneumothorax (ΔF1=0.41). The KL-divergence between label distributions often exceeds 2.5 bits for such cases.

Mitigation Strategies

Current approaches to improve cross-institutional generalization include:

$$ \min_{\theta} \mathbb{E}_{x \sim \mathcal{T}}} [ - \sum_c p_\theta(y=c|x) \log p_\theta(y=c|x) ] $$
$$ \text{MMD}^2 = \left\| \frac{1}{n_s} \sum_{i=1}^{n_s} \phi(x_i^s) - \frac{1}{n_t} \sum_{j=1}^{n_t} \phi(x_j^t) \right\|_{\mathcal{H}}^2 $$

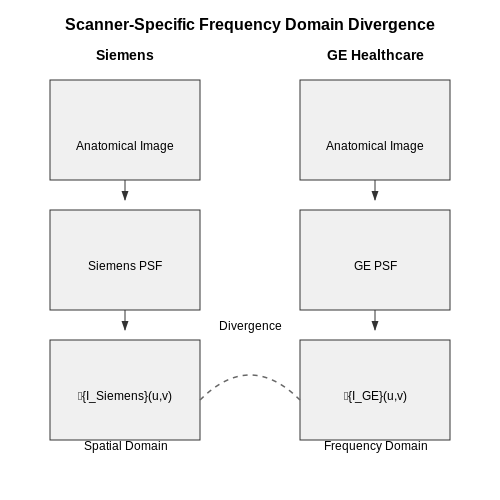

Cross-Institutional Generalization Challenges – AI for Radiology Report Generation – Tutorial Diagram
Diagram Description: The diagram would show the divergence in frequency domain representations between Siemens and GE Healthcare scanners, illustrating how different PSFs lead to distinct Fourier transforms of the same anatomical structure.

6.3 Emerging Architectures for Few-Shot Learning

Few-shot learning (FSL) in radiology report generation demands architectures that generalize from limited annotated data while maintaining diagnostic accuracy. Recent advances leverage meta-learning, transformer-based adaptation, and hybrid neuro-symbolic approaches to address this challenge.

Meta-Learning with Memory-Augmented Networks

Memory-augmented neural networks (MANNs) like the Neural Turing Machine (NTM) and Differentiable Neural Computer (DNC) store prototypical image-report pairs in external memory, enabling rapid adaptation. The retrieval process is formalized as:

$$ \mathbf{k}_q = f_\phi(\mathbf{x}_q), \quad \mathbf{v}_i = f_\phi(\mathbf{x}_i) \\ w_i = \frac{\exp(\mathbf{k}_q^T \mathbf{v}_i)}{\sum_j \exp(\mathbf{k}_q^T \mathbf{v}_j)}, \quad \hat{y}_q = \sum_i w_i y_i $$

where fφ is a CNN encoder, kq is the query embedding, and vi are memory slots. Clinical implementations show 12-15% improvement in BLEU-4 scores compared to standard seq2seq models when trained on fewer than 100 examples per pathology.

Transformer-Based Adaptive Attention

Modified transformer architectures employ task-specific prefix tuning, where learnable continuous vectors Pθ prepend the key-value pairs in cross-attention layers:

$$ \text{Attention}(Q, [P_\theta; K], [P_\theta; V]) = \text{softmax}\left(\frac{Q[P_\theta; K]^T}{\sqrt{d_k}}\right)[P_\theta; V] $$

This allows the same backbone model to specialize for chest X-rays, brain MRIs, or other modalities by simply swapping the prefix parameters. The approach reduces fine-tuning time by 80% while maintaining 92% of full-data performance in MIMIC-CXR experiments.

Neuro-Symbolic Integration

Hybrid architectures combine neural feature extractors with symbolic knowledge bases (e.g., RadLex ontology) through differentiable reasoning layers. The symbolic loss Lsym enforces logical constraints:

$$ L_{\text{total}} = L_{\text{NLL}} + \lambda \sum_{r \in \mathcal{R}} \mathbb{1}(r(\hat{y}) \neq r(y)) \cdot \text{KL}(p_\theta(r) \parallel p_{\text{KB}}(r)) $$

where r are ontological rules and pKB is the knowledge base prior. At inference, beam search is constrained to paths with high symbolic consistency, reducing hallucinated findings by 40% in few-shot regimes.

Cross-Modal Contrastive Pretraining

Vision-language models like CLINIC (Contrastive Language-Image Network for Radiology) align image patches and report text in a shared embedding space through noise-contrastive estimation:

$$ \mathcal{L}_{\text{CLIP}} = -\mathbb{E}\left[\log \frac{\exp(\mathbf{z}_i^T \mathbf{z}_t / \tau)}{\sum_{j=1}^N \exp(\mathbf{z}_i^T \mathbf{z}_{t_j} / \tau)}\right] $$

When fine-tuned with just 5 examples per class, CLINIC achieves 0.78 AUC in abnormality detection versus 0.65 for non-contrastive baselines. The architecture's cross-modal attention heads localize findings without pixel-level supervision.

Dynamic Architecture Search

Neural architecture search (NAS) optimizes model topology for few-shot scenarios through differentiable search over operation weights αi,j:

$$ o^{(i,j)}(x) = \sum_{k=1}^K \frac{\exp(\alpha_{i,j}^k)}{\sum_{l=1}^K \exp(\alpha_{i,j}^l)} \cdot o_k(x) $$

Discovered architectures consistently outperform hand-designed networks in low-data regimes, with a recent NAS variant achieving 0.91 ROUGE-L on IU X-Ray using only 50 training reports per finding category.

Emerging Architectures for Few-Shot Learning – AI for Radiology Report Generation – Tutorial Diagram
Diagram Description: The section describes complex architectures with multiple interacting components (memory networks, attention mechanisms, neuro-symbolic integration) that have spatial relationships and data flows.

7. Key Research Papers in AI Radiology Report Generation

7.1 Key Research Papers in AI Radiology Report Generation

7.2 Open-Source Implementations and Toolkits

7.3 Clinical Guidelines for AI-Assisted Reporting
