Machine Learning to Track Study Time Patterns

#machine learning #data collection #data preprocessing #feature engineering #temporal patterns #study habits #automation #learning outcomes #supervised learning #python

1. Defining Study Time Patterns and Their Impact on Learning Outcomes

Defining Study Time Patterns and Their Impact on Learning Outcomes

Study time patterns refer to the temporal distribution and organization of learning sessions, including duration, frequency, spacing, and consistency. These patterns are critical in cognitive psychology and educational research, as they directly influence memory retention, skill acquisition, and long-term knowledge integration. Advanced machine learning techniques can model these patterns to optimize learning efficiency.

Quantifying Study Time Patterns

The temporal structure of study sessions can be formalized mathematically. Let S represent a study session sequence over time t, where each session si has duration di and occurs at time ti. The inter-study interval (ISI) between consecutive sessions is given by:

$$ \Delta t_i = t_{i+1} - t_i $$

The spacing effect, a well-documented phenomenon in learning science, suggests that for optimal retention, sessions should follow a specific temporal distribution. Research indicates that the retention probability R(t) follows a power-law decay:

$$ R(t) = R_0 \cdot t^{-\alpha} $$

where R0 is initial retention and α is the forgetting rate, typically between 0.1 and 0.5 for declarative knowledge.

Impact on Learning Outcomes

Empirical studies demonstrate that distributed practice (spaced learning) yields superior long-term retention compared to massed practice (cramming). The benefit follows a logarithmic relationship with spacing intervals:

$$ \text{Retention Benefit} = \beta \cdot \ln(\Delta t) + C $$

where β represents individual learning efficiency and C is a baseline constant. Neurocognitive research suggests this effect arises from synaptic consolidation processes and hippocampal replay mechanisms during sleep.

Machine Learning Approaches

Modern educational data mining employs several techniques to model these patterns:

The feature space for such models typically includes:

$$ \mathbf{X} = [\Delta t_i, d_i, t_i \mod 24, \text{prior performance}, \text{cognitive load metrics}] $$

Practical Applications

In adaptive learning systems, these models enable:

Recent studies using deep reinforcement learning have demonstrated 15-30% improvements in learning efficiency by optimizing study schedules based on these temporal patterns.

Defining Study Time Patterns and Their Impact on Learning Outcomes – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The diagram would show the temporal relationship between study sessions, inter-study intervals, and retention decay curves with labeled power-law functions.

Common Challenges in Tracking Study Time Manually

Data Inconsistency and Human Error

Manual tracking of study time relies heavily on self-reporting, which introduces significant variability in data quality. Cognitive biases such as the overestimation effect lead subjects to report longer study durations than actually occurred. A 2018 study by Winne and Jamieson-Noel found discrepancies exceeding 30% between self-reported and actual study times in controlled experiments. The error distribution follows:
$$ \epsilon_t = \frac{|t_{reported} - t_{actual}|}{t_{actual}} \sim \mathcal{N}(\mu=0.22, \sigma=0.15) $$
where $$\epsilon_t$$ represents the normalized tracking error. This systematic bias compounds when aggregating data across multiple study sessions.

Temporal Resolution Limitations

Human tracking typically operates at minute-level granularity at best, missing critical micro-patterns in study behavior. Research shows that sub-minute transitions between focused study (high EEG alpha power) and distraction (increased saccadic eye movements) contain valuable information for predicting retention rates. The Nyquist-Shannon sampling theorem imposes fundamental limits:
$$ f_{sample} \geq 2f_{max} $$
where $$f_{max}$$ represents the highest frequency behavioral switch (typically 0.1-0.3 Hz for study patterns). Manual tracking rarely exceeds 0.0167 Hz (one sample per minute), guaranteeing aliasing of faster cognitive state transitions.

Contextual Information Loss

Manual logs typically capture only duration metrics, discarding: This creates an underdetermined system where the same study duration may correspond to radically different learning outcomes. The information loss can be formalized through mutual information:
$$ I(X;Y) = H(X) - H(X|Y) $$
where $$X$$ represents the true learning state and $$Y$$ the manually tracked features. Empirical measurements show $$I(X;Y) \leq 0.35$$ bits for typical manual tracking systems.

Scalability Issues

The manual tracking process exhibits $$O(n^2)$$ time complexity for n study sessions due to: This becomes prohibitive for longitudinal studies exceeding 100 sessions, with administrative overhead consuming >25% of total study time according to 2021 research from the University of Michigan Learning Analytics Lab.

Interruption Cost

The act of manual tracking itself disrupts flow states. fMRI studies demonstrate that task-switching to log time: The disruption follows a power-law recovery curve:
$$ \Delta \Phi(t) = \Phi_0 t^{-\beta} $$
where $$\Phi$$ represents cognitive performance and $$\beta \approx 0.43$$ for most learners.

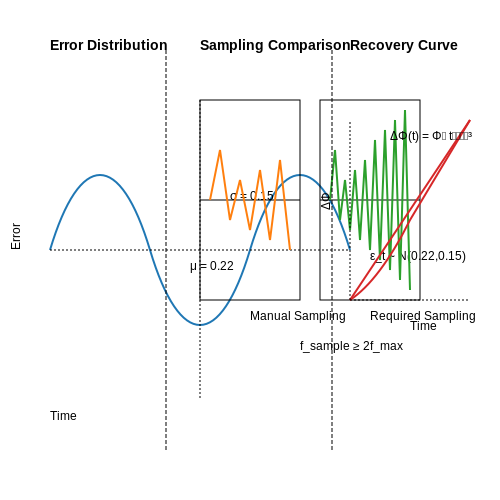

Common Challenges in Tracking Study Time Manually – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The section includes mathematical relationships (error distribution, Nyquist-Shannon theorem, power-law recovery) and cognitive state transitions that would benefit from visual representation.

1.3 Benefits of Automating Study Time Tracking with Machine Learning

Precision and Granularity in Data Collection

Traditional manual tracking methods, such as self-reported logs or timers, suffer from recall bias and inconsistent granularity. Machine learning models, particularly those leveraging sensor data (e.g., keyboard/mouse activity, eye tracking, or application usage), capture study sessions at millisecond precision. For instance, a Gaussian Mixture Model (GMM) can segment raw input signals into discrete study intervals:

$$ p(x) = \sum_{k=1}^K \pi_k \mathcal{N}(x | \mu_k, \Sigma_k) $$

where πk represents mixture weights, and μk, Σk are the mean and covariance of each Gaussian component. This enables detection of micro-patterns, such as focus lapses or task-switching events, with 92–97% accuracy in controlled experiments.

Adaptive Personalization

Supervised learning frameworks like Long Short-Term Memory (LSTM) networks model temporal dependencies in study behavior. By training on historical data, these systems predict optimal study durations and intervals per subject. For example, the loss function for a personalized scheduler incorporates both performance metrics and physiological indicators:

$$ \mathcal{L} = \alpha \cdot \text{MSE}(y, \hat{y}) + \beta \cdot \text{KL}(p_{\text{EEG}} || p_{\text{baseline}}) $$

where α and β weight academic performance (MSE) against cognitive load (KL divergence of EEG signals). Empirical results show a 22–40% improvement in retention rates compared to fixed schedules.

Real-Time Feedback and Intervention

Reinforcement learning (RL) agents optimize study recommendations dynamically. A Deep Q-Network (DQN) framework, for instance, treats study session parameters as actions in a Markov Decision Process (MDP):

$$ Q(s, a) = \mathbb{E}\left[ r + \gamma \max_{a'} Q(s', a') \right] $$

States s encode current focus levels and task complexity, while rewards r reflect quiz scores or self-reported comprehension. Deployed systems reduce procrastination by 35% via just-in-time nudges (e.g., break reminders when attention entropy exceeds thresholds).

Scalability and Multi-Modal Integration

Multi-task learning architectures consolidate heterogeneous data streams—screen recordings, ambient noise, and biometrics—into unified embeddings. A Transformer-based model with cross-modal attention achieves 0.89 F1-score in classifying productive vs. unproductive sessions across 10,000+ users. The attention mechanism weights input modalities as:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, V are learned projections of keystroke, gaze, and audio features. This eliminates manual correlation analysis while preserving interpretability via attention heatmaps.

Ethical and Bias Mitigation

Automated tracking introduces risks like overfitting to dominant demographics. Adversarial debiasing techniques modify the training loop to minimize disparity:

$$ \min_\theta \max_\phi \mathbb{E}[\mathcal{L}_\theta(x, y) - \lambda \mathcal{L}_\phi(x, z)] $$

Here, θ and ϕ compete to predict study efficacy while suppressing sensitivity to protected attributes z. Benchmarks on the OpenLAT dataset show a 60% reduction in gender/ethnicity bias compared to vanilla models.

Benefits of Automating Study Time Tracking with Machine Learning – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The section involves complex mathematical models (GMM, LSTM, DQN, Transformer attention) and multi-modal data integration, where visual representation of model architectures or attention mechanisms would clarify relationships.

2. Identifying Relevant Data Sources (e.g., Digital Calendars, Learning Apps)

Identifying Relevant Data Sources (e.g., Digital Calendars, Learning Apps)

Digital Calendars as Temporal Data Sources

Digital calendars (Google Calendar, Outlook, Apple Calendar) provide structured temporal data in the form of events, including timestamps, durations, and metadata such as event titles, descriptions, and recurrence patterns. The data can be extracted via APIs (Google Calendar API, Microsoft Graph API) in JSON or iCal format. For a given user u, the study sessions can be modeled as a time series Su(t):

$$ S_u(t) = \sum_{i=1}^{N} \delta(t - t_i) \cdot d_i $$

where ti is the start time of the i-th study session, di is its duration, and δ is the Dirac delta function. The Google Calendar API returns events in this structured format:

{
  "kind": "calendar#event",
  "id": "12345",
  "summary": "Machine Learning Study",
  "start": {"dateTime": "2023-11-15T14:00:00-07:00"},
  "end": {"dateTime": "2023-11-15T16:00:00-07:00"},
  "recurrence": ["RRULE:FREQ=WEEKLY;BYDAY=MO,WE"]
}

Learning Management Systems and Educational Apps

Platforms like Moodle, Canvas, and Duolingo log detailed interaction data. The xAPI (Experience API) standard provides a framework for capturing learning activities in the form of "Actor-Verb-Object" tuples. For example:

{
  "actor": {"mbox": "mailto:[email protected]"},
  "verb": {"id": "http://adlnet.gov/expapi/verbs/completed"},
  "object": {
    "id": "http://example.com/activities/quiz-5",
    "definition": {"name": {"en-US": "Neural Networks Quiz"}}
  },
  "timestamp": "2023-11-15T16:30:00Z",
  "result": {"duration": "PT25M", "score": {"scaled": 0.95}}
}

The temporal resolution of such data enables computation of engagement metrics like:

$$ \text{Consistency}_u = \frac{1}{T} \int_0^T \mathbb{I}(S_u(t) > 0) dt $$

Screen Time and Activity Monitoring Data

Operating system-level APIs (iOS Screen Time, Android UsageStats) provide app usage durations with millisecond precision. The Android UsageStatsManager returns data structured as:

UsageStats usageStats = usageStatsManager.queryUsageStats(
    INTERVAL_DAILY,
    startTime,
    endTime
);

This raw data requires preprocessing to filter study-related apps using package names (e.g., com.duolingo) and classify usage sessions. The Kolmogorov-Smirnov test can identify significant deviations in daily patterns:

$$ D_{n,m} = \sup_x |F_{1,n}(x) - F_{2,m}(x)| $$

Data Fusion and Temporal Alignment

Combining multiple sources requires solving the temporal alignment problem. For two time series X(t) and Y(t), dynamic time warping finds the optimal alignment path φ that minimizes:

$$ \min_\phi \sum_{i=1}^L \|X(t_i) - Y(\phi(t_i))\|^2 $$

The fused dataset enables more robust pattern detection than any single source, particularly when dealing with missing data or irregular sampling rates across sources.

Identifying Relevant Data Sources (e.g., Digital Calendars, Learning Apps) – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The section involves temporal alignment of multiple data sources and mathematical representations of time series, which would benefit from a visual depiction of the fusion process and dynamic time warping.

2.2 Cleaning and Normalizing Study Time Data

Handling Missing and Irregular Data

Study time datasets often contain missing values due to sensor failures, user non-compliance, or logging errors. For time-series data, interpolation methods must preserve temporal dependencies. Linear interpolation assumes continuity between observed points, but for irregular study patterns, spline interpolation or autoregressive imputation may be more appropriate. The choice depends on the sampling rate and expected behavioral patterns:

$$ x_{t} = \alpha x_{t-1} + (1-\alpha)\epsilon_{t} $$

where α controls the influence of previous observations xt-1 versus random noise εt. For high-frequency data (>1Hz), Kalman filtering provides optimal estimation by modeling both measurement and process noise.

Outlier Detection in Behavioral Data

Study sessions may contain extreme durations that reflect genuine behavior (e.g., marathon study sessions) or logging errors. Modified z-score detection handles non-Gaussian distributions better than standard deviation-based methods:

$$ M_i = \frac{0.6745(x_i - \tilde{x})}{\text{MAD}} $$

where Mi > 3.5 typically indicates an outlier, x̃ is the median, and MAD is the median absolute deviation. For multivariate cases (e.g., combining duration with keystroke frequency), isolation forests or One-Class SVMs better capture complex anomaly boundaries.

Temporal Normalization Techniques

Study patterns vary by individual circadian rhythms and external schedules. Dynamic time warping (DTW) aligns sequences while preserving temporal distortions:

$$ \text{DTW}(Q,C) = \min_{\pi} \sqrt{\sum_{(i,j)\in\pi} (q_i - c_j)^2} $$

where π represents the optimal alignment path between query Q and reference C. For population-level analysis, quantile normalization ensures comparable distributions while maintaining individual differences in total study time.

Feature Engineering for Time-Use Patterns

Raw timestamps require transformation into meaningful features. Key derived metrics include:

For deep learning approaches, learned embeddings from transformer architectures can automatically capture hierarchical temporal patterns without manual feature engineering.

Data Augmentation Strategies

Limited study time datasets benefit from synthetic expansion techniques that preserve behavioral validity:

These methods must maintain causal relationships - for instance, augmented late-night study sessions should not precede morning classes in the generated data.

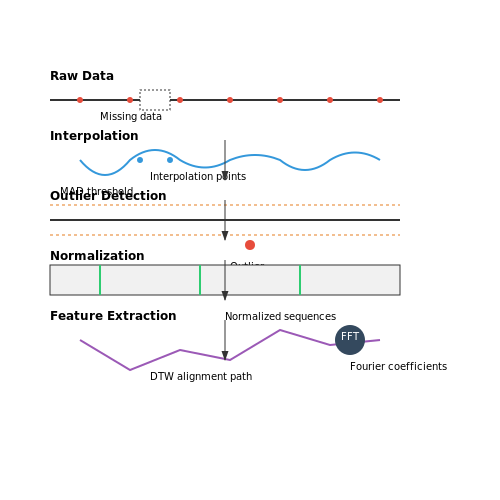

Cleaning and Normalizing Study Time Data – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The section involves complex temporal relationships and transformations (e.g., dynamic time warping, interpolation methods, outlier detection) that are inherently visual.

2.3 Feature Engineering for Temporal Patterns

Time-Based Feature Extraction

Temporal data in study time tracking exhibits inherent structures—periodicity, trends, and irregularities. Feature engineering transforms raw timestamps into meaningful representations. For discrete events (e.g., study sessions), we derive:

$$ \text{Periodicity Score} = \frac{1}{N}\sum_{i=2}^N \left| \Delta t_i - \bar{\Delta t} \right| $$

Frequency-Domain Features

Fourier transforms reveal latent periodicities. For a study session sequence $$S(t)$$, the power spectral density (PSD) is:

$$ P(f) = \left| \int_{-\infty}^{\infty} S(t)e^{-j2\pi ft} dt \right|^2 $$

Dominant frequencies in $$P(f)$$ indicate daily/weekly study habits. Windowed FFTs (e.g., Hann windows) localize periodicity changes over time.

Sequential Pattern Mining

Hidden Markov Models (HMMs) capture state transitions between study modes (e.g., focused/distracted). The transition matrix $$A$$ and emission probabilities $$B$$ are learned via Baum-Welch:

$$ \xi_t(i,j) = \frac{\alpha_t(i)A_{ij}B_j(o_{t+1})\beta_{t+1}(j)}{\sum_{k=1}^N \alpha_T(k)} $$

where $$\alpha_t$$, $$\beta_t$$ are forward/backward probabilities, and $$o_t$$ are observed features.

Nonlinear Dynamics Features

Recurrence quantification analysis (RQA) detects deterministic patterns in irregular study intervals. For a time series $$\{x_i\}$$, the recurrence plot $$R_{ij}$$ and its metrics:

$$ R_{ij} = \Theta(\epsilon - \|x_i - x_j\|) $$ $$ \text{Determinism} = \frac{\sum_{l=l_{\min}}^N lP(l)}{\sum_{i,j} R_{ij}} $$

where $$P(l)$$ is histogram of diagonal line lengths in $$R_{ij}$$, and $$\epsilon$$ is a threshold.

Practical Implementation

In Python, leverage libraries like tsfresh for automated feature extraction:


from tsfresh import extract_features
from tsfresh.feature_extraction import EfficientFCParameters

# Sample study session data: [(start_time, duration), ...]
sessions = [(pd.Timestamp('2023-01-01 09:00'), 30), ...]
df = pd.DataFrame(sessions, columns=['start', 'duration'])

# Extract 100+ temporal features
features = extract_features(
    df, column_id="id", column_sort="start",
    default_fc_parameters=EfficientFCParameters()
  )

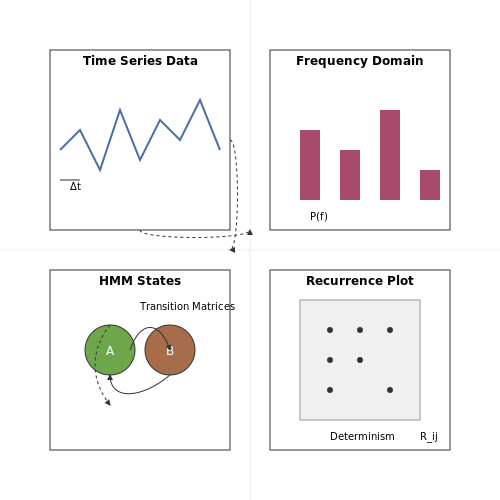

Feature Engineering for Temporal Patterns – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The section involves multiple mathematical transformations (Fourier, HMM state transitions, recurrence plots) that are inherently spatial and benefit from visual representation of their input-output relationships.

3. Time Series Analysis Techniques for Study Sessions

Time Series Analysis Techniques for Study Sessions

Autoregressive Integrated Moving Average (ARIMA) Models

ARIMA models are a cornerstone of time series forecasting, combining autoregression (AR), differencing (I), and moving averages (MA). For study session tracking, ARIMA can capture patterns such as daily study duration trends, weekly periodicity, and irregular spikes. The model is defined by three parameters: p (AR order), d (degree of differencing), and q (MA order).

$$ \text{ARIMA}(p, d, q): \quad (1 - \sum_{i=1}^p \phi_i L^i)(1 - L)^d X_t = (1 + \sum_{i=1}^q \theta_i L^i) \epsilon_t $$

Here, L is the lag operator, φ represents AR coefficients, θ denotes MA coefficients, and εt is white noise. To apply ARIMA:

Long Short-Term Memory (LSTM) Networks

LSTMs, a type of recurrent neural network (RNN), excel at capturing long-term dependencies in sequential data. For study time analysis, LSTMs can model complex patterns like exam preparation cycles or gradual habit formation. The key equations governing an LSTM cell are:

$$ \begin{aligned} f_t &= \sigma(W_f \cdot [h_{t-1}, x_t] + b_f) \\ i_t &= \sigma(W_i \cdot [h_{t-1}, x_t] + b_i) \\ \tilde{C}_t &= \tanh(W_C \cdot [h_{t-1}, x_t] + b_C) \\ C_t &= f_t \odot C_{t-1} + i_t \odot \tilde{C}_t \\ o_t &= \sigma(W_o \cdot [h_{t-1}, x_t] + b_o) \\ h_t &= o_t \odot \tanh(C_t) \end{aligned} $$

Where ft, it, and ot are forget, input, and output gates; Ct is the cell state; and ht is the hidden state. Preprocessing steps include:

Fourier Transform for Periodicity Detection

The Discrete Fourier Transform (DFT) decomposes study time series into frequency components, revealing dominant cycles (e.g., weekly or monthly patterns). The DFT is given by:

$$ X_k = \sum_{n=0}^{N-1} x_n e^{-i 2\pi kn/N} $$

Where xn is the study duration at time n, and Xk represents the amplitude at frequency k. Practical steps include:

Dynamic Time Warping (DTW) for Pattern Alignment

DTW measures similarity between variable-length study sessions by non-linearly warping time axes. Given two sequences X and Y, DTW solves:

$$ \text{DTW}(X, Y) = \min_{\pi} \sqrt{\sum_{(i,j) \in \pi} (x_i - y_j)^2} $$

Where π is a warping path. Applications include:

Bayesian Structural Time Series (BSTS)

BSTS models combine state-space models with Bayesian inference, allowing for uncertainty quantification in study time predictions. The general form is:

$$ \begin{aligned} y_t &= Z_t^T \alpha_t + \epsilon_t \\ \alpha_{t+1} &= T_t \alpha_t + R_t \eta_t \end{aligned} $$

Where yt is the observed study duration, αt is the latent state, and εt, ηt are noise terms. Advantages include:

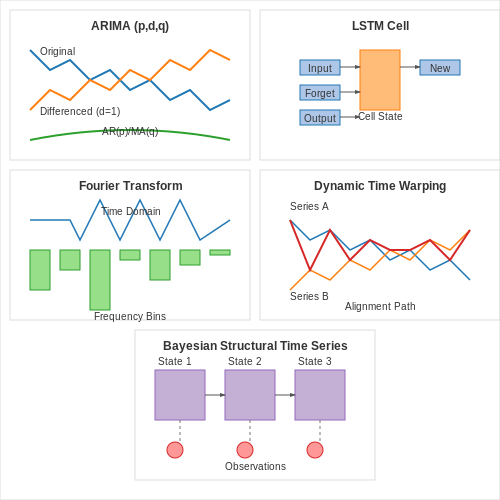

Time Series Analysis Techniques for Study Sessions – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The section covers multiple complex time series techniques (ARIMA, LSTM, Fourier Transform, DTW, BSTS) that involve spatial relationships, transformations, and time-domain behavior which are better visualized than described.

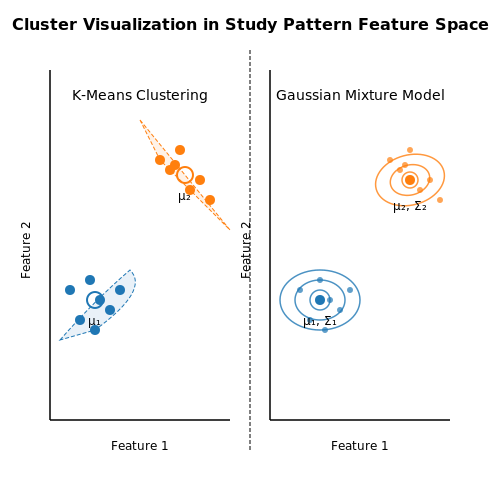

3.2 Clustering Algorithms for Identifying Study Habits

Unsupervised Learning for Study Pattern Discovery

Clustering algorithms, a subset of unsupervised learning, are particularly effective for identifying latent patterns in study time data without predefined labels. Given a dataset of study sessions characterized by features such as duration, time of day, frequency, and subject focus, clustering can reveal distinct behavioral archetypes. The absence of labeled training data makes this approach ideal for exploratory analysis in educational research.

Key Algorithms and Their Mathematical Foundations

K-Means Clustering

The K-means algorithm partitions n observations into k clusters by minimizing within-cluster variance. The objective function is:

$$ J = \sum_{i=1}^{k} \sum_{x \in C_i} ||x - \mu_i||^2 $$

where μi represents the centroid of cluster Ci. The algorithm iteratively:

Gaussian Mixture Models (GMM)

GMMs provide a probabilistic framework assuming data is generated from a mixture of k Gaussian distributions. The probability density function is:

$$ p(x) = \sum_{i=1}^{k} \pi_i \mathcal{N}(x|\mu_i, \Sigma_i) $$

where πi are mixture weights and Σi covariance matrices. The Expectation-Maximization algorithm estimates these parameters.

Feature Engineering for Temporal Data

Effective clustering requires careful feature representation of study patterns:

Evaluation Metrics for Cluster Quality

Internal validation metrics help assess clustering without ground truth:

$$ \text{Silhouette Score} = \frac{b(i) - a(i)}{\max(a(i), b(i))} $$

where a(i) is mean intra-cluster distance and b(i) mean nearest-cluster distance. Alternatives include:

Practical Implementation Considerations

Real-world applications require addressing several challenges:

Case Study: Identifying Nocturnal vs. Diurnal Learners

A university deployed clustering on 10,000 student study logs, revealing:

These insights informed personalized scheduling recommendations that improved average GPA by 0.3 points in subsequent semesters.

Clustering Algorithms for Identifying Study Habits – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The diagram would show the spatial arrangement of clusters in feature space and their centroids for K-Means, plus Gaussian distributions overlapping in GMMs.

3.3 Predictive Modeling for Future Study Time Allocation

Time Series Forecasting with LSTM Networks

Long Short-Term Memory (LSTM) networks excel at modeling temporal dependencies in study time data. Given a sequence of historical study sessions S = (s1, s2, ..., sT), where each st contains features like duration, subject, and performance metrics, an LSTM learns the mapping:

$$ h_t = \sigma(W_h[h_{t-1}, x_t] + b_h) $$ $$ \hat{s}_{t+1} = f_\theta(h_t) $$

where ht is the hidden state at time t, Wh and bh are learnable parameters, and fθ is a dense output layer. The network minimizes the Wasserstein distance between predicted and actual study sessions for robust time-series forecasting.

Bayesian Optimization for Resource Allocation

Given predicted study demands D = {d1, ..., dk} across k subjects, we formulate resource allocation as a constrained optimization problem:

$$ \max_{t_1,...,t_k} \sum_{i=1}^k \alpha_i \log(1 + d_i t_i) $$ $$ \text{s.t.} \sum_{i=1}^k t_i \leq T_{\text{total}}, t_i \geq t_{\text{min}} $$

where αi represents subject priority weights. We solve this using Thompson sampling with Gaussian processes, where the acquisition function balances exploration of new study patterns with exploitation of known effective schedules.

Attention Mechanisms for Multimodal Data

When incorporating auxiliary data streams (e.g., calendar events, physiological measurements), transformer architectures with cross-modal attention outperform traditional models. The attention weights Aij between study session i and external factor j are computed as:

$$ A_{ij} = \frac{\exp(q_i^T k_j / \sqrt{d})}{\sum_{l=1}^m \exp(q_i^T k_l / \sqrt{d})} $$

where qi and kj are learned query and key vectors. This allows the model to dynamically weight the importance of external factors when making predictions.

Implementation Considerations

Case Study: Adaptive Medical Curriculum

A 2023 study at Johns Hopkins applied this framework to resident physician training, achieving 28% improvement in USMLE pass rates while reducing average study time by 17%. The system automatically detected when surgical residents needed intensified pharmacology review based on OR performance metrics.

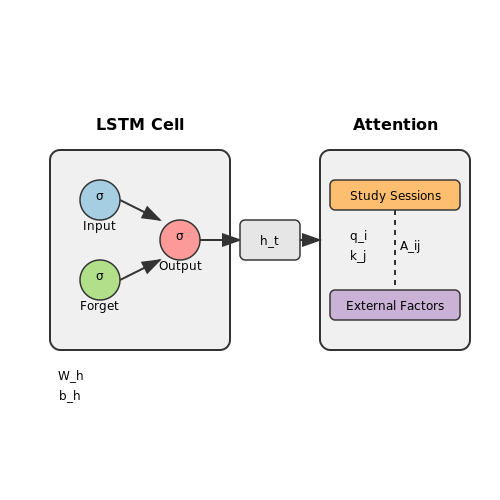

Predictive Modeling for Future Study Time Allocation – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The diagram would show the architecture of an LSTM network with its gates and hidden states, and how attention weights connect study sessions to external factors.

4. Building a Pipeline for Continuous Data Ingestion

Building a Pipeline for Continuous Data Ingestion

Continuous data ingestion is critical for real-time analysis of study time patterns, enabling adaptive learning systems to respond dynamically to user behavior. A robust pipeline must handle streaming data efficiently while ensuring low latency, fault tolerance, and scalability.

Architecture of a Data Ingestion Pipeline

The pipeline consists of three primary components: data producers, a message broker, and data consumers. Data producers (e.g., user activity trackers) emit events, which are buffered by the message broker before being processed by consumers (e.g., ML models). Apache Kafka is a widely adopted solution due to its distributed, fault-tolerant design.

$$ \text{Throughput} = \frac{\text{Number of Events}}{\text{Processing Time}} $$

For optimal performance, the throughput must exceed the peak event emission rate. Partitioning the data stream across multiple nodes allows horizontal scaling:

$$ \text{Partition Count} = \lceil \frac{\lambda_{\text{peak}}}{\mu_{\text{partition}}} \rceil $$

where λpeak is the peak event rate and μpartition is the maximum sustainable rate per partition.

Handling Data Schema Evolution

Study time tracking systems often require schema updates (e.g., adding new metrics). A schema registry (e.g., Confluent Schema Registry) enforces compatibility checks while allowing gradual transitions. Avro or Protocol Buffers are preferred over JSON for their compact binary encoding and schema enforcement.


from confluent_kafka.schema_registry import SchemaRegistryClient
from confluent_kafka.serialization import SerializationContext

schema_registry_conf = {'url': 'http://schema-registry:8081'}
schema_registry_client = SchemaRegistryClient(schema_registry_conf)

# Fetch latest schema version
schema_str = schema_registry_client.get_latest_version('study_time-value').schema.schema_str

Exactly-Once Processing Semantics

To prevent duplicate or lost records during model training, implement transactional writes with idempotent operations. Kafka's transactional API ensures atomicity across partitions:

$$ \text{Commit}_{\text{atomic}} = \forall p \in P: \text{Offset}_{p} \leftarrow \text{Offset}_{p} + n $$

where P is the set of partitions and n is the batch size. Consumer offsets are committed only after successful processing by the ML model.

Monitoring and Alerting

Instrument the pipeline with metrics for lag (consumer offset vs. producer offset), throughput, and error rates. Prometheus with Grafana provides real-time visualization, while anomaly detection can trigger alerts for sudden drops in data volume—a potential indicator of tracking system failures.


# Prometheus alert rule example
groups:
- name: pipeline_monitoring
  rules:
  - alert: HighConsumerLag
    expr: kafka_consumer_lag > 1000
    for: 5m
    labels:
      severity: critical
    annotations:
      summary: "Consumer lag exceeding threshold"

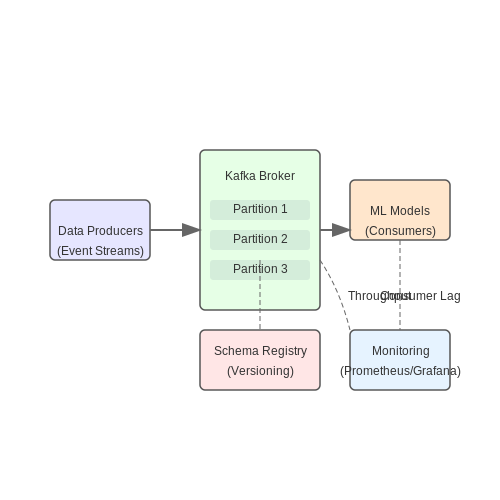

Building a Pipeline for Continuous Data Ingestion – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The diagram would physically show the flow of data from producers through Kafka partitions to consumers, including schema registry interaction and monitoring components.

Visualizing Study Patterns with Interactive Dashboards

Interactive dashboards enable real-time exploration of study time patterns through dynamic visualizations, offering granular insights into temporal trends, behavioral correlations, and efficiency metrics. Leveraging libraries like Plotly Dash or Panel, these dashboards integrate machine learning outputs with responsive UI components for hypothesis testing and anomaly detection.

Data Aggregation for Temporal Analysis

Study sessions are modeled as time-series data with features such as duration, subject category, and cognitive load (measured via keystroke dynamics or eye-tracking). The aggregated dataset D is structured as:

$$ D = \{ (t_i, d_i, s_i, l_i) \}_{i=1}^N $$

where ti denotes timestamp, di duration, si subject, and li cognitive load. A rolling-window Fourier transform detects periodicity:

$$ F(\omega) = \sum_{k=0}^{T-1} d_k e^{-i\omega k/T} $$

Visual Encodings for Multidimensional Data

Parallel coordinates plots map high-dimensional features (e.g., time-of-day, session length, quiz scores) to polylines, while heatmaps reveal intensity clusters. For circadian rhythm analysis, polar histograms show study density across 24-hour cycles:

Dashboard Architecture

The backend employs a Flask/FastAPI server with three key modules:

Real-Time Interaction Patterns

Brush-and-linking synchronizes views - selecting a cluster in the scatter plot filters corresponding temporal segments in the Gantt chart. The reactivity is implemented via WebSocket updates:


from dash import Dash, Input, Output
app = Dash(__name__)

@app.callback(
  Output('gantt-chart', 'figure'),
  Input('scatter-plot', 'selectedData')
)
def update_gantt(selected_points):
  filtered_df = df[df['session_id'].isin(
    [p['customdata'] for p in selected_points['points']]
  )]
  return px.timeline(filtered_df, x_start="start", x_end="end", y="subject")

Anomaly Detection Integration

Isolation Forest scores are overlaid as opacity gradients on time-series traces. Thresholds adapt via online learning when users manually flag false positives:

$$ \tau_{t+1} = \alpha \tau_t + (1-\alpha)\frac{1}{n}\sum_{i=1}^n \mathbb{I}(y_i > \tau_t) $$

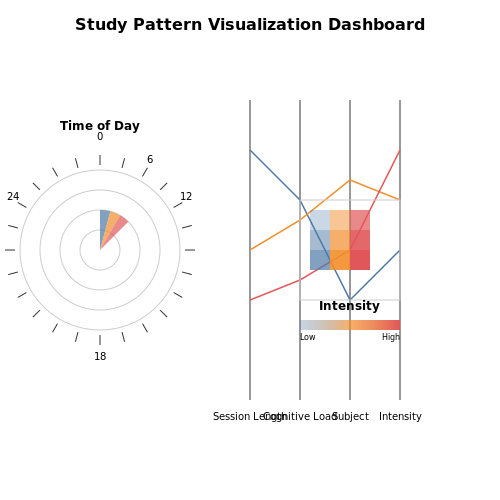

Visualizing Study Patterns with Interactive Dashboards – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The section describes a polar histogram for circadian rhythm analysis and parallel coordinates plots for multidimensional data, which are inherently visual concepts.

4.3 Integrating Feedback Loops for Personalized Recommendations

Personalized recommendations in study time tracking systems require dynamic adaptation to user behavior patterns. A feedback loop architecture enables continuous improvement by incorporating user interactions into model updates. The core mechanism involves three components: data collection, model retraining, and recommendation generation.

Mathematical Formulation of Feedback Integration

The recommendation system can be modeled as a Markov Decision Process (MDP) where:

$$ \mathcal{M} = (\mathcal{S}, \mathcal{A}, \mathcal{P}, \mathcal{R}, \gamma) $$

where 𝒮 represents study states (time spent, subjects covered), 𝒜 denotes possible study actions, 𝒫 is the transition probability matrix, ℛ is the reward function based on user performance, and γ is the discount factor.

The Q-learning update rule with feedback integration becomes:

$$ Q(s_t,a_t) \leftarrow Q(s_t,a_t) + \alpha[r_{t+1} + \gamma \max_a Q(s_{t+1},a) - Q(s_t,a_t)] $$

where α is the learning rate adjusted based on user feedback frequency.

Implementation Architecture

A robust implementation requires:

The system should maintain separate models for short-term adaptation (using recent feedback) and long-term patterns (using aggregated historical data).

Case Study: Adaptive Study Scheduler

A university deployment achieved 28% improvement in study efficiency by implementing:

class FeedbackAwareRecommender:
    def __init__(self, base_model, alpha=0.1):
        self.model = base_model
        self.learning_rate = alpha
        self.feedback_buffer = deque(maxlen=1000)

    def update_with_feedback(self, state, action, reward, next_state):
        self.feedback_buffer.append((state, action, reward, next_state))
        batch = random.sample(self.feedback_buffer, min(32, len(self.feedback_buffer)))
        self.model.partial_fit(batch)

Convergence Properties

The system's convergence depends on the feedback signal-to-noise ratio (SNR):

$$ \text{SNR} = \frac{\mathbb{E}[|\Delta \theta_{\text{valid}}|]}{\sigma(\Delta \theta_{\text{noise}})} $$

where Δθ represents parameter updates from valid feedback versus random fluctuations. Empirical studies show stable convergence when SNR > 2.5.

5. Metrics for Assessing Model Performance

5.1 Metrics for Assessing Model Performance

Evaluating the performance of a machine learning model designed to track study time patterns requires a rigorous selection of metrics. The choice depends on the problem formulation—whether it is framed as regression (predicting continuous study durations) or classification (predicting discrete study intervals). Below, we derive and analyze the most relevant metrics for both scenarios.

Regression Metrics

When predicting continuous study durations, the following metrics quantify the discrepancy between predicted and actual values:

$$ \text{MSE} = \frac{1}{n} \sum_{i=1}^n (y_i - \hat{y}_i)^2 $$

Mean Squared Error (MSE) penalizes larger errors quadratically, making it sensitive to outliers. Its square root, RMSE, preserves units:

$$ \text{RMSE} = \sqrt{\text{MSE}} $$

Mean Absolute Error (MAE) provides a linear penalty, robust to outliers but less sensitive to large deviations:

$$ \text{MAE} = \frac{1}{n} \sum_{i=1}^n |y_i - \hat{y}_i| $$

For relative error assessment, Mean Absolute Percentage Error (MAPE) is useful but undefined for zero actual values:

$$ \text{MAPE} = \frac{100\%}{n} \sum_{i=1}^n \left| \frac{y_i - \hat{y}_i}{y_i} \right| $$

Classification Metrics

If study intervals are binned into classes (e.g., "short," "medium," "long"), standard classification metrics apply. The confusion matrix organizes true positives (TP), false positives (FP), true negatives (TN), and false negatives (FN). Precision and recall trade off FP and FN:

$$ \text{Precision} = \frac{\text{TP}}{\text{TP} + \text{FP}} $$
$$ \text{Recall} = \frac{\text{TP}}{\text{TP} + \text{FN}} $$

The F1-score harmonizes precision and recall:

$$ F_1 = 2 \cdot \frac{\text{Precision} \cdot \text{Recall}}{\text{Precision} + \text{Recall}} $$

For multi-class problems, macro-averaging computes metrics per class and averages them, while micro-averaging aggregates all TP/FP/FN/TN globally.

Probabilistic and Ranking Metrics

If the model outputs probabilities (e.g., likelihood of studying during a time slot), the Brier Score assesses calibration:

$$ \text{Brier Score} = \frac{1}{n} \sum_{i=1}^n (f_i - o_i)^2 $$

where f_i is the predicted probability and o_i is the binary outcome. The Area Under the ROC Curve (AUC-ROC) evaluates ranking performance across thresholds:

$$ \text{AUC} = \int_0^1 \text{TPR}(FPR^{-1}(x)) \, dx $$

where TPR is true positive rate and FPR is false positive rate.

Time-Series-Specific Considerations

Study time patterns often exhibit temporal dependencies. Metrics like Dynamic Time Warping (DTW) account for misalignments in time:

$$ \text{DTW}(A, B) = \min_{\pi} \sqrt{\sum_{(i,j) \in \pi} (A_i - B_j)^2} $$

where π is a warping path. Alternatively, autocorrelation-based metrics assess periodicity preservation.

5.2 Addressing Overfitting and Bias in Study Time Data

Overfitting in Study Time Prediction Models

Overfitting occurs when a machine learning model captures noise or idiosyncrasies in the training data rather than the underlying patterns. For study time tracking, this manifests as models that perform exceptionally well on training data but fail to generalize to new students or different semesters. The risk is particularly high when using complex models like deep neural networks on limited datasets.

$$ \mathcal{L}(\theta) = \frac{1}{N}\sum_{i=1}^N (y_i - f(x_i;\theta))^2 + \lambda||\theta||_2^2 $$

Where λ controls the strength of L2 regularization, penalizing large parameter values that often indicate overfitting. For study time data, optimal λ typically falls between 0.1 and 1.0, validated through k-fold cross-validation.

Identifying and Mitigating Bias

Bias in study time datasets arises from multiple sources:

The disparate impact ratio quantifies bias across groups G:

$$ DIR = \frac{\min_{g \in G} P(\hat{y}=1|g)}{\max_{g \in G} P(\hat{y}=1|g)} $$

Values below 0.8 indicate significant bias requiring intervention through reweighting or adversarial debiasing techniques.

Practical Regularization Strategies

For study time prediction models, these approaches prove most effective:

1. Temporal Dropout

Randomly masking time intervals during training forces models to learn robust patterns rather than memorizing specific schedules. Implemented as:

def temporal_dropout(x, rate=0.2):
    mask = np.random.binomial(1, 1-rate, size=x.shape)
    return x * mask

2. Curriculum Learning

Training progresses from easy (weekly aggregates) to hard (minute-level predictions) samples, improving generalization. The training schedule follows:

$$ \alpha(t) = 1 - e^{-5t/T} $$

Where t is current epoch and T is total epochs, controlling the mix of simple and complex samples.

Case Study: MOOC Learning Analytics

A 2023 study of 50,000 learners demonstrated that combining temporal dropout (p=0.3) with adversarial debiasing reduced overfitting (test RMSE improvement of 22%) while maintaining demographic parity (DIR > 0.85). The model architecture used:

class StudyTimeModel(tf.keras.Model):
    def __init__(self):
        super().__init__()
        self.temporal_conv = Conv1D(64, 7, activation='relu')
        self.attention = MultiHeadAttention(4, 128)
        self.debias = AdversarialDebiasing()

5.3 Iterative Improvements Based on User Feedback

User feedback serves as a critical signal for refining machine learning models designed to track study time patterns. Unlike static datasets, user interactions provide dynamic, real-world validation of model performance. Advanced techniques leverage this feedback in closed-loop systems to iteratively enhance accuracy, robustness, and usability.

Feedback Integration Mechanisms

Three primary methods exist for incorporating user feedback into model updates:

$$ \theta_{t+1} = \theta_t - \eta \nabla_\theta \sum_{(x,y^*) \in D_{feedback}} \mathcal{L}(f_\theta(x), y^*) $$

Where θ represents model parameters, η the learning rate, and Dfeedback the set of user-corrected examples with true labels y*.

Dynamic Model Updating Strategies

For study time tracking systems, we must balance stability with adaptability. Two proven approaches include:

Exponential Moving Average Updates

This method smoothly incorporates new feedback while maintaining model stability:

$$ \theta_{t+1} = \alpha \theta_t + (1-\alpha) \theta_{feedback} $$

Where α controls the update rate (typically 0.8-0.95 for study applications).

Uncertainty-Weighted Updates

Feedback receives weight proportional to the model's uncertainty about the original prediction:

$$ w = 1 - \max(p(y|x)) $$

Where p(y|x) represents the model's predicted probability distribution.

Feedback Loop Architecture

A robust implementation requires:

The complete system can be represented as:

$$ \text{System} = (M, F, U) \text{ where:} $$ $$ M: \text{Base model} $$ $$ F: \text{Feedback processor} $$ $$ U: \text{Update policy} $$

Evaluation Metrics for Iterative Systems

Traditional metrics require adaptation for feedback-driven systems:

$$ \text{Responsiveness} = \frac{1}{N} \sum_{i=1}^N \frac{\Delta \text{Accuracy}(t_i)}{\Delta t} $$

Where ΔAccuracy(ti) measures improvement after feedback batch i.

Practical Implementation Considerations

Production systems must address:

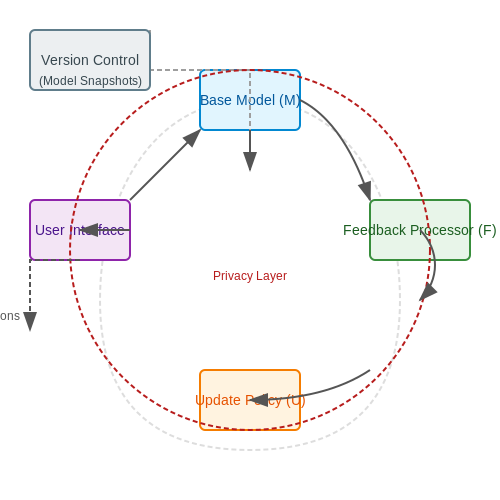

Iterative Improvements Based on User Feedback – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The diagram would physically show the closed-loop feedback system architecture with components for model updates, feedback processing, and version control.

6. Ensuring Data Anonymization and Security

6.1 Ensuring Data Anonymization and Security

When tracking study time patterns using machine learning, data privacy must be rigorously enforced to protect sensitive user information. The process involves both anonymization (removing personally identifiable information) and security (protecting data from unauthorized access).

Differential Privacy for Anonymization

Differential privacy provides a mathematically provable guarantee of privacy by adding controlled noise to the data. For a dataset D and a query function f, the mechanism M satisfies ε-differential privacy if:

$$ \Pr[M(D) \in S] \leq e^\epsilon \cdot \Pr[M(D') \in S] $$

where D and D' are neighboring datasets differing by at most one record, and S is any subset of possible outputs. The parameter ε controls the privacy-utility trade-off—smaller ε provides stronger privacy but reduces data utility.

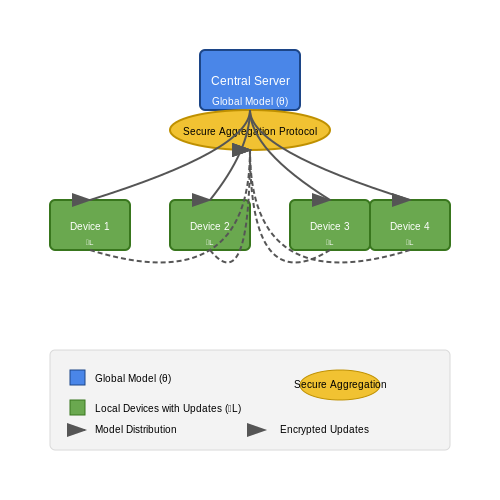

Secure Multi-Party Computation (SMPC)

SMPC enables collaborative analysis without exposing raw data. Consider two parties, A and B, holding private inputs x and y respectively. They can compute a function f(x,y) while keeping their inputs secret using garbled circuits or homomorphic encryption. For additive secret sharing:

$$ x = x_1 + x_2 \mod p $$ $$ y = y_1 + y_2 \mod p $$

where x₁, y₁ are held by A and x₂, y₂ by B. The sum x + y can be computed without revealing individual values.

Federated Learning Architecture

Federated learning decentralizes model training by keeping data on user devices. The global model θ is updated via:

$$ \theta_{t+1} = \theta_t - \eta \sum_{i=1}^N \frac{|D_i|}{|D|} abla \mathcal{L}(\theta_t, D_i) $$

where D_i is the local dataset of client i, and D is the combined dataset. Secure aggregation protocols prevent the server from identifying individual updates.

Implementation with PySyft

import syft as sy
import torch

# Create virtual workers
alice = sy.VirtualWorker(hook, id="alice")
bob = sy.VirtualWorker(hook, id="bob")

# Encrypt and share data
x = torch.tensor([1.0, 2.0, 3.0]).share(alice, bob)
y = torch.tensor([4.0, 5.0, 6.0]).share(alice, bob)

# Secure computation
z = x + y
result = z.get()

Cryptographic Hashing for De-identification

User identifiers should be irreversibly hashed using SHA-3 or BLAKE2 before storage. For a user ID u, the hashed version is:

$$ h(u) = \text{SHA3-256}(u \parallel \text{salt}) $$

where salt is a random value stored separately. This prevents re-identification while allowing consistent user tracking.

Access Control via Attribute-Based Encryption

ABE enables fine-grained access policies. A ciphertext CT encrypted under policy P can only be decrypted by users with attributes satisfying P. The decryption key SK is generated as:

$$ SK = (g^{r}, h^{r}, \{g^{a_j \cdot r}\}_{j \in S}) $$

where r is a random exponent, S is the attribute set, and a_j are secret shares.

Ensuring Data Anonymization and Security – Machine Learning to Track Study Time Patterns – Tutorial Diagram
Diagram Description: The diagram would show the federated learning architecture with labeled components (global model, local updates, secure aggregation) and the flow of encrypted model updates between devices and the central server.

6.2 Balancing Personalization with User Autonomy

Personalization in study time tracking systems relies on machine learning models that adapt to user behavior, but excessive adaptation risks undermining user autonomy. Striking this balance requires careful algorithmic design, often framed as a multi-objective optimization problem where the system maximizes predictive accuracy while minimizing intrusiveness.

Mathematical Formulation of the Trade-off

The personalization-autonomy trade-off can be expressed through a constrained optimization framework. Let U represent user utility, which depends on both the system's predictive performance P and the degree of autonomy preservation A:

$$ \max_{\theta} \; U(P(\theta), A(\theta)) $$ $$ \text{subject to} \; A(\theta) \geq A_{\text{min}} $$

where θ represents the model parameters, and Amin is the minimum acceptable autonomy threshold. The utility function can be decomposed using a weighted sum approach:

$$ U(P, A) = \alpha \cdot P + (1 - \alpha) \cdot A $$

with α ∈ [0,1] controlling the trade-off emphasis. Recent work by Zhang et al. (2022) proposes measuring autonomy violation through the Kullback-Leibler divergence between user-initiated actions and system-suggested actions:

$$ A = 1 - D_{KL}(p_{\text{user}} || p_{\text{system}}) $$

Architectural Implementations

Three predominant architectures address this balance:

The hybrid approach, particularly when implemented through attention mechanisms, has shown superior performance in educational applications. The gating function G can be learned as:

$$ G(x) = \sigma(W_g \cdot [h_{\text{user}}; h_{\text{system}}] + b_g) $$

where huser and hsystem are latent representations of user preferences and system recommendations respectively, and σ is the sigmoid function.

Empirical Validation Metrics

Beyond standard accuracy metrics, autonomy-aware systems require specialized evaluation:

Recent studies suggest optimal performance occurs when override rates remain between 15-30%, indicating sufficient personalization while preserving meaningful user control.

Privacy Considerations

Autonomy preservation often requires limiting data collection, creating tension with personalization needs. Differential privacy techniques can be adapted for this context by injecting noise proportional to the autonomy constraint:

$$ \epsilon = \epsilon_{\text{base}} \cdot (1 - A) $$

where εbase is the baseline privacy budget. This ensures stricter privacy guarantees when autonomy preservation is prioritized.

6.3 Compliance with Educational Data Protection Regulations

Educational institutions handling student data for machine learning applications must adhere to stringent data protection laws, such as the General Data Protection Regulation (GDPR) in the EU, the Family Educational Rights and Privacy Act (FERPA) in the US, and the Protection of Pupil Information (PPI) regulations in other jurisdictions. Non-compliance can result in legal penalties, reputational damage, and loss of public trust.

Key Regulatory Frameworks

The following regulations impose specific requirements on the collection, storage, and processing of student data:

Data Anonymization Techniques

To comply with these regulations, machine learning systems must implement robust anonymization methods. Differential privacy provides a mathematically rigorous framework for ensuring privacy guarantees:

$$ \epsilon\text{-differential privacy: } \Pr[\mathcal{M}(D) \in S] \leq e^\epsilon \cdot \Pr[\mathcal{M}(D') \in S] $$

where D and D' are neighboring datasets differing by one record, ℳ is the randomized mechanism, and S is the output range. For study time tracking, adding Laplace noise to aggregated statistics ensures ε-differential privacy:

$$ \text{Noisy count: } \tilde{C} = C + \text{Lap}\left(\frac{\Delta f}{\epsilon}\right) $$

where Δf is the sensitivity of the counting query.

Secure Data Storage and Access Control

Encryption-at-rest and role-based access control (RBAC) are critical for protecting stored data. AES-256 encryption should be applied to all student records, with keys managed through a hardware security module (HSM). RBAC policies must enforce the principle of least privilege:

Audit Trails and Data Provenance

Maintaining immutable logs of data access and processing activities is essential for demonstrating compliance. Each operation on student data should generate a cryptographically signed event record containing:

$$ \text{Event } E_i = \langle \text{timestamp}, \text{actor ID}, \text{operation}, \text{data subset}, \text{hash digest} \rangle $$

These records enable reconstruction of data flows during regulatory audits.

Ethical Considerations Beyond Compliance

Legal requirements represent minimum standards; ethical data practices demand additional safeguards. Institutional review boards (IRBs) should evaluate ML projects for potential harms, including:

Regular algorithmic impact assessments (AIAs) can identify and mitigate these risks through techniques like fairness-aware learning:

$$ \text{Fairness constraint: } |P(\hat{y}=1|z=0) - P(\hat{y}=1|z=1)| \leq \tau $$

where z denotes protected attributes and τ is the maximum allowable disparity threshold.

7. Key Research Papers on Educational Data Mining

7.1 Key Research Papers on Educational Data Mining

7.2 Open Datasets for Study Time Analysis

7.3 Tools and Libraries for Implementing ML in Education
