1. Neural Radiance Fields (NeRF) Explained

Neural Radiance Fields (NeRF) Explained

Neural Radiance Fields (NeRF) represent a scene as a continuous volumetric function parameterized by a multilayer perceptron (MLP). Given a 3D coordinate (x, y, z) and viewing direction (θ, φ), the MLP outputs the volume density σ and view-dependent RGB color c:

$$ F_\Theta: (x, y, z, \theta, \phi) \rightarrow (c, \sigma) $$

The model is trained to minimize the photometric error between rendered and ground-truth images. Volume rendering integrates radiance along camera rays using the classical rendering equation:

$$ C(\mathbf{r}) = \int_{t_n}^{t_f} T(t) \sigma(\mathbf{r}(t)) \mathbf{c}(\mathbf{r}(t), \mathbf{d}) \, dt $$

where T(t) is the accumulated transmittance:

$$ T(t) = \exp \left( -\int_{t_n}^t \sigma(\mathbf{r}(s)) \, ds \right) $$

Differentiable Volume Rendering

To make this process tractable, NeRF approximates the continuous integral via quadrature with stratified sampling. For a ray r(t) = o + td, samples are drawn at N points {t_i}:

$$ \hat{C}(\mathbf{r}) = \sum_{i=1}^N T_i (1 - \exp(-\sigma_i \delta_i)) \mathbf{c}_i $$

where δ_i = t_{i+1} - t_i and T_i = \exp \left( -\sum_{j=1}^{i-1} \sigma_j \delta_j \right). This formulation is fully differentiable, enabling end-to-end training via gradient descent.

Positional Encoding

Directly feeding coordinates into the MLP leads to poor high-frequency detail. NeRF applies a high-dimensional positional encoding γ(p) to input coordinates:

$$ \gamma(p) = \left( \sin(2^0 \pi p), \cos(2^0 \pi p), ..., \sin(2^{L-1} \pi p), \cos(2^{L-1} \pi p) \right) $$

where L determines the highest frequency band (typically L=10 for coordinates and L=4 for view directions). This allows the MLP to approximate high-frequency signals more effectively.

Hierarchical Sampling

Naive uniform sampling is inefficient. NeRF uses a two-stage coarse-to-fine approach:

The loss combines both outputs:

$$ \mathcal{L} = \sum_{\mathbf{r} \in \mathcal{R}} \left[ \| \hat{C}_c(\mathbf{r}) - C(\mathbf{r}) \|_2^2 + \| \hat{C}_f(\mathbf{r}) - C(\mathbf{r}) \|_2^2 \right] $$

Practical Implementation Considerations

Modern NeRF implementations employ several optimizations:

Neural Radiance Fields (NeRF) Explained – Training NeRF Models with Custom Datasets – Tutorial Diagram
Diagram Description: The diagram would show the volumetric rendering process with camera rays sampling points in 3D space, illustrating how density and color are integrated along each ray.

Key Mathematical Foundations of NeRF

Volume Rendering and Radiance Fields

The core mathematical framework of Neural Radiance Fields (NeRF) relies on volume rendering, which models how light interacts with a 3D scene. A radiance field is represented as a continuous 5D function:

$$ F(\mathbf{x}, \mathbf{d}) \rightarrow (\mathbf{c}, \sigma) $$

where 𝐱 = (x, y, z) is a 3D point, 𝐝 = (θ, ϕ) is the viewing direction, 𝐜 = (r, g, b) is the emitted color, and σ is the volume density at that point. This function is approximated using a multilayer perceptron (MLP).

Volume Rendering Integral

The observed color C(𝐫) for a camera ray 𝐫(t) = 𝐨 + t𝐝 is computed via the volume rendering integral:

$$ C(\mathbf{r}) = \int_{t_n}^{t_f} T(t) \sigma(\mathbf{r}(t)) \mathbf{c}(\mathbf{r}(t), \mathbf{d}) \, dt $$

where T(t) is the accumulated transmittance along the ray:

$$ T(t) = \exp \left( -\int_{t_n}^t \sigma(\mathbf{r}(s)) \, ds \right) $$

This integral accounts for both emission and absorption of light along the ray path.

Numerical Integration via Quadrature

In practice, the continuous integral is approximated using numerical quadrature. The ray is partitioned into N segments, and the color is estimated as:

$$ \hat{C}(\mathbf{r}) = \sum_{i=1}^N T_i (1 - \exp(-\sigma_i \delta_i)) \mathbf{c}_i $$

where T_i = exp(-\sum_{j=1}^{i-1} \sigma_j \delta_j) and δ_i is the distance between adjacent samples. This discrete formulation enables efficient computation during training.

Positional Encoding

To capture high-frequency details, NeRF employs positional encoding to map input coordinates into a higher-dimensional space:

$$ \gamma(p) = \left( \sin(2^0 \pi p), \cos(2^0 \pi p), ..., \sin(2^{L-1} \pi p), \cos(2^{L-1} \pi p) \right) $$

where L is the number of frequency bands. This transformation allows the MLP to learn fine geometric and textural details that would otherwise be missed.

Hierarchical Sampling

NeRF uses a two-stage hierarchical sampling strategy to allocate samples efficiently. A coarse network first predicts densities across the entire ray, followed by a fine network that concentrates samples in regions with high density. The loss function combines errors from both networks:

$$ \mathcal{L} = \sum_{\mathbf{r}} \left( \|\hat{C}_c(\mathbf{r}) - C(\mathbf{r})\|_2^2 + \|\hat{C}_f(\mathbf{r}) - C(\mathbf{r})\|_2^2 \right) $$

This approach reduces computational cost while maintaining rendering quality.

NeRF Volume Rendering Process Diagram showing the 5D radiance field function mapping spatial coordinates and viewing direction to color and density, along with the volume rendering integral process along a camera ray. z x y (x,y,z) d(θ,ϕ) F(x,d) c(r,g,b) σ Camera r(t) tₙ tₑ σ(r(t₁)) c(r(t₁),d) σ(r(t₂)) c(r(t₂),d) σ(r(t₃)) c(r(t₃),d) T(t) C(r) NeRF Volume Rendering Process
Diagram Description: The diagram would show the 5D radiance field function mapping spatial coordinates and viewing direction to color and density, along with the volume rendering integral process along a camera ray.

Role of Volume Rendering in NeRF

Volume rendering is the mathematical foundation enabling Neural Radiance Fields (NeRF) to synthesize photorealistic novel views from a set of input images. Unlike traditional surface-based rendering, which assumes objects have well-defined boundaries, volume rendering operates on a continuous density field, making it ideal for capturing complex phenomena like fog, hair, or translucent materials. The core idea is to accumulate color and opacity along rays cast through the scene, integrating the contributions of infinitesimal volume elements.

Volume Rendering Equation

The physical basis of volume rendering is described by the radiative transfer equation, which models how light interacts with participating media. In NeRF, this is simplified to the volume rendering integral, where the expected color C of a camera ray r(t) = o + td (with origin o and direction d) is computed as:

$$ C(\mathbf{r}) = \int_{t_n}^{t_f} T(t) \sigma(\mathbf{r}(t)) \mathbf{c}(\mathbf{r}(t), \mathbf{d}) \, dt $$

where:

$$ T(t) = \exp \left( -\int_{t_n}^t \sigma(\mathbf{r}(s)) \, ds \right) $$

Numerical Implementation

In practice, the continuous integrals are approximated using quadrature. For a ray sampled at N points {ti} with spacing δi = ti+1 − ti, the rendered color becomes:

$$ \hat{C}(\mathbf{r}) = \sum_{i=1}^N T_i (1 - \exp(-\sigma_i \delta_i)) \mathbf{c}_i $$

where Ti = exp(−∑j=1i−1 σj δj). This formulation is differentiable, enabling end-to-end training of the neural network that predicts σ and c at each 3D point.

Hierarchical Sampling

Naive uniform sampling along rays is computationally inefficient. NeRF addresses this with a two-stage hierarchical sampling strategy:

  1. Coarse network: Evaluates at uniformly sampled locations to estimate an initial density distribution.
  2. Fine network: Uses importance sampling to concentrate evaluations near relevant surfaces, guided by the coarse network's output.

The probability density function for the fine samples is proportional to the coarse density predictions, minimizing wasted computation on empty space.

Differentiable Properties

Volume rendering's differentiability is key to NeRF's success. The gradients of the rendering equation with respect to network parameters can be computed efficiently using automatic differentiation. This allows the model to learn scene geometry implicitly by minimizing the photometric error between rendered and ground truth images, without explicit 3D supervision.

Role of Volume Rendering in NeRF – Training NeRF Models with Custom Datasets – Tutorial Diagram
Diagram Description: The diagram would physically show a ray passing through a volume with sampled points, illustrating how color and density accumulate along the ray.

2. Data Collection: Capturing Multi-View Images

Data Collection: Capturing Multi-View Images

High-quality multi-view image capture is foundational for training Neural Radiance Fields (NeRF) models. The process requires precise camera calibration, controlled lighting, and dense viewpoint sampling to ensure the model reconstructs accurate 3D geometry and view-dependent appearance. Below, we outline the technical considerations and best practices for capturing optimal datasets.

Camera Setup and Calibration

Camera intrinsics and extrinsics must be known with high precision. Use a calibrated camera with fixed focal length to avoid distortion variations. The intrinsic matrix K and extrinsic parameters [R|t] for each viewpoint should be stored in a standardized format (e.g., COLMAP or NeRF Studio’s transforms.json). Radial and tangential distortion coefficients must be corrected using the Brown-Conrady model:

$$ \begin{aligned} x' &= x(1 + k_1 r^2 + k_2 r^4 + k_3 r^6) + 2p_1xy + p_2(r^2 + 2x^2) \\ y' &= y(1 + k_1 r^2 + k_2 r^4 + k_3 r^6) + p_1(r^2 + 2y^2) + 2p_2xy \end{aligned} $$

where (x, y) are normalized image coordinates, r² = x² + y², and ki, pi are distortion coefficients.

Viewpoint Sampling Strategy

Dense viewpoint coverage is critical. For object-centric NeRF, use a robotic arm or turntable to capture images at 5°–10° intervals on a spherical dome. For unbounded scenes, follow a lawnmower pattern with overlapping sightlines. The baseline between adjacent viewpoints should satisfy:

$$ \Delta b \leq \frac{Z_{min} \cdot \epsilon}{f} $$

where Zmin is the nearest scene depth, f is focal length, and ϵ is the desired pixel disparity (typically ≤2px).

Lighting and Material Considerations

Controlled illumination avoids shadows and specularities that violate NeRF’s view-dependent radiance assumptions. Use diffuse LED panels or overcast outdoor conditions. For reflective surfaces, cross-polarization filters suppress highlights. High dynamic range (HDR) imaging is recommended for scenes with varying brightness.

Data Annotation and Metadata

Each image must include:

Tools like COLMAP, RealityCapture, or Polycam automate pose estimation but may require manual refinement for low-texture regions.

Case Study: Large-Scale Scene Capture

The Mip-NeRF 360 dataset employed a DSLR on a motorized gimbal, capturing 200–500 images per scene with 60% overlap. Images were resized to 1008×756px and processed with COLMAP at 4× super-resolution for accurate depth initialization.

Data Collection: Capturing Multi-View Images – Training NeRF Models with Custom Datasets – Tutorial Diagram

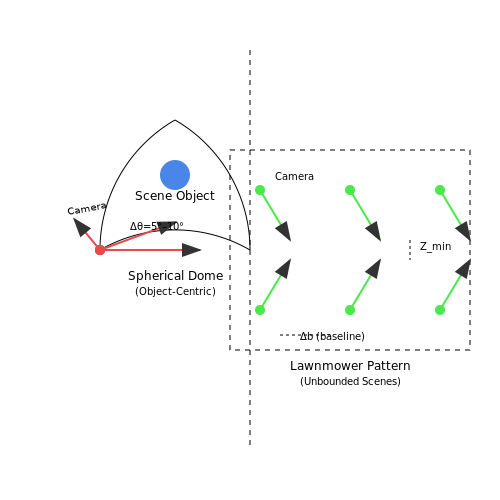

Diagram Description: The diagram would show the camera setup and viewpoint sampling strategy, including the spherical dome for object-centric NeRF and the lawnmower pattern for unbounded scenes.

Preprocessing: Image Alignment and Calibration

Accurate image alignment and camera calibration are critical for training NeRF models, as they directly influence the model's ability to reconstruct 3D scenes from 2D inputs. Misalignment or uncalibrated camera parameters introduce artifacts in the radiance field, leading to blurry or distorted outputs.

Camera Calibration

Camera calibration involves estimating intrinsic and extrinsic parameters to model the imaging process. The intrinsic matrix K captures focal length (fx, fy), principal point (cx, cy), and skew coefficient (s):

$$ K = \begin{bmatrix} f_x & s & c_x \\ 0 & f_y & c_y \\ 0 & 0 & 1 \end{bmatrix} $$

Extrinsic parameters define the camera's pose in world coordinates, represented as a rotation matrix R and translation vector t. The projection of a 3D point X to image coordinates x is:

$$ x = K [R | t] X $$

For custom datasets, calibration is typically performed using checkerboard patterns or structure-from-motion (SfM) tools like COLMAP, which solve for these parameters via bundle adjustment.

Image Alignment

Alignment ensures geometric consistency across multiple views. Key steps include:

$$ x' = Hx $$
$$ x'^T F x = 0 $$

Robust alignment often requires RANSAC to filter outliers. Modern pipelines leverage deep learning-based methods like LoFTR for dense matching.

Distortion Correction

Lens distortion (radial and tangential) must be corrected to satisfy the pinhole camera model. The distortion model is:

$$ x_{distorted} = x (1 + k_1 r^2 + k_2 r^4 + k_3 r^6) + \begin{bmatrix} 2p_1 xy + p_2 (r^2 + 2x^2) \\ p_1 (r^2 + 2y^2) + 2p_2 xy \end{bmatrix} $$

where r2 = x2 + y2, and ki, pi are distortion coefficients. OpenCV's undistort function applies the inverse of this transformation.

Practical Considerations

For NeRF training, ensure:

Preprocessing: Image Alignment and Calibration – Training NeRF Models with Custom Datasets – Tutorial Diagram

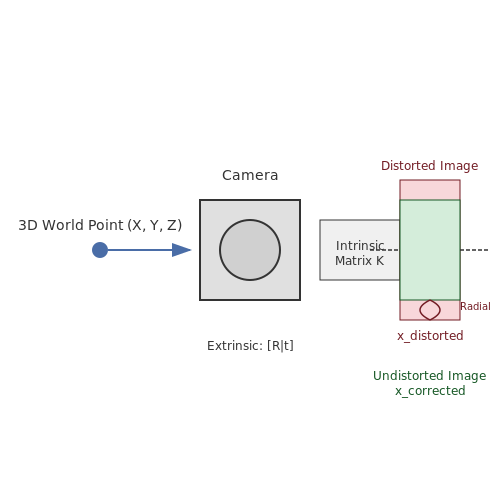

Diagram Description: The diagram would show the camera projection model with intrinsic/extrinsic matrices and distortion correction, illustrating how 3D points map to 2D image coordinates.

Generating Camera Poses and Intrinsics

Accurate camera pose estimation and intrinsic parameter calibration are fundamental for training Neural Radiance Fields (NeRF) models. The quality of novel view synthesis directly depends on precise camera parameter estimation, as errors propagate through the volumetric rendering process.

Camera Pose Estimation

Camera poses define the position and orientation of each camera in world coordinates, represented as a rigid transformation matrix T ∈ SE(3). For a dataset with N images, we need to estimate:

$$ T_i = \begin{bmatrix} R_i & t_i \\ 0 & 1 \end{bmatrix}, \quad i = 1,...,N $$

where Ri ∈ SO(3) is the rotation matrix and ti ∈ ℝ3 is the translation vector. Structure-from-Motion (SfM) pipelines like COLMAP solve this through feature matching and bundle adjustment:

  1. Detect and match SIFT features across images
  2. Initialize camera poses using epipolar geometry
  3. Refine through nonlinear optimization of reprojection error:
$$ \min_{T_i,P_j} \sum_{i=1}^N \sum_{j \in V_i} ||\pi(T_i, P_j) - x_{ij}||^2 $$

where Pj are 3D points, Vi is the set of points visible in image i, and π is the projection function.

Intrinsic Parameter Calibration

The camera intrinsic matrix K models the imaging system's optical properties:

$$ K = \begin{bmatrix} f_x & s & c_x \\ 0 & f_y & c_y \\ 0 & 0 & 1 \end{bmatrix} $$

Modern approaches jointly estimate intrinsics during SfM, but for controlled captures, pre-calibration using checkerboard patterns improves stability. The optimization minimizes reprojection error of known 3D points:

$$ \min_K \sum_{j=1}^M ||\pi(K, P_j^{known}) - x_j^{observed}||^2 $$

Practical Implementation

For custom datasets, COLMAP provides the most robust open-source pipeline. The processing workflow involves:

# COLMAP processing pipeline
colmap feature_extractor --database_path $$DATABASE --image_path $$IMAGES
colmap exhaustive_matcher --database_path $$DATABASE
colmap mapper --database_path $$DATABASE --image_path $$IMAGES --output_path $$SPARSE
colmap bundle_adjuster --input_path $$SPARSE/0 --output_path $$SPARSE/0

Key considerations for NeRF-specific applications:

Alternative Approaches

When SfM fails (e.g., for textureless surfaces or repetitive patterns), alternative methods include:

Generating Camera Poses and Intrinsics – Training NeRF Models with Custom Datasets – Tutorial Diagram
Diagram Description: The diagram would show the relationship between camera poses, 3D points, and their projections in 2D images, including the coordinate systems and transformation matrices.

2.4 Handling Dataset Imbalances and Noise

Addressing Viewpoint Sparsity in NeRF Training

NeRF models are particularly sensitive to viewpoint distribution imbalances, where certain viewing angles may be oversampled while others are sparse. This manifests as artifacts in novel view synthesis, especially for underobserved regions. The radiance field FΘ learns a biased representation when trained on such data, as the volumetric rendering integral:

$$ \hat{C}(\mathbf{r}) = \int_{t_n}^{t_f} T(t)\sigma(\mathbf{r}(t))\mathbf{c}(\mathbf{r}(t),\mathbf{d})dt $$

receives insufficient signal for directions d with few training rays. A practical solution involves computing a viewpoint density histogram H(θ,φ) across spherical coordinates and applying importance sampling during training. For batch construction, we adjust sampling probabilities according to:

$$ p(\theta,\phi) = \frac{1}{\epsilon + H(\theta,\phi)} $$

where ϵ prevents division by zero (typically 1e-3). This forces the model to allocate more capacity to underobserved regions.

Mitigating Photometric Noise

Real-world captures often exhibit inconsistent lighting and sensor noise that violate NeRF's Lambertian scene assumption. The photometric loss Lrgb can be made robust through:

Handling Transient Objects

Dynamic elements in static scenes (people, vehicles) create inconsistencies across views. The NeRF in the Wild approach models these as:

$$ \sigma = \sigma_s + \sigma_t, \quad \mathbf{c} = \frac{\sigma_s\mathbf{c}_s + \sigma_t\mathbf{c}_t}{\sigma_s + \sigma_t} $$

where σs, cs represent static geometry and σt, ct model transient components. The network learns to discard transient effects through a secondary head predicting per-ray existence probabilities.

Geometric Consistency Regularization

Noisy depth measurements from SfM pipelines can be addressed through multi-view geometric constraints. Adding a depth loss term:

$$ L_{depth} = \lambda_d \mathbb{E}_\mathbf{r}\left[(\hat{D}(\mathbf{r}) - D(\mathbf{r}))^2\right] $$

where D(r) is the measured depth and D̂(r) is the expected termination distance from volume rendering:

$$ \hat{D}(\mathbf{r}) = \int_{t_n}^{t_f} T(t)\sigma(\mathbf{r}(t))t\, dt $$

This is particularly effective when combined with sparse LiDAR measurements or photometric stereo constraints.

Adaptive Ray Sampling

For scenes with extreme scale variations, implement stratified sampling that adapts to local complexity. The hierarchical sampling from original NeRF can be enhanced with:

Handling Dataset Imbalances and Noise – Training NeRF Models with Custom Datasets – Tutorial Diagram
Diagram Description: The section discusses viewpoint density histograms and spherical coordinate sampling, which are inherently spatial concepts best visualized with a diagram.

3. Setting Up the Training Environment

3.1 Setting Up the Training Environment

Training a Neural Radiance Field (NeRF) model requires a carefully configured environment to handle the computational demands of volumetric rendering and gradient-based optimization. The setup involves hardware considerations, software dependencies, and configuration parameters tailored to the specific NeRF variant being implemented.

Hardware Requirements

NeRF training is computationally intensive, with performance scaling directly with available GPU resources. For modern implementations like Instant-NGP or Mip-NeRF, an NVIDIA GPU with at least 8GB of VRAM is essential. High-end models (e.g., NeRF++ for unbounded scenes) may require 24GB+ VRAM and Tensor Core support for mixed-precision training. Key hardware benchmarks include:

Software Stack Configuration

The core software stack typically combines PyTorch or JAX with CUDA-optimized custom kernels. For PyTorch-based implementations:

conda create -n nerf python=3.8
conda activate nerf
pip install torch==1.12.1+cu113 torchvision==0.13.1+cu113 -f https://download.pytorch.org/whl/torch_stable.html
pip install ninja imageio plotly opencv-python

For JAX implementations (common in research variants), ensure proper CUDA/cuDNN compatibility:

pip install --upgrade "jax[cuda11_pip]" -f https://storage.googleapis.com/jax-releases/jax_cuda_releases.html

Custom Kernel Compilation

Performance-critical components like volume rendering kernels often require compilation during setup. The compilation process depends on the CUDA toolkit version and GPU architecture:

export CUDA_HOME=/usr/local/cuda-11.3
export PATH=$$CUDA_HOME/bin:$$PATH
export LD_LIBRARY_PATH=$$CUDA_HOME/lib64:$$LD_LIBRARY_PATH

For hash-grid accelerated NeRFs, the compilation must target specific GPU compute capabilities (e.g., sm_86 for Ampere architectures). This is typically specified in the setup.py file:

from torch.utils.cpp_extension import CUDAExtension

ext_modules = [
    CUDAExtension(
        name='nerf_cuda',
        sources=['src/nerf_kernel.cu'],
        extra_compile_args={
            'cxx': ['-O3'],
            'nvcc': [
                '-O3',
                '--use_fast_math',
                '--ptxas-options=-v',
                '--compiler-options=-fPIC',
                '-gencode', 'arch=compute_86,code=sm_86'
            ]
        }
    )
]

Dataset Preparation Tools

Custom datasets require transformation into the standardized format used by NeRF implementations. The data pipeline typically involves:

The transformation pipeline can be automated using scripts that interface with COLMAP's API:

import colmap
from nerfstudio.process_data.colmap_utils import run_colmap

run_colmap(
    image_dir="path/to/images",
    colmap_path="path/to/colmap",
    colmap_db_path="database.db",
    output_path="sparse/0",
    camera_model="OPENCV",
    single_camera=True
)

Configuration Files

NeRF implementations use YAML or JSON configs to manage hyperparameters. A typical configuration includes:

model:
  num_samples_per_ray: 128
  num_importance_samples: 64
  density_noise_std: 1.0
  near_plane: 0.1
  far_plane: 100.0

training:
  lr_init: 5e-4
  lr_final: 5e-6
  max_steps: 30000
  batch_size: 4096
  warmup_steps: 1000

Configuring Hyperparameters for Optimal Performance

The performance of a NeRF model is highly sensitive to hyperparameter selection, requiring careful tuning to balance rendering quality, training stability, and computational efficiency. Key hyperparameters include learning rate, batch size, positional encoding parameters, and network architecture choices.

Learning Rate and Optimization

The learning rate (η) directly controls convergence speed and final rendering quality. For NeRF, adaptive learning rate methods like Adam are standard, with initial values typically in the range:

$$ \eta \in [5 \times 10^{-4}, 1 \times 10^{-3}] $$

Empirical studies show that higher learning rates accelerate early training but may cause instability in fine details, while lower rates improve final PSNR at the cost of extended training time. A common strategy is to implement learning rate decay:

$$ \eta_t = \eta_0 \times \gamma^{\lfloor t/s \rfloor} $$

where γ is the decay rate (typically 0.1-0.5) and s is the step interval (often 100k-250k iterations).

Positional Encoding Configuration

The positional encoding function γ maps input coordinates to a higher-dimensional space, with the number of frequency bands L critically affecting performance:

$$ \gamma(p) = \left(\sin(2^0 \pi p), \cos(2^0 \pi p), ..., \sin(2^{L-1} \pi p), \cos(2^{L-1} \pi p)\right) $$

For view direction, L=4 is typically sufficient, while spatial coordinates often require L=10 for complex scenes. Higher values improve high-frequency detail but increase memory usage and risk overfitting.

Network Architecture Choices

The MLP depth and width determine the model's capacity. Standard configurations use:

Recent variants like Mip-NeRF demonstrate that incorporating conical frustums instead of rays allows reducing network depth while maintaining quality, with 6 layers often sufficient.

Batch Size and Sampling Strategy

The number of rays sampled per batch affects both quality and memory constraints. Practical considerations include:

The sampling strategy can be formalized as:

$$ t_i \sim \mathcal{N}\left(\mu, \sigma^2\right) \quad \text{where} \quad \mu = \frac{1}{N}\sum_{j=1}^N t_j, \sigma^2 = \frac{1}{N}\sum_{j=1}^N (t_j - \mu)^2 $$

for adaptive sample spacing along rays.

Regularization and Loss Functions

Additional terms beyond the standard photometric loss improve stability:

$$ \mathcal{L} = \mathcal{L}_{\text{rgb}} + \lambda_{\text{opacity}} \mathcal{L}_{\text{opacity}} + \lambda_{\text{dist}} \mathcal{L}_{\text{dist}} $$

where opacity regularization (λ≈0.1) prevents floaters and dist regularization (λ≈0.01) encourages compact density distributions. The distortion loss term is computed as:

$$ \mathcal{L}_{\text{dist}} = \sum_{i,j} w_i w_j \left| t_i - t_j \right| $$

with w denoting sample weights along each ray.

Implementing the NeRF Architecture

Core Components of the NeRF Model

The Neural Radiance Field (NeRF) architecture consists of two primary components: a multilayer perceptron (MLP) that maps 3D coordinates and viewing directions to volume density and emitted radiance, and a volume rendering mechanism that integrates these predictions into 2D images. The MLP takes as input a 3D spatial coordinate x = (x, y, z) and a viewing direction d = (θ, φ), and outputs a color c = (r, g, b) and volume density σ.

$$ F_Θ: (x, d) → (c, σ) $$

The MLP is typically implemented with ReLU activation functions and positional encoding applied to the input coordinates to enable high-frequency detail learning. The positional encoding γ for a given input p (either x or d) is defined as:

$$ γ(p) = \left(\sin(2^0πp), \cos(2^0πp), ..., \sin(2^{L-1}πp), \cos(2^{L-1}πp)\right) $$

where L determines the number of frequency bands used in the encoding. For spatial coordinates, L=10 is common, while for viewing directions, L=4 is typically sufficient.

Volume Rendering Integral

The predicted color and density values are integrated along camera rays to produce the final pixel colors. For a ray r(t) = o + td with near and far bounds tn and tf, the expected color Ĉ(r) is computed as:

$$ Ĉ(r) = \int_{t_n}^{t_f} T(t)σ(r(t))c(r(t), d)dt $$

where T(t) represents the accumulated transmittance along the ray up to distance t:

$$ T(t) = \exp\left(-\int_{t_n}^t σ(r(s))ds\right) $$

In practice, this integral is approximated using numerical quadrature by sampling points along each ray. The hierarchical sampling strategy employs both coarse and fine networks to allocate samples efficiently to regions with significant content.

Implementation Details

The standard NeRF implementation uses an 8-layer MLP (256 channels) for processing 3D coordinates, followed by a skip connection to a 1-layer MLP (256 channels) that also incorporates viewing direction. The final layers output σ (density) and c (RGB color). Key hyperparameters include:

Optimization Considerations

The model is typically trained using a photometric reconstruction loss comparing rendered pixel colors to ground truth images:

$$ \mathcal{L} = \sum_{r∈\mathcal{R}} \left(||Ĉ_c(r) - C(r)||_2^2 + ||Ĉ_f(r) - C(r)||_2^2\right) $$

where Ĉc and Ĉf are the coarse and fine network predictions respectively. Recent improvements incorporate perceptual losses and adversarial training for sharper results. The model benefits from:

Architectural Variants

Several modifications to the base architecture have shown improved performance:

Implementing the NeRF Architecture – Training NeRF Models with Custom Datasets – Tutorial Diagram
Diagram Description: The diagram would show the NeRF architecture's MLP structure with input/output flow and the volume rendering process with ray sampling.

3.4 Monitoring Training Progress and Debugging

Training Neural Radiance Fields (NeRF) involves optimizing a continuous volumetric scene representation, which requires careful monitoring to ensure convergence and identify potential failures. Key metrics include photometric loss, perceptual quality, and geometric consistency, each providing distinct insights into model behavior.

Loss Function Analysis

The primary photometric loss for NeRF is the mean squared error (MSE) between rendered and ground truth pixel colors:

$$ \mathcal{L}_{\text{photo}} = \frac{1}{N} \sum_{i=1}^N \left( \hat{C}_i - C_i \right)^2 $$

where N is the number of rays sampled per batch, Ĉi is the rendered color, and Ci is the ground truth. A well-trained model should exhibit:

Visual Quality Assessment

Quantitative metrics should be supplemented with periodic renderings of test views. Common artifacts to monitor include:

For dynamic scenes, temporal consistency should be evaluated by rendering consecutive frames and checking for flickering or unstable geometry.

Geometric Validation

Extracted depth maps should be compared against available ground truth or multi-view stereo reconstructions. The depth error εd can be computed as:

$$ \epsilon_d = \frac{1}{M} \sum_{j=1}^M | \hat{d}_j - d_j | $$

where M is the number of valid depth samples, d̂j is the rendered depth, and dj is the reference depth. Acceptable thresholds are application-dependent but typically fall below 1% of the scene's bounding box diagonal.

Debugging Common Failure Modes

Slow Convergence

If training stagnates with high photometric loss (> 0.1 after 50k iterations), potential causes include:

Overfitting

Characterized by low training loss but high test error, solutions involve:

Advanced Monitoring Tools

For large-scale deployments, implement:

Periodic computation of the PSNR between rendered and ground truth images provides a standardized quality metric:

$$ \text{PSNR} = 10 \log_{10} \left( \frac{\text{MAX}_I^2}{\text{MSE}} \right) $$

where MAXI is the maximum possible pixel value (typically 1.0 for normalized images). High-quality NeRF models achieve PSNR > 30 dB on standard benchmarks.

Monitoring Training Progress and Debugging – Training NeRF Models with Custom Datasets – Tutorial Diagram
Diagram Description: The diagram would show the relationship between photometric loss, depth error, and visual artifacts like floaters or background collapse in a NeRF training process.

4. Techniques for Faster Convergence

Techniques for Faster Convergence

Adaptive Sampling Strategies

NeRF's reliance on uniform sampling along rays leads to inefficiencies, as many sampled points contribute negligibly to the final rendered color. Importance sampling focuses computation on regions with high radiance variation. The probability density function p(t) for sampling along a ray can be derived from the transmittance T(t) and emitted radiance L(t):

$$ p(t) \propto T(t) \cdot \sigma(t) \cdot \|L(t)\|_2 $$

where σ(t) is the volume density at point t. Implementing this requires maintaining a coarse density estimator that is updated every k iterations. Mip-NeRF 360 extends this with a proposal network that predicts sampling distributions in a hierarchical manner.

Hybrid Representation Learning

Pure MLP-based representations suffer from slow convergence due to high-frequency aliasing. Hybrid approaches combine explicit structures (voxel grids, hash tables) with neural networks to accelerate training:

The gradient scaling between explicit and implicit components must be carefully balanced to prevent either component from dominating prematurely.

Curriculum Learning

Progressive training schedules improve convergence by initially restricting the optimization problem's complexity:

$$ \mathcal{L}_{\text{total}} = \lambda_{\text{rgb}}\mathcal{L}_{\text{rgb}} + \lambda_{\text{mask}}\mathcal{L}_{\text{mask}}(S_k) $$

where Sk represents the active training region at stage k. Common strategies include:

Second-Order Optimization

While Adam is standard, advanced optimizers can yield faster convergence for NeRFs. The Kronecker-factored Approximate Curvature (K-FAC) method approximates the Fisher information matrix:

$$ F \approx A \otimes G $$

where A is the input covariance matrix and G is the gradient covariance matrix. Shampoo optimizer extends this to full-matrix adaptation with memory-efficient diagonal approximations. These methods particularly benefit high-frequency detail recovery.

Gradient Scaling and Clipping

The disparity in gradient magnitudes between density (σ) and color (RGB) predictions often destabilizes training. A robust solution involves:

$$ \tilde{g} = \text{clip}\left(\frac{g}{\text{rms}(g)}, \gamma\right) \cdot \eta $$

where γ is the clipping threshold (typically 0.1-1.0) and η is a per-parameter learning rate scale. Automatic gradient scaling can be implemented by monitoring the ratio of parameter updates to their current values.

Warm Start Initialization

Leveraging pretrained components accelerates convergence for new scenes:

The initialization must preserve the network's capacity to learn high-frequency details while providing reasonable priors for geometry and illumination.

Techniques for Faster Convergence – Training NeRF Models with Custom Datasets – Tutorial Diagram

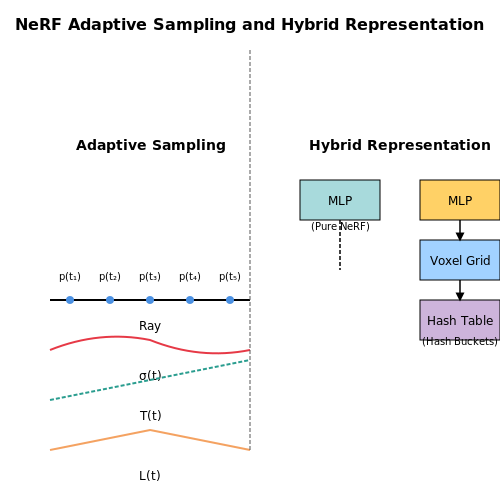

Diagram Description: The section describes adaptive sampling strategies and hybrid representations, which involve spatial relationships and hierarchical structures that are best visualized.

Improving Rendering Quality with Advanced Loss Functions

Neural Radiance Fields (NeRF) models rely heavily on the choice of loss functions to optimize scene representation and rendering quality. While the standard L2 photometric loss between rendered and ground truth pixels is effective, it often leads to blurry outputs and fails to capture high-frequency details. Advanced loss functions address these limitations by incorporating perceptual, adversarial, and physically-based constraints.

Perceptual Loss for High-Frequency Detail Preservation

The perceptual loss leverages pre-trained convolutional neural networks (CNNs) to measure semantic and structural differences between rendered and target images. Given a feature extractor ϕ (typically VGG-16), the perceptual loss is defined as:

$$ \mathcal{L}_{\text{perc}} = \sum_{i} \|\phi_i(I_{\text{rendered}}) - \phi_i(I_{\text{target}})\|_1 $$

where ϕi denotes activations from the i-th layer. This loss penalizes deviations in texture and edge information more effectively than pixel-wise metrics.

Adversarial Loss for Realistic Synthesis

Generative Adversarial Networks (GANs) can be integrated into NeRF training through a discriminator network D that learns to distinguish between rendered and real images. The adversarial loss is given by:

$$ \mathcal{L}_{\text{adv}} = \mathbb{E}[\log D(I_{\text{target}})] + \mathbb{E}[\log(1 - D(I_{\text{rendered}}))] $$

This forces the NeRF model to generate sharper, more realistic outputs by competing against the discriminator. Recent work has shown that combining adversarial loss with gradient penalty (WGAN-GP) improves training stability.

Depth-Aware Loss Functions

When depth information is available (e.g., from LiDAR or stereo cameras), a depth consistency loss can be added to enforce geometric accuracy:

$$ \mathcal{L}_{\text{depth}} = \|d_{\text{rendered}} - d_{\text{sensor}}\|_2 + \lambda \|\nabla d_{\text{rendered}}\|_1 $$

The second term acts as a smoothness regularizer to prevent noisy depth predictions. This is particularly useful for outdoor scenes where accurate geometry is critical.

Transient Object Handling with Robust Losses

Dynamic elements (e.g., moving vehicles) violate NeRF's static scene assumption. A robust loss function like Charbonnier or Cauchy reduces their influence:

$$ \mathcal{L}_{\text{robust}} = \sum_{pixels} \log(1 + \frac{(I_{\text{rendered}} - I_{\text{target}})^2}{\epsilon^2}) $$

where ϵ controls the outlier rejection threshold. This automatically downweights transient pixels during optimization.

Implementation Considerations

4.3 Memory and Computational Efficiency Tricks

Training Neural Radiance Fields (NeRF) models efficiently requires addressing their notorious memory and computational demands. Advanced techniques can significantly reduce resource usage without sacrificing reconstruction quality.

Hierarchical Sampling Strategies

The original NeRF paper introduced coarse-to-fine sampling to reduce the number of expensive MLP evaluations. The probability density function p(t) along a ray is approximated using:

$$ p(t) = \sum_{i=1}^N w_i \mathcal{N}(t|\mu_i, \sigma_i^2) $$

where wi are mixture weights and μi, σi parameterize Gaussian components. This allows adaptive sampling where more evaluations are concentrated in regions with high radiance variation.

Mixed Precision Training

Using FP16 or BF16 precision for most operations can halve memory usage while maintaining sufficient precision for gradient updates. Key considerations include:

Gradient Checkpointing

This technique trades compute for memory by recomputing intermediate activations during the backward pass rather than storing them. For a network with L layers, the memory reduction factor is approximately:

$$ \text{Memory Reduction} \approx \frac{L}{\sqrt{L}} $$

Strategic placement of checkpoints (e.g., after every 2-4 layers) provides optimal memory-compute tradeoffs.

Parameter Efficient Architectures

Recent variants like Instant-NGP and TensoRF demonstrate that careful architectural choices can dramatically improve efficiency:

Distributed Training Strategies

For large-scale scenes, data parallelism across multiple GPUs requires careful synchronization:

$$ \nabla_\theta\mathcal{L} = \frac{1}{N}\sum_{i=1}^N \nabla_\theta\mathcal{L}_i $$

where gradients are averaged across N devices. Pipeline parallelism can further partition the model across devices when using very large networks.

Memory-Efficient Rendering

The volume rendering integral:

$$ C(r) = \sum_{i=1}^N T_i(1 - \exp(-\sigma_i\delta_i))c_i $$

can be approximated using importance sampling and early ray termination when accumulated opacity approaches 1.0. This avoids unnecessary computations for occluded regions.

Memory and Computational Efficiency Tricks – Training NeRF Models with Custom Datasets – Tutorial Diagram

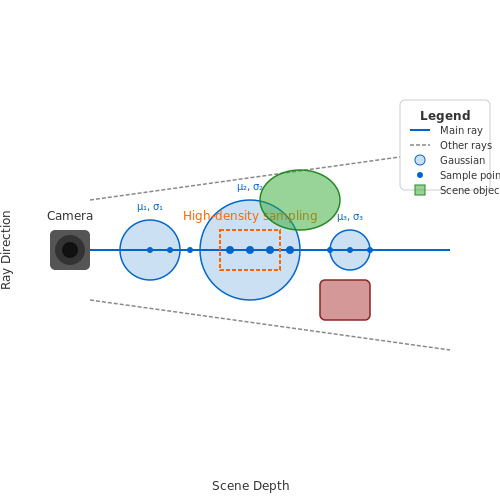

Diagram Description: The diagram would show the hierarchical sampling strategy with rays passing through a scene, highlighting regions of high radiance variation and the Gaussian components used for adaptive sampling.

5. Quantitative Metrics for NeRF Evaluation

5.1 Quantitative Metrics for NeRF Evaluation

Evaluating Neural Radiance Fields (NeRF) models requires robust quantitative metrics to assess rendering quality, geometric accuracy, and computational efficiency. Unlike qualitative assessment, which relies on visual inspection, quantitative metrics provide objective, reproducible measures for benchmarking and comparison.

Peak Signal-to-Noise Ratio (PSNR)

PSNR measures the fidelity of rendered images compared to ground truth. Given a ground truth image I and a rendered image Î, both with pixel values normalized to [0, 1], PSNR is computed as:

$$ \text{PSNR}(I, \hat{I}) = 10 \cdot \log_{10}\left(\frac{1}{\text{MSE}(I, \hat{I})}\right) $$

where MSE is the mean squared error:

$$ \text{MSE}(I, \hat{I}) = \frac{1}{N} \sum_{i=1}^N (I_i - \hat{I}_i)^2 $$

Higher PSNR values indicate better reconstruction quality, though it tends to favor smoother reconstructions and may not always align with perceptual quality.

Structural Similarity Index (SSIM)

SSIM evaluates perceptual similarity by considering luminance, contrast, and structure. For two image patches x and y, SSIM is defined as:

$$ \text{SSIM}(x, y) = \frac{(2\mu_x\mu_y + C_1)(2\sigma_{xy} + C_2)}{(\mu_x^2 + \mu_y^2 + C_1)(\sigma_x^2 + \sigma_y^2 + C_2)} $$

where μ and σ represent local means and standard deviations, σxy is the covariance, and C1, C2 are stability constants. SSIM ranges from -1 to 1, with 1 indicating perfect similarity.

Learned Perceptual Image Patch Similarity (LPIPS)

LPIPS leverages deep features from pretrained networks (e.g., VGG or AlexNet) to measure perceptual differences. Given feature maps Fl at layer l, LPIPS computes:

$$ \text{LPIPS}(I, \hat{I}) = \sum_{l} \frac{1}{H_l W_l} \sum_{h,w} \|w_l \odot (F^l_{I}(h,w) - F^l_{\hat{I}}(h,w))\|_2^2 $$

where wl are learned weights for layer l. Lower LPIPS values indicate better perceptual alignment with ground truth.

Depth Accuracy Metrics

For applications requiring geometric precision, depth-based metrics are critical. Common measures include:

where di and d̂i are ground truth and predicted depth values, respectively.

Training and Rendering Efficiency

Beyond quality metrics, computational metrics are essential for practical deployment:

These metrics are often reported alongside quality measures to provide a holistic view of model performance.

5.2 Qualitative Assessment: Visual Inspection

Visual inspection remains a critical step in evaluating the performance of NeRF models trained on custom datasets, as quantitative metrics alone may not capture subtle artifacts or perceptual quality. Unlike traditional metrics like PSNR or SSIM, qualitative assessment involves human judgment to identify rendering inconsistencies, such as blurring, floating artifacts, or incorrect geometry.

Key Artifacts to Monitor

When inspecting rendered views, focus on the following common failure modes:

Procedural Inspection Framework

For systematic evaluation, follow this workflow:

  1. Novel View Synthesis: Generate renders from viewpoints not present in the training set, focusing on extreme angles or occluded regions.
  2. Dynamic Range Analysis: Check for proper handling of high-contrast scenes by inspecting shadows, reflections, and specular highlights.
  3. Temporal Consistency: For video sequences, ensure smooth transitions between frames without flickering or sudden jumps in geometry.

Case Study: Artifact Diagnosis

Consider a NeRF model trained on a dataset with 30 images of a metallic object. Visual inspection reveals:

$$ \mathcal{L}_{spec} = \lambda \sum_{\mathbf{r}} ||\mathbf{c}(\mathbf{r}) - \mathbf{\hat{c}}(\mathbf{r})||_2^2 + \beta ||\nabla \mathbf{\hat{c}}(\mathbf{r})||_1 $$

where λ balances reconstruction error and β controls sparsity in view-dependent effects.

5.3 Addressing Common Pitfalls in NeRF Training

Optimization Instability Due to High-Frequency Artifacts

NeRF models often suffer from high-frequency artifacts during training, manifesting as noisy or flickering renderings. This instability arises because the positional encoding used to capture fine details amplifies high-frequency noise in regions with sparse or inconsistent observations. The Fourier features mapping function:

$$ \gamma(\mathbf{p}) = \left(\sin(2^0 \pi \mathbf{p}), \cos(2^0 \pi \mathbf{p}), ..., \sin(2^{L-1} \pi \mathbf{p}), \cos(2^{L-1} \pi \mathbf{p})\right) $$

introduces unbounded high-frequency components when the input coordinates p are noisy. To mitigate this, recent work proposes:

View-Dependent Effects and Specularities

Standard NeRF struggles with view-dependent effects due to its limited capacity to model specular reflections. The view direction d is typically concatenated with intermediate features, but this shallow conditioning often fails to capture complex light transport. Solutions include:

$$ L_o(\mathbf{p}, \mathbf{d}) = L_{\text{diffuse}}(\mathbf{p}) + L_{\text{specular}}(\mathbf{p}, \mathbf{d}) $$

Geometric Distortions in Sparse View Settings

When trained with fewer than 50 input views, NeRFs frequently produce degenerate geometries like floaters or background collapse. This occurs because the volume rendering integral becomes underconstrained:

$$ C(\mathbf{r}) = \int_{t_n}^{t_f} T(t)\sigma(\mathbf{r}(t))\mathbf{c}(\mathbf{r}(t), \mathbf{d})dt $$

where the transmittance T(t) and density σ can explain the same pixel color through multiple configurations. Current mitigation strategies involve:

Memory Bottlenecks for High-Resolution Scenes

The O(N³) memory complexity of dense voxel grids makes large-scale scenes impractical. Recent advances address this through:

Technique Memory Savings Trade-off
Hash grid encoding 10-100× Hash collisions may cause artifacts
Wavelet compression 5-20× Computationally expensive decoding
Octree subdivision 8-64× Complex implementation

The hash grid approach, for instance, uses a multi-resolution hierarchy of compact spatial hash tables:

$$ h(\mathbf{x}) = \left(\bigoplus_{i=1}^3 x_i \pi_i\right) \mod T $$

where π_i are large prime numbers and T is the table size.

Slow Rendering Speed

Real-time rendering remains challenging due to the need for hundreds of network evaluations per ray. Cutting-edge solutions employ:

The rendering time for a 1920×1080 image can be reduced from 5 minutes to 30ms through these optimizations while maintaining PSNR above 30dB.

Addressing Common Pitfalls in NeRF Training – Training NeRF Models with Custom Datasets – Tutorial Diagram
Diagram Description: The section discusses high-frequency artifacts in NeRF training, which are inherently visual phenomena, and a diagram would show the relationship between positional encoding frequencies and resulting artifacts.

6. Key Research Papers on NeRF

6.1 Key Research Papers on NeRF

6.2 Open-Source Implementations and Tools

6.3 Advanced Topics and Future Directions
