1. Definition and Core Concepts of Reranking

Reranking and Relevance Modeling

1.1 Definition and Core Concepts of Reranking

Reranking is a critical component in information retrieval systems, where an initial set of candidate documents or items retrieved by a first-stage retrieval model is reordered to improve relevance. Unlike first-stage retrieval, which prioritizes recall, reranking focuses on precision by leveraging more sophisticated—and often computationally expensive—models to refine the ranking.

The core objective of reranking is to minimize the discrepancy between the system's output ranking and the ideal ranking based on human-judged relevance. This is formalized as an optimization problem where the reranker f maps an initial ranked list Rinit to an improved list Rfinal:

$$ R_{final} = \arg\max_{R'} \sum_{d \in R'} \text{rel}(d, q) \cdot \phi(d, R_{init}, q) $$

Here, rel(d, q) is the ground-truth relevance of document d to query q, and ϕ is a feature function capturing dependencies between documents, the initial ranking, and the query. Modern rerankers often employ machine learning, particularly learning-to-rank (LTR) algorithms, to approximate this optimization.

Key Properties of Reranking

Mathematical Framework

Let X = {x1, ..., xn} be the set of candidate items, and yi be the relevance score for xi. A reranker learns a function g: X → ℝ to predict scores:

$$ g(x_i) = \mathbf{w}^T \Phi(x_i, q) + \epsilon_i $$

where Φ is a feature extractor, w are learnable weights, and εi is noise. The listwise loss for training is often a ranking loss like LambdaLoss:

$$ \mathcal{L} = -\sum_{i=1}^n y_i \log \left( \frac{e^{g(x_i)}}{\sum_{j=1}^n e^{g(x_j)}} \right) $$

Neural Reranking

Transformer-based models like BERT and T5 have become dominant in reranking due to their ability to capture query-document interactions. A typical architecture computes a cross-attention score:

$$ \text{score}(q, d) = \text{softmax}\left( \frac{QK^T}{\sqrt{d_k}} \right)V $$

where Q, K, and V are query, key, and value matrices derived from the query-document pair.

The Role of Relevance in Information Retrieval

Relevance serves as the foundational criterion for evaluating the effectiveness of information retrieval (IR) systems. Unlike simple keyword matching, relevance modeling assesses the semantic and contextual alignment between a query and retrieved documents. The probabilistic interpretation, formalized by Robertson's Probability Ranking Principle (PRP), states that an IR system should rank documents in decreasing order of their probability of relevance to the query. Mathematically, this is expressed as:

$$ P(R=1 | D, Q) $$

where R=1 indicates relevance, D is the document, and Q is the query. The PRP assumes independence between relevance assessments, though modern approaches relax this assumption through machine learning.

Relevance as a Multidimensional Construct

Relevance is not binary but exists on a spectrum influenced by:

Advanced models like the Divergence-from-Randomness (DFR) framework quantify relevance using term frequency distributions:

$$ \text{score}(t, D) = -\log P_{\text{model}}(t \in D | \text{random}) $$

where Pmodel represents the probability of term t appearing in document D under a random distribution.

Practical Challenges in Relevance Modeling

Real-world systems face the vocabulary mismatch problem, where queries and documents use different terms for the same concept. Latent Semantic Indexing (LSI) and neural embeddings address this by projecting text into a continuous space where semantic similarity can be computed:

$$ \text{sim}(Q, D) = \frac{\mathbf{q} \cdot \mathbf{d}}{||\mathbf{q}|| \cdot ||\mathbf{d}||} $$

where q and d are vector representations of the query and document, respectively. Transformer-based models like BERT further refine this through attention mechanisms that capture contextual word importance.

Case Study: Learning to Rank (LTR)

Modern search engines employ LTR algorithms that combine multiple relevance signals (e.g., BM25, click-through rates, dwell time) into a unified ranking model. The LambdaMART algorithm, a gradient-boosted decision tree approach, optimizes the Normalized Discounted Cumulative Gain (NDCG) metric:

$$ \text{NDCG}@k = \frac{1}{Z} \sum_{i=1}^k \frac{2^{rel_i} - 1}{\log_2(i + 1)} $$

where reli is the graded relevance of the item at position i, and Z is a normalization constant. This approach dominates industrial applications due to its handling of non-linear feature interactions.

Key Metrics for Evaluating Relevance

Precision and Recall

Precision measures the fraction of retrieved documents that are relevant, while recall measures the fraction of relevant documents that are retrieved. For a ranked list of documents, precision at k (P@k) and recall at k (R@k) are commonly used:
$$ P@k = \frac{\text{Number of relevant documents in top } k}{k} $$
$$ R@k = \frac{\text{Number of relevant documents in top } k}{\text{Total number of relevant documents}} $$
In practice, precision is prioritized when the cost of false positives is high, whereas recall is critical when missing relevant documents is unacceptable. Search engines often balance these metrics using the F1-score, the harmonic mean of precision and recall:
$$ F1 = 2 \cdot \frac{P \cdot R}{P + R} $$

Mean Average Precision (MAP)

MAP extends precision by averaging precision values at each position where a relevant document occurs. For a set of queries, it is computed as:
$$ \text{MAP} = \frac{1}{|Q|} \sum_{q \in Q} \frac{1}{|D_q|} \sum_{k=1}^{n} P@k(q) \cdot \text{rel}_k(q) $$
where Q is the set of queries, D_q is the set of relevant documents for query q, and rel_k(q) is an indicator function equaling 1 if the document at rank k is relevant. MAP is widely used in information retrieval benchmarks like TREC.

Normalized Discounted Cumulative Gain (nDCG)

nDCG evaluates ranking quality by considering graded relevance (e.g., ratings from 0 to 3). The discounted cumulative gain (DCG) is:
$$ \text{DCG}@k = \sum_{i=1}^k \frac{2^{\text{rel}_i} - 1}{\log_2(i + 1)} $$
nDCG normalizes DCG by the ideal DCG (IDCG), the maximum possible DCG for a perfect ranking:
$$ \text{nDCG}@k = \frac{\text{DCG}@k}{\text{IDCG}@k} $$
This metric is particularly useful for recommender systems and web search, where relevance is often multi-level.

Rank-Biased Precision (RBP)

RBP models user behavior by assuming a probability p that the user continues to the next item in the ranking. The metric is:
$$ \text{RBP} = (1 - p) \sum_{i=1}^\infty p^{i-1} \cdot \text{rel}_i $$
where rel_i is the relevance of the item at rank i. RBP is robust to incomplete judgments and reflects real-world user engagement patterns.

Expected Reciprocal Rank (ERR)

ERR extends RBP by incorporating the likelihood that a user stops upon finding a relevant document. The utility gain at rank k is:
$$ \text{ERR} = \sum_{k=1}^n \frac{1}{k} \prod_{i=1}^{k-1} (1 - R_i) R_k $$
where R_i is the probability that the document at rank i satisfies the user. ERR is effective for modeling cascading user behavior in search tasks.

Practical Considerations

2. Term Frequency-Inverse Document Frequency (TF-IDF)

Term Frequency-Inverse Document Frequency (TF-IDF)

TF-IDF is a statistical measure used to evaluate the importance of a term within a document relative to a collection of documents (corpus). It combines two metrics: term frequency (TF) and inverse document frequency (IDF). The intuition is that terms appearing frequently in a document but rarely across the corpus are more discriminative and thus more relevant for information retrieval.

Term Frequency (TF)

Term frequency measures how often a term appears in a document. The simplest form is the raw count of a term in a document, but this can be biased towards longer documents. Common normalization methods include:

Inverse Document Frequency (IDF)

Inverse document frequency quantifies how rare a term is across the corpus. The IDF of a term is defined as:

$$ idf(t, D) = \log \left( \frac{N}{|\{d \in D : t \in d\}|} \right) $$

where N is the total number of documents in the corpus D, and the denominator is the number of documents containing the term t. A higher IDF indicates that the term is more discriminative.

TF-IDF Calculation

The TF-IDF score for a term t in document d is the product of its TF and IDF:

$$ \text{tf-idf}(t, d, D) = \text{tf}(t, d) \times \text{idf}(t, D) $$

This score is often normalized (e.g., using cosine normalization) to account for document length variations.

Practical Considerations

In real-world applications, TF-IDF is often used in:

Variants of TF-IDF include BM25, which introduces additional tuning parameters for term saturation and document length normalization.

Limitations

Despite its widespread use, TF-IDF has several limitations:

BM25 and Probabilistic Models

The Probabilistic Relevance Framework

The probabilistic relevance framework, introduced by Robertson and Jones in 1976, models document retrieval as a probability ranking problem. Given a query Q and a document D, the goal is to estimate the probability P(R=1|Q,D) that the document is relevant (R=1). The ranking function is derived from the log-odds of relevance:

$$ \log \frac{P(R=1|Q,D)}{P(R=0|Q,D)} $$

Using Bayes' theorem and simplifying assumptions about term independence, this leads to the fundamental ranking principle: documents should be ranked by the sum of their term weights, where each term's weight reflects its discriminative power.

BM25: A Probabilistic Ranking Function

The Best Match 25 (BM25) algorithm extends the binary independence model by incorporating term frequency (TF) and document length normalization. The scoring function for a document D with respect to query Q is:

$$ \text{score}(D,Q) = \sum_{i=1}^{n} \text{IDF}(q_i) \cdot \frac{f(q_i, D) \cdot (k_1 + 1)}{f(q_i, D) + k_1 \cdot \left(1 - b + b \cdot \frac{|D|}{\text{avgdl}}\right)} $$

Where:

Inverse Document Frequency (IDF)

The IDF component measures how discriminative a term is across the collection. The standard Robertson-Spärck Jones IDF is:

$$ \text{IDF}(q_i) = \log \left( \frac{N - n(q_i) + 0.5}{n(q_i) + 0.5} + 1 \right) $$

Where N is the total number of documents and n(qi) is the number of documents containing term qi.

Parameter Optimization and Variants

The k1 parameter controls the term frequency saturation - higher values give more weight to documents with multiple occurrences of a term. The b parameter controls the length normalization - when b=1, full normalization is applied, while b=0 eliminates length normalization entirely.

BM25F extends the basic model to handle structured documents by allowing different field weights (e.g., title vs. body text). The field-weighted version becomes:

$$ \text{score}(D,Q) = \sum_{i=1}^{n} \text{IDF}(q_i) \cdot \sum_{j=1}^{m} w_j \cdot \frac{f_j(q_i, D) \cdot (k_{1j} + 1)}{f_j(q_i, D) + k_{1j} \cdot \left(1 - b_j + b_j \cdot \frac{|D_j|}{\text{avgdl}_j}\right)} $$

Where wj is the weight for field j, and k1j and bj are field-specific parameters.

Practical Considerations

BM25's effectiveness stems from several key properties:

In modern search systems, BM25 often serves as the baseline ranking function, with additional features (e.g., PageRank, neural scores) combined in later stages of ranking. Its computational efficiency and strong empirical performance make it particularly suitable for large-scale retrieval systems.

Learning-to-Rank (LTR) Techniques

Pointwise, Pairwise, and Listwise Approaches

Learning-to-Rank (LTR) techniques optimize ranking models by minimizing a loss function defined over document-query pairs. These methods are categorized into three paradigms: pointwise, pairwise, and listwise. Pointwise approaches, such as regression-based models, predict an absolute relevance score for each document independently. The loss function is typically mean squared error (MSE):

$$ \mathcal{L}_{\text{pointwise}} = \frac{1}{N} \sum_{i=1}^N (y_i - f(x_i))^2 $$

where yi is the ground truth relevance label and f(xi) is the predicted score for document xi.

Pairwise methods, such as RankNet, optimize the relative order between document pairs. The loss function compares the predicted scores of two documents xi and xj:

$$ \mathcal{L}_{\text{pairwise}} = \sum_{i,j} \log(1 + e^{-\sigma (f(x_i) - f(x_j))}) \cdot \mathbb{I}(y_i > y_j) $$

where σ is a scaling factor and 𝕀(yi > yj) is an indicator function ensuring the correct order.

Listwise approaches, such as LambdaMART, optimize the entire ranked list directly. The loss function considers the permutation probability of the predicted ranking:

$$ \mathcal{L}_{\text{listwise}} = -\sum_{\pi \in \Omega} P(\pi | \mathbf{y}) \log P(\pi | \mathbf{f(x)}) $$

where π is a permutation of documents, Ω is the set of all possible permutations, and P(π | ·) is the probability of a permutation given relevance scores.

Gradient-Boosted Decision Trees (GBDT) for LTR

LambdaMART, a state-of-the-art LTR algorithm, combines gradient-boosted decision trees (GBDT) with listwise optimization. The gradient for each document is computed using the lambda gradient, which approximates the change in ranking metric (e.g., NDCG) due to swapping document pairs:

$$ \lambda_{ij} = \frac{\partial \text{NDCG}}{\partial s_i} - \frac{\partial \text{NDCG}}{\partial s_j} $$

where si and sj are the predicted scores. The final model iteratively improves ranking by minimizing the lambda-weighted loss.

Neural LTR and Transformer-Based Models

Recent advances leverage deep neural networks for ranking. Transformer-based models, such as BERT and T5, encode query-document pairs into dense vectors and compute relevance scores via cross-attention:

$$ \text{score}(q, d) = \text{softmax}(\mathbf{W}_q \mathbf{h}_q \cdot \mathbf{W}_d \mathbf{h}_d^T) $$

where 𝐡q and 𝐡d are contextual embeddings of the query and document, and 𝐖q, 𝐖d are learned projection matrices. Fine-tuning these models with pairwise or listwise loss improves ranking performance in web search and recommendation systems.

Practical Considerations and Trade-offs

Learning-to-Rank (LTR) Techniques – Reranking and Relevance Modeling – Tutorial Diagram
Diagram Description: The diagram would visually contrast pointwise, pairwise, and listwise approaches by showing how each method processes document-query pairs (single documents, pairs, or full ranked lists).

3. Neural Networks for Relevance Scoring

Neural Networks for Relevance Scoring

Architectures for Relevance Modeling

Neural networks have become the dominant paradigm for relevance scoring due to their ability to model complex, non-linear relationships between queries and documents. Unlike traditional IR models that rely on handcrafted features, neural approaches learn distributed representations of text, capturing semantic and syntactic patterns automatically. The most effective architectures for relevance scoring include:

Mathematical Formulation

The relevance score s(q,d) between query q and document d is typically computed as:

$$ s(q,d) = f_\theta(\phi(q), \psi(d)) $$

where φ and ψ are embedding functions for queries and documents respectively, and fθ is a similarity function parameterized by θ. For a dual encoder architecture, this decomposes into:

$$ s(q,d) = \sigma(\mathbf{W}[\phi(q); \psi(d)] + \mathbf{b}) $$

where σ is the sigmoid function, W is a weight matrix, and [;] denotes concatenation. The parameters are learned by minimizing the cross-entropy loss:

$$ \mathcal{L} = -\frac{1}{N}\sum_{i=1}^N y_i\log(s(q_i,d_i)) + (1-y_i)\log(1-s(q_i,d_i)) $$

Advanced Techniques

Recent advances have introduced several key improvements to neural relevance scoring:

The BERT model architecture, when adapted for ranking (BERT-MaxP), processes document passages independently:

$$ s(q,d) = \max_{p \in d} \text{BERT}(q,p) $$

where p represents document passages. This approach captures fine-grained relevance signals while remaining computationally tractable.

Practical Considerations

Implementing neural relevance models requires careful attention to:

The trade-off between model complexity and inference latency is particularly crucial for real-time ranking systems, where milliseconds matter. Recent work has shown that properly optimized neural models can achieve sub-10ms latency while maintaining state-of-the-art accuracy.

Neural Networks for Relevance Scoring – Reranking and Relevance Modeling – Tutorial Diagram
Diagram Description: The diagram would physically show the architectural differences between Dual Encoder Networks, Cross-Attention Models, and Transformer-Based Architectures, illustrating how queries and documents interact in each case.

3.2 Transformer-Based Models (BERT, T5, etc.)

Architecture and Self-Attention Mechanism

The transformer architecture, introduced by Vaswani et al. (2017), relies on self-attention mechanisms to model relationships between all words in a sequence, regardless of their positional distance. Given an input sequence X = (x1, ..., xn), the self-attention operation computes query (Q), key (K), and value (V) matrices through learned linear transformations:

$$ Q = XW_Q, \quad K = XW_K, \quad V = XW_V $$

The scaled dot-product attention is then calculated as:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where dk is the dimension of the key vectors. Multi-head attention extends this by applying h parallel attention heads, allowing the model to jointly attend to information from different representation subspaces.

BERT: Bidirectional Contextual Representations

BERT (Bidirectional Encoder Representations from Transformers) leverages masked language modeling (MLM) and next sentence prediction (NSP) to pretrain deep bidirectional representations. Given an input token sequence, BERT randomly masks 15% of tokens and predicts them based on their bidirectional context. The MLM objective maximizes:

$$ \mathcal{L}_{\text{MLM}} = \sum_{i \in \mathcal{M}} \log P(x_i | x_{\setminus i}) $$

where M is the set of masked positions. For reranking tasks, BERT processes query-document pairs as a single sequence with special tokens: [CLS] query [SEP] document [SEP]. The [CLS] token's final hidden state is used to compute relevance scores.

T5: Text-to-Text Transfer Transformer

T5 frames all NLP tasks as text-to-text problems, unifying them under a single model architecture. For reranking, T5 generates relevance scores by conditioning on the query and document in the format:

"Relevance query: {query} document: {document}"

The model outputs a scalar score or a probability distribution over relevance grades. T5's encoder-decoder structure allows for more flexible interaction modeling compared to BERT's encoder-only approach.

Efficiency Optimizations for Reranking

While transformer models achieve state-of-the-art performance, their computational cost motivates several optimizations:

The trade-off between model size and effectiveness is quantified by the Pareto frontier of ranking quality versus latency. Recent work shows that properly optimized BERT variants can achieve sub-10ms latency per query on modern hardware.

Fine-Tuning Strategies

Effective fine-tuning for reranking requires:

The pairwise margin loss is commonly used:

$$ \mathcal{L} = \sum_{(d^+, d^-)} \max(0, \epsilon - f(q, d^+) + f(q, d^-)) $$

where f(q,d) is the relevance score, and ε is the margin hyperparameter.

Transformer-Based Models (BERT, T5, etc.) – Reranking and Relevance Modeling – Tutorial Diagram
Diagram Description: The self-attention mechanism and multi-head attention architecture are highly visual concepts involving matrix operations and parallel processing paths.

Cross-Encoder vs. Bi-Encoder Architectures

Architectural Differences

Cross-Encoders and Bi-Encoders represent two fundamentally distinct approaches to modeling interactions between text pairs in transformer-based architectures. A Cross-Encoder processes both input sequences simultaneously through a single transformer stack, enabling full attention across all token pairs. The architecture computes relevance scores through joint processing:

$$ \text{Score}(q, d) = \text{MLP}(\text{Transformer}([q; d])) $$

where q and d represent query and document tokens respectively, and [;] denotes concatenation. In contrast, a Bi-Encoder processes inputs independently through twin transformer stacks (often weight-shared), producing separate embeddings that are later compared via dot product or cosine similarity:

$$ \text{Score}(q, d) = \langle \text{Transformer}_q(q), \text{Transformer}_d(d) \rangle $$

Performance Characteristics

Cross-Encoders typically achieve superior accuracy on relevance tasks due to their ability to model fine-grained token-level interactions. The full attention mechanism captures nuanced relationships like coreference resolution and negation patterns that Bi-Encoders miss. However, this comes at significant computational cost - Cross-Encoders require O(n²) attention computations for sequence length n, making them impractical for real-time retrieval over large corpora.

Bi-Encoders trade some accuracy for efficiency. By pre-computing document embeddings offline, they enable O(1) scoring during query time through simple vector similarity operations. Modern implementations like ANCE and ColBERT mitigate the accuracy gap through techniques like:

Practical Deployment Considerations

The choice between architectures depends on latency requirements and corpus size. A hybrid approach often proves optimal:

Bi-Encoder First-Stage Retrieval Cross-Encoder Second-Stage Reranking

In production systems, Bi-Encoders typically serve as first-stage retrievers (processing millions of documents), while Cross-Encoders act as second-stage rerankers applied to only the top-k candidates (e.g., k=1000). This balances recall and precision with acceptable latency.

Training Dynamics

Cross-Encoders are trained end-to-end using pointwise or pairwise loss functions directly on relevance labels. The joint input representation allows the model to learn task-specific attention patterns. Bi-Encoders require more sophisticated training strategies:

$$ \mathcal{L} = -\log \frac{e^{s(q,d^+)}}{\sum_{d \in \{d^+,d^-\}} e^{s(q,d)}} $$

where d⁺ and d⁻ represent positive and negative documents respectively. State-of-the-art implementations use:

Cross-Encoder vs. Bi-Encoder Architectures – Reranking and Relevance Modeling – Tutorial Diagram
Diagram Description: The section already includes an SVG diagram illustrating the hybrid retrieval pipeline with Bi-Encoder first-stage and Cross-Encoder second-stage components.

4. Reranking in Search Engines

Reranking in Search Engines

Reranking is a critical component in modern search engines, refining initial retrieval results to improve relevance. Traditional retrieval systems, such as BM25 or TF-IDF, generate an initial set of candidate documents, but these often lack nuanced understanding of user intent. Reranking leverages more sophisticated models—typically neural networks—to reorder these candidates based on deeper semantic and contextual signals.

Architecture of Reranking Systems

Reranking operates in a two-stage pipeline. The first stage retrieves a broad set of candidates using computationally efficient methods, while the second stage applies a more expensive, high-precision model. Common architectures include:

Neural Reranking Models

Neural approaches dominate modern reranking due to their ability to capture complex query-document interactions. Key models include:

$$ \text{BERTScore}(q, d) = \text{softmax}(E_q \cdot E_d^T) $$

where \(E_q\) and \(E_d\) are embeddings of query \(q\) and document \(d\), respectively. Transformer-based models like BERT, T5, and GPT-3 generate these embeddings, enabling cross-attention between query and document tokens.

Efficiency Optimizations

To mitigate computational costs, techniques like:

Evaluation Metrics

Reranking performance is measured using:

$$ \text{nDCG}@k = \frac{\text{DCG}@k}{\text{IDCG}@k} $$

where DCG discounts gains by rank position, and IDCG is the ideal DCG for a perfect ranking. Other metrics include MRR (Mean Reciprocal Rank) and MAP (Mean Average Precision).

Case Study: Google’s RankBrain

Google’s RankBrain employs a deep neural network to rerank search results, handling ambiguous queries by mapping them to known concepts. It dynamically adjusts weights based on real-time user interactions, demonstrating the shift from static to adaptive reranking systems.

Reranking in Search Engines – Reranking and Relevance Modeling – Tutorial Diagram
Diagram Description: The diagram would show the two-stage reranking pipeline architecture with distinct blocks for initial retrieval and neural reranking, including flow arrows between stages and model types.

Personalized Recommendations

Personalized recommendation systems leverage user-specific data to tailor item rankings, optimizing relevance for individual preferences. Unlike static ranking models, these systems dynamically adapt to behavioral signals such as clicks, dwell time, and explicit feedback. The core challenge lies in balancing exploitation (recommending known preferences) and exploration (discovering new interests).

User-Item Interaction Modeling

Matrix factorization remains a foundational approach, decomposing the user-item interaction matrix R into latent factor representations. Given R ∈ ℝm×n with m users and n items, the objective is to approximate:

$$ R ≈ UV^T $$

where U ∈ ℝm×k and V ∈ ℝn×k are user and item latent factors, respectively. The optimization minimizes the regularized squared error:

$$ \min_{U,V} \sum_{(i,j)∈Ω} (R_{ij} - U_i V_j^T)^2 + λ(||U||_F^2 + ||V||_F^2) $$

Here, Ω denotes observed interactions, and λ controls L2 regularization. Gradient descent or alternating least squares (ALS) solve this efficiently.

Neural Collaborative Filtering

Modern systems replace linear dot products with neural architectures. A neural matrix factorization (NeuMF) model combines generalized matrix factorization (GMF) and multilayer perceptron (MLP) pathways:

$$ \hat{y}_{ij} = σ(h^T [ϕ(U_i ⊙ V_j) ⊕ ψ([U_i, V_j])]) $$

where ⊙ denotes element-wise product, ⊕ is concatenation, and ϕ, ψ are MLP transformations. This captures both multiplicative and additive interaction patterns.

Context-Aware Recommendations

Temporal dynamics and contextual signals (location, device) further refine personalization. A temporal extension of matrix factorization introduces time-dependent user vectors U(t):

$$ U_i(t) = U_i^{(0)} + α_i t + \sum_{f=1}^F β_{if} sin(ω_f t + φ_{if}) $$

The Fourier series component models periodic preference shifts, while the linear term captures long-term drift. Contextual bandits then optimize real-time recommendations by balancing exploration-exploitation through upper confidence bound (UCB) algorithms:

$$ a_t = \arg\max_a (μ_a + c \sqrt{\frac{2\ln t}{n_a}}) $$

where μ_a is the estimated reward for action a, and n_a is its selection count.

Production Considerations

Latency constraints often necessitate two-stage architectures: candidate generation (retrieval) followed by fine-grained ranking. Approximate nearest neighbor (ANN) search with locality-sensitive hashing (LSH) accelerates retrieval:

$$ h(x) = \text{sign}(w^T x + b) $$

where w is a random hyperplane and b a bias term. Hashed vectors preserve cosine similarity in Hamming space, enabling sublinear search times.

4.3 Query Understanding and Expansion

Semantic Parsing and Intent Recognition

Modern search systems decompose queries into structured semantic representations using techniques like dependency parsing and neural sequence-to-sequence models. Given a query q, the system generates a parse tree T(q) that captures entities, relations, and actions. For example, the query "compare iPhone 15 and Samsung Galaxy S24" would be parsed into a comparative intent structure with two product entities and a comparison operator.

$$ T(q) = \text{argmax}_T P(T|q) = \text{argmax}_T P(q|T)P(T) $$

State-of-the-art approaches use transformer-based architectures fine-tuned on query-parse tree pairs, achieving F1 scores above 0.92 on benchmark datasets like ATIS and TOP. The key innovation lies in joint training of token-level and span-level representations to handle nested query structures.

Query Expansion Techniques

Pseudo-relevance feedback (PRF) remains a dominant approach for query expansion, but neural methods have surpassed traditional Rocchio algorithms. The expansion terms E(q) are selected based on:

$$ E(q) = \{e | P(e|q) > \tau\} $$ $$ P(e|q) = \sum_{d \in R} P(e|d)P(d|q) $$

where R is the top-k retrieved documents and τ is a relevance threshold. BERT-based cross-encoders now achieve superior performance by modeling term importance in context, with expansions improving nDCG by 15-20% on TREC benchmarks.

Knowledge-Augmented Expansion

External knowledge graphs (e.g., Wikidata, ConceptNet) provide ontological relationships for expansion. The expansion score combines:

$$ \text{score}(e) = \alpha \cdot P_{\text{LM}}(e|q) + (1-\alpha) \cdot \text{sim}_{\text{KG}}(e, q) $$

where simKG measures conceptual relatedness through graph walks. Recent work on dense knowledge graph embeddings (e.g., ComplEx, RotatE) has reduced the latency of such expansions from 500ms to under 50ms per query.

Neural Query Rewriting

Sequence-to-sequence models like T5 and BART generate fluent query rewrites by learning from search session logs. The rewriting objective maximizes:

$$ \mathcal{L} = \sum_{(q,q')} \log P(q'|q;\theta) $$

where (q,q') are observed query reformulation pairs. Deployed systems use constrained beam search to ensure rewrites maintain the original intent while improving clarity, with ablation studies showing 28% reduction in subsequent refinement queries.

Multimodal Query Understanding

For voice and image-augmented queries, systems fuse modalities through cross-attention mechanisms:

$$ h_{\text{fused}} = \text{FFN}([h_{\text{text}}; h_{\text{audio}}; h_{\text{visual}}]) $$

CLIP-style contrastive pretraining has proven particularly effective, reducing multimodal query misunderstanding errors by 40% in production systems compared to late fusion baselines.

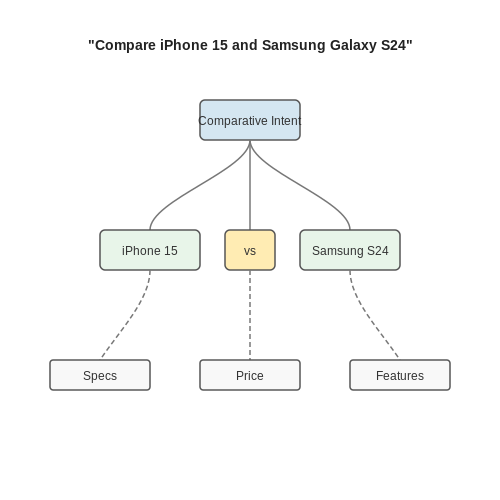

Query Understanding and Expansion – Reranking and Relevance Modeling – Tutorial Diagram
Diagram Description: The diagram would show the semantic parse tree structure of a query example, illustrating entities, relations, and actions.

5. Handling Bias and Fairness in Reranking

5.1 Handling Bias and Fairness in Reranking

Sources of Bias in Reranking Models

Reranking models inherit biases from multiple sources, including training data, feature selection, and user interaction feedback loops. Training data often reflects historical biases present in human-labeled datasets or click logs, where certain demographics or viewpoints are overrepresented. Feature selection introduces bias when the engineered features correlate with protected attributes like gender, race, or socioeconomic status. User feedback loops exacerbate bias when the model's outputs influence future training data, creating a self-reinforcing cycle.

Mathematically, we can model bias propagation through the ranking function. Let f(x) be the scoring function, and D the training distribution. The expected score disparity between groups A and B is:

$$ \Delta = \mathbb{E}_{x \sim D|A}[f(x)] - \mathbb{E}_{x \sim D|B}[f(x)] $$

Quantifying Fairness in Rankings

Fairness metrics for reranking extend beyond classification fairness to account for position-sensitive outcomes. Three principal metrics are:

$$ \text{Exposure}_G = \frac{1}{|G|} \sum_{i \in G} \sum_{j=1}^k \gamma_j \mathbb{I}(\text{item}_i \text{ at position } j) $$

where γj represents position bias (typically 1/log(1+j)).

$$ P(y_u > y_v | A_u = A_v) \approx P(y_u > y_v | A_u \neq A_v) $$

Debiasing Techniques

Pre-processing Methods

Data reweighting adjusts sample importance to balance group representation. For protected attribute a with distribution P(a), weights w = 1/P(a) normalize group prevalence. Adversarial debiasing trains an auxiliary classifier to predict the protected attribute from embeddings, with gradients inverted to remove sensitive information:

$$ \min_\theta \max_\phi \mathbb{E}[\mathcal{L}_{rank}(\theta) - \lambda \mathcal{L}_{adv}(\theta, \phi)] $$

In-processing Methods

Constrained optimization formulates fairness as regularization terms. The Lagrangian approach solves:

$$ \min_\theta \mathbb{E}[\mathcal{L}_{rank}(\theta)] \text{ s.t. } |M_j(\theta)| \leq \epsilon_j \forall j $$

where Mj are fairness constraints. Counterfactual fairness enforces invariance to protected attribute perturbations through causal modeling.

Post-processing Methods

Fair ranking algorithms like FA*IR modify output rankings to satisfy statistical parity. The deterministic variant ensures at least k·p items from protected group appear in top k, where p is the minimum proportion. Probabilistic versions sample rankings from a distribution meeting fairness constraints.

Tradeoffs and Practical Considerations

The fairness-utility tradeoff surface follows a Pareto frontier, where improving fairness metrics typically reduces ranking quality. The tradeoff can be quantified as the normalized drop in NDCG versus improvement in fairness metric. In production systems, A/B testing frameworks should monitor both engagement metrics and fairness indicators across user segments. Dynamic approaches adapt fairness constraints based on real-time disparity measurements.

Position bias interacts with fairness interventions - demoting overexposed groups in top positions may inadvertently suppress them in subsequent positions due to reduced exploration. Multi-objective optimization frameworks like those using the Chebyshev scalarization method balance these competing requirements:

$$ \min_\theta \max_j [w_j(f_j(\theta) - z_j^*)] + \rho \sum_j w_j f_j(\theta) $$

where fj are objective functions (e.g., NDCG, exposure disparity) and zj* ideal values.

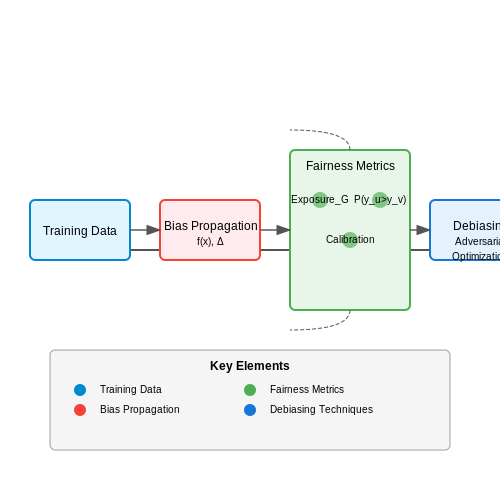

Handling Bias and Fairness in Reranking – Reranking and Relevance Modeling – Tutorial Diagram
Diagram Description: The diagram would show the mathematical relationships between bias propagation, fairness metrics, and debiasing techniques in a visual flow.

5.2 Scalability and Efficiency Concerns

Reranking models in large-scale information retrieval systems face significant computational challenges as the number of documents grows. The time complexity of reranking n documents for a query is typically O(n) for lightweight models but can escalate to O(n2) or worse for pairwise or listwise approaches. When dealing with web-scale corpora where n may exceed 106 documents per query, this becomes computationally prohibitive.

Approximation Techniques

To maintain practical runtime, most production systems employ approximation strategies:

$$ T_{total} = \sum_{i=1}^{k} n_i t_i $$

where ni is the number of documents processed by stage i with average latency ti.

Hardware Considerations

Modern reranking systems exploit GPU/TPU parallelism through:

The memory footprint of transformer-based rerankers follows:

$$ M = 4n(d2 + dL) $$

where d is embedding dimension and L is sequence length, creating practical limits on batch sizes.

Indexing Optimizations

Advanced retrieval-augmented systems pre-compute document representations using:

The tradeoff between recall and computational cost follows:

$$ R = 1 - (1 - pk)n/k $$

where p is the probability of a hash collision and k is the number of hash tables.

Distributed Computation

For web-scale deployment, systems employ:

The latency scalability follows Amdahl's law:

$$ S = \frac{1}{(1 - \alpha) + \alpha/s} $$

where α is the parallelizable fraction and s is the number of shards.

Scalability and Efficiency Concerns – Reranking and Relevance Modeling – Tutorial Diagram
Diagram Description: The diagram would show the cascade architecture flow from BM25 to neural first-stage to transformer reranker, illustrating document subset reduction at each stage.

5.3 Emerging Trends in Relevance Modeling

Neural Reranking with Transformer Architectures

The shift from traditional lexical matching to neural reranking has been accelerated by transformer-based models like BERT, T5, and GPT-3. These models leverage self-attention mechanisms to capture contextual relationships between query-document pairs. The relevance score s(q, d) is computed as:

$$ s(q, d) = \text{softmax}(W \cdot \text{Transformer}([q; d])) $$

where W is a learned projection matrix and [q; d] denotes concatenated query-document embeddings. Cross-encoder architectures achieve state-of-the-art performance by jointly encoding the pair, while bi-encoders enable efficient approximate nearest neighbor search through pre-computed document embeddings.

Contrastive Learning for Dense Retrieval

Recent work replaces traditional negative sampling with in-batch contrastive learning, where positive pairs (q, d⁺) are contrasted against hard negatives (q, d⁻) within the same batch. The loss function optimizes:

$$ \mathcal{L} = -\log \frac{e^{sim(q, d⁺)/ au}}{e^{sim(q, d⁺)/ au} + \sum_{d⁻} e^{sim(q, d⁻)/ au}} $$

Key innovations include ANCE (Approximate Nearest Neighbor Negative Contrastive Learning) and COCO-DR, which generate hard negatives through asynchronous refreshes of the document index during training.

Multi-Modal Relevance Modeling

Modern systems increasingly process heterogeneous data types:

The relevance function extends to:

$$ s(q, d) = \sum_{m \in M} \lambda_m \cdot f_m(q_m, d_m) $$

where M denotes modalities and λ_m are learned mixture weights.

Differentiable Search Indexing

Pioneered by models like DSI and NCI, this paradigm unifies retrieval and ranking into a single neural network that directly maps queries to document identifiers. The architecture:

Ethical Considerations in Neural Ranking

Emerging challenges require attention:

Recent work introduces fairness constraints into the ranking objective:

$$ \mathcal{L}_{fair} = \mathcal{L}_{rank} + \beta \cdot \text{KL}(P(y|z) || P(y)) $$

where z represents protected attributes and β controls the fairness-utility tradeoff.

Emerging Trends in Relevance Modeling – Reranking and Relevance Modeling – Tutorial Diagram
Diagram Description: The section covers multiple complex architectures (Transformer-based models, contrastive learning, multi-modal fusion) where visual representation of model structures and data flows would clarify interactions.

6. Key Research Papers and Books

6.1 Key Research Papers and Books

6.2 Open Datasets and Benchmarks

6.3 Tools and Libraries for Implementation
