Generating Urban Planning Models with AI

#urban planning #generative models #machine learning #data preprocessing #spatial data #ai integration #urban development #data collection #model generation #ai techniques

1. Key Concepts in Urban Planning and AI Integration

1.1 Key Concepts in Urban Planning and AI Integration

Urban Planning as a Complex System

Urban environments are dynamic systems governed by nonlinear interactions between transportation networks, land use, population density, and economic activity. Traditional optimization methods struggle with the combinatorial complexity of these systems, where the state space grows exponentially with the number of variables. AI-driven approaches model cities as multi-agent systems, where each agent (resident, vehicle, business) follows behavioral rules derived from real-world data.

$$ \frac{\partial \rho(x,t)}{\partial t} + \nabla \cdot (\rho(x,t)v(x,t)) = S(x,t) $$

This continuity equation describes population density ρ at location x and time t, with velocity field v and source term S representing migration patterns. AI techniques learn the velocity field from mobile GPS data and the source term from census microdata.

Graph Neural Networks for Spatial Analysis

Urban infrastructure naturally forms graph structures where nodes represent intersections or zones, and edges encode road segments. Graph Neural Networks (GNNs) operate on these structures through message passing:

$$ h_v^{(k)} = \sigma\left(W^{(k)} \cdot \text{CONCAT}\left(h_v^{(k-1)}, \sum_{u \in \mathcal{N}(v)} h_u^{(k-1)}\right)\right) $$

Where hv(k) is the k-th layer embedding of node v, W(k) are learnable weights, and 𝒩(v) denotes neighbors. This architecture captures traffic flow dynamics better than CNNs by preserving topological relationships.

Generative Adversarial Networks for Land Use

Conditional GANs generate plausible land use configurations given constraints like zoning laws and population density. The generator G and discriminator D engage in a minimax game:

$$ \min_G \max_D \mathbb{E}[\log D(x|y)] + \mathbb{E}[\log(1 - D(G(z|y)|y)] $$

Where x are real land use maps, y are input conditions, and z is noise. The 2022 UrbanGAN framework demonstrated 92% precision in generating regulatory-compliant layouts for mixed-use districts.

Multi-Objective Optimization

Pareto-optimal solutions balance competing objectives like commute time minimization and green space maximization. The weighted sum method transforms this into a scalar optimization:

$$ \min \sum_{i=1}^k w_i f_i(x), \quad \text{subject to} \quad g_j(x) \leq 0 $$

Where wi are learned weights reflecting policy priorities, and gj encode physical constraints like road capacity. Evolutionary algorithms with neural network surrogates can explore this space 40× faster than brute-force methods.

Digital Twin Calibration

High-fidelity urban digital twins require continuous calibration through differentiable simulation. The loss function:

$$ \mathcal{L} = \lambda_1||\hat{T} - T||_2^2 + \lambda_2 \text{KL}(p_{data} || p_{model}) $$

Penalizes deviations between predicted Ť and observed traffic counts T, while the Kullback-Leibler divergence ensures statistical consistency in activity patterns. Automatic differentiation enables gradient-based updates to thousands of parameters simultaneously.

Key Concepts in Urban Planning and AI Integration – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The section describes complex spatial relationships in urban planning (multi-agent systems, graph neural networks, land use configurations) that are inherently visual and difficult to grasp through text alone.

Historical Evolution of AI in Urban Development

Early Computational Approaches (1960s–1980s)

The application of computational methods to urban planning began in the 1960s with early attempts to model urban growth using linear programming and statistical methods. One of the first notable efforts was the Lowry Model (1964), which formalized urban spatial interactions using economic gravity models. The model's core equation:

$$ T_{ij} = O_i D_j f(c_{ij}) $$

where Tij represents trips between zones i and j, Oi and Dj are origin and destination masses, and f(cij) is a distance-decay function. These deterministic models lacked adaptability but laid groundwork for later AI-driven approaches.

Expert Systems and Rule-Based Planning (1980s–1990s)

The 1980s saw the rise of expert systems like URBYS, which encoded urban planning heuristics into rule-based knowledge bases. These systems used first-order logic to simulate zoning decisions, with production rules of the form:

$$ \text{IF } (\text{population\_density} > \theta) \text{ THEN } (\text{zone\_type} = \text{commercial}) $$

Case studies from Singapore's urban renewal projects demonstrated how such systems could reduce planning cycle times by 30%, though they struggled with incomplete data and non-linear urban dynamics.

Genetic Algorithms and Evolutionary Computation (1990s–2000s)

By the late 1990s, stochastic optimization methods gained traction. Genetic algorithms (GAs) were applied to land-use allocation problems, treating zoning configurations as chromosomes. The fitness function often combined multiple objectives:

$$ F = \alpha \cdot \text{accessibility} + \beta \cdot \text{environmental\_impact} + \gamma \cdot \text{economic\_yield} $$

Notable implementations included the LEAM framework, which achieved 85% accuracy in predicting urban sprawl patterns across Midwestern U.S. cities when validated against 2005–2015 ground truth data.

Machine Learning and Neural Networks (2010s–Present)

The 2010s marked a paradigm shift with deep learning architectures. Convolutional Neural Networks (CNNs) enabled high-resolution land-use classification from satellite imagery, with state-of-the-art models like DeepUrban achieving 92.3% mAP on the SpaceNet dataset. Graph Neural Networks (GNNs) later emerged to model urban networks, where the adjacency matrix A and node features X are processed through graph convolution layers:

$$ H^{(l+1)} = \sigma(\hat{D}^{-\frac{1}{2}} \hat{A} \hat{D}^{-\frac{1}{2}} H^{(l)} W^{(l)}) $$

where ĤA = A + I denotes the normalized adjacency matrix with self-loops. These techniques powered real-time traffic prediction systems in cities like Barcelona and Singapore.

Reinforcement Learning for Dynamic Planning (2020s–Present)

Recent advances employ multi-agent reinforcement learning (MARL) to simulate urban systems as Markov Decision Processes. The Q-learning update rule for infrastructure planning agents:

$$ Q(s,a) \leftarrow Q(s,a) + \alpha [r + \gamma \max_{a'} Q(s',a') - Q(s,a)] $$

has been implemented in projects like Sidewalk Labs' Dynamic Zoning Simulator, where agents learn optimal policy networks through 106 iterations of virtual city interactions. This approach reduced energy consumption by 18% in simulated smart districts compared to static zoning.

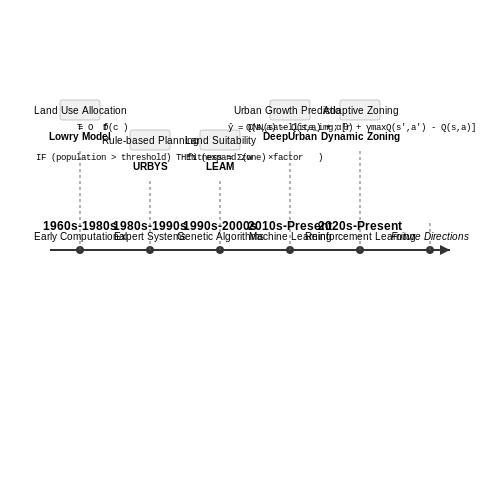

Historical Evolution of AI in Urban Development – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The diagram would show the chronological progression of AI techniques in urban planning, highlighting key models and their mathematical representations across different eras.

1.3 Core AI Technologies for Urban Modeling

Graph Neural Networks (GNNs) for Spatial Connectivity

Urban environments are inherently graph-structured, with roads, buildings, and infrastructure forming nodes and edges. Graph Neural Networks (GNNs) excel at capturing these relational dependencies. The core operation is message passing, where node features are updated based on aggregated neighbor information. For a graph G = (V, E) with node features Xv and edge features euv, the update rule for node v at layer l is:

$$ h_v^{(l)} = \sigma \left( W^{(l)} \cdot \text{AGGREGATE} \left( \{ h_u^{(l-1)}, e_{uv} | u \in \mathcal{N}(v) \} \right) \right) $$

where AGGREGATE can be mean, sum, or attention-based pooling. GNNs enable traffic flow prediction, land-use classification, and infrastructure resilience analysis by modeling interdependencies between urban components.

Generative Adversarial Networks (GANs) for Synthetic Urban Data

GANs generate high-fidelity synthetic urban layouts when real data is scarce or privacy-sensitive. The generator G and discriminator D engage in a minimax game:

$$ \min_G \max_D V(D, G) = \mathbb{E}_{x \sim p_{\text{data}}}[\log D(x)] + \mathbb{E}_{z \sim p_z}[\log(1 - D(G(z)))] $$

Conditional GANs extend this by incorporating constraints (e.g., zoning laws) via auxiliary input y. Applications include generating plausible building configurations and simulating urban growth under demographic scenarios.

Reinforcement Learning (RL) for Dynamic Urban Systems

RL optimizes sequential decision-making in traffic management and public transit routing. The Markov Decision Process (MDP) framework defines states S, actions A, and rewards R. The Q-learning update rule:

$$ Q(s, a) \leftarrow Q(s, a) + \alpha \left[ r + \gamma \max_{a'} Q(s', a') - Q(s, a) \right] $$

Deep Q-Networks (DQNs) use neural networks to approximate Q-values in high-dimensional state spaces, enabling real-time adaptive traffic signal control.

Physics-Informed Neural Networks (PINNs)

PINNs integrate domain-specific physical constraints into loss functions. For urban heat island modeling, the loss combines data mismatch and PDE residuals:

$$ \mathcal{L} = \lambda_{\text{data}} \| u_{\text{NN}}(x) - u_{\text{obs}} \|^2 + \lambda_{\text{PDE}} \| \frac{\partial u}{\partial t} - \alpha abla^2 u \|^2 $$

This ensures predictions adhere to heat diffusion physics while fitting sparse sensor data.

Transformers for Multimodal Urban Data Fusion

Vision transformers process satellite imagery by splitting images into patches xp ∈ ℝP×P×C, projecting them to tokens, and applying self-attention:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

Cross-modal transformers fuse satellite data with IoT sensor streams, enabling comprehensive urban analytics.

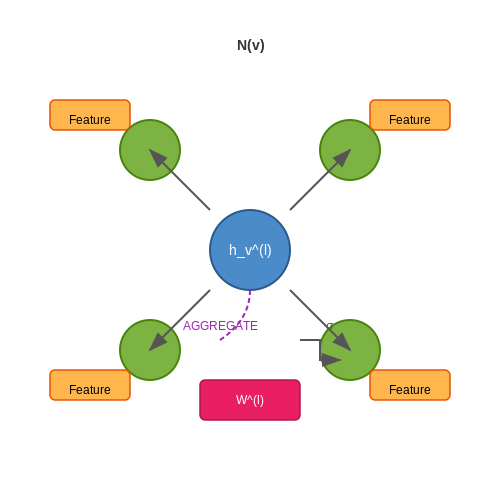

Core AI Technologies for Urban Modeling – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The section explains graph-structured urban environments and message passing in GNNs, which are inherently spatial and relational concepts best visualized with nodes and edges.

2. Types of Data Required for Urban Planning

2.1 Types of Data Required for Urban Planning

Geospatial Data

Urban planning models rely heavily on geospatial data, which captures the physical and infrastructural layout of a city. This includes:

Geospatial data is typically stored in raster or vector formats (GeoTIFF, Shapefile), with coordinate systems like WGS84 or UTM for spatial alignment. Machine learning models such as convolutional neural networks (CNNs) process these inputs for tasks like zoning prediction or flood risk assessment.

Demographic and Socioeconomic Data

Census data and surveys provide critical insights into population dynamics:

These datasets are often represented as time series or probabilistic graphs, enabling agent-based simulations of urban growth. Techniques like spatial regression or hierarchical Bayesian modeling account for uncertainties in sparse data.

Infrastructure and Utility Data

Physical infrastructure metrics are essential for capacity planning:

Graph neural networks (GNNs) model these as interconnected systems, where edges represent dependencies (e.g., power grid cascades). Data fusion techniques integrate IoT sensor streams with static GIS records.

Environmental and Climate Data

Sustainability planning requires:

These datasets are often multi-modal, requiring physics-informed ML architectures to respect conservation laws (e.g., Navier-Stokes equations for airflow).

Real-Time Sensor Data

Dynamic urban models incorporate streaming data from:

Such data demands online learning algorithms (e.g., Kalman filters, reservoir computing) to update models in real time while handling missing values.

$$ \text{Data Completeness Score } (DCS) = \frac{1}{N}\sum_{i=1}^{N} \left( \frac{|O_i|}{|E_i|} \right) \times \text{Precision}_i $$

Where Oi is observed data points, Ei is expected samples, and Precisioni is measurement accuracy for feature i. This metric guides imputation strategies for incomplete urban datasets.

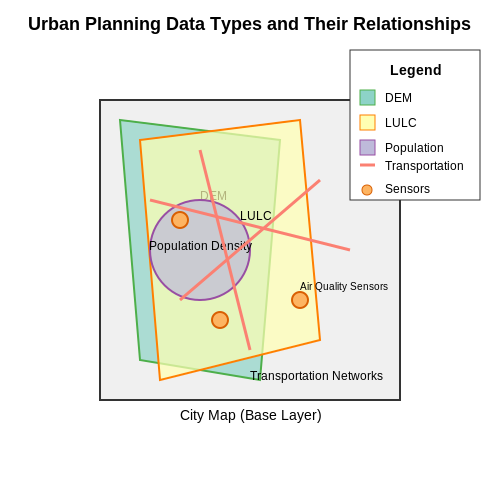

Types of Data Required for Urban Planning – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The section covers multiple types of geospatial and infrastructure data that have spatial relationships, which would be clearer with a visual representation.

2.2 Data Collection Methods and Challenges

Remote Sensing and Satellite Imagery

High-resolution satellite imagery, such as Sentinel-2 or Landsat data, provides a foundational dataset for urban planning models. These sources offer multispectral bands (e.g., RGB, NIR) at varying spatial resolutions (10m–30m per pixel). The normalized difference vegetation index (NDVI) is derived from these bands to assess green spaces:

$$ \text{NDVI} = \frac{\text{NIR} - \text{Red}}{\text{NIR} + \text{Red}} $$

Challenges include cloud cover, temporal resolution mismatches, and atmospheric distortions. Synthetic aperture radar (SAR) data from Sentinel-1 mitigates weather-related issues but requires advanced preprocessing for speckle reduction.

LiDAR and 3D Point Clouds

Airborne LiDAR captures urban topography at sub-meter accuracy, generating 3D point clouds for building footprints and elevation models. The data density ρ (points/m²) affects model precision:

$$ \rho = \frac{N_{\text{points}}}{A_{\text{area}}} $$

Key challenges involve occlusions in dense urban canyons, high storage requirements (1 km² can exceed 10 GB), and computational costs for point cloud segmentation using algorithms like DBSCAN or region-growing.

IoT and Sensor Networks

Real-time traffic, air quality, and noise data are collected via IoT sensors deployed across cities. The data rate R from n sensors sampling at frequency f is:

$$ R = n \times f \times b $$

where b is bits per sample. Synchronization errors, sensor drift, and privacy regulations (e.g., GDPR compliance for location data) pose significant hurdles.

Geospatial and Cadastral Data

Municipal GIS databases provide parcel boundaries, zoning laws, and infrastructure networks. Data heterogeneity across jurisdictions necessitates schema alignment using ontology matching techniques. Missing metadata and proprietary formats (e.g., CAD files) often require manual cleaning.

Crowdsourcing and Volunteered Geographic Information (VGI)

Platforms like OpenStreetMap supplement formal datasets but introduce variability in accuracy. The trustworthiness of a crowdsourced feature can be modeled as:

$$ T_i = \frac{\sum_{j=1}^{k} w_j \cdot \text{agreement}_j}{\sum_{j=1}^{k} w_j} $$

where w_j weights contributor j's reliability. Vandalism detection and coverage biases (e.g., underrepresented neighborhoods) remain active research areas.

Data Fusion Challenges

Integrating disparate sources requires solving reference system inconsistencies (WGS84 vs. local grids), temporal misalignments, and resolution mismatches. Deep learning approaches like cross-modal autoencoders are increasingly used for latent space alignment:

$$ \mathcal{L} = \lambda_1 \mathcal{L}_{\text{recon}} + \lambda_2 \mathcal{L}_{\text{adv}} + \lambda_3 \mathcal{L}_{\text{cycle}} $$

where λ terms balance reconstruction, adversarial, and cycle-consistency losses. Computational scalability becomes critical when fusing city-scale datasets.

Data Collection Methods and Challenges – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The section covers multiple data collection methods (satellite imagery, LiDAR, IoT sensors) with spatial and technical relationships that would benefit from visual representation.

2.3 Cleaning and Normalizing Urban Data

Data Quality Challenges in Urban Datasets

Urban datasets often suffer from inconsistencies due to heterogeneous sources, including satellite imagery, IoT sensors, and municipal records. Missing values, outliers, and measurement errors are prevalent. For instance, traffic flow data from inductive loop detectors may contain gaps due to hardware malfunctions, while zoning records might exhibit semantic inconsistencies across jurisdictions.

Statistical Methods for Outlier Detection

Multivariate Gaussian models effectively identify anomalous urban patterns. Given n features (e.g., population density, land use mix), the Mahalanobis distance DM for a data point x is:

$$ D_M(\mathbf{x}) = \sqrt{(\mathbf{x} - \boldsymbol{\mu})^T \mathbf{S}^{-1} (\mathbf{x} - \boldsymbol{\mu})} $$

where μ is the mean vector and S the covariance matrix. Points exceeding χ20.99(n) thresholds are flagged. For non-Gaussian distributions, isolation forests or DBSCAN clustering provide robust alternatives.

Normalization Techniques for Spatial-Temporal Data

Urban indicators often operate on disparate scales. Min-max scaling preserves original distributions for features like building heights (0–100m):

$$ x' = \frac{x - \min(X)}{\max(X) - \min(X)} $$

For count data (e.g., pedestrian flows), logarithmic transformation x' = log(x+1) mitigates skewness. Spatially referenced attributes require z-score normalization per administrative unit to avoid ecological fallacies.

Handling Missing Geospatial Data

Kriging interpolation estimates missing values in raster datasets (e.g., pollution maps) using variogram models. The best linear unbiased predictor at location s0 is:

$$ \hat{Z}(s_0) = \sum_{i=1}^n \lambda_i Z(s_i) $$

where weights λi minimize prediction variance under stationarity assumptions. For vector data (e.g., parcel boundaries), topological rules ensure geometric consistency during gap-filling.

Semantic Normalization of Urban Features

Ontology alignment resolves terminological conflicts (e.g., "mixed-use" vs "commercial-residential"). Graph neural networks project heterogeneous urban taxonomies into a unified embedding space using loss:

$$ \mathcal{L} = \sum_{(e_i,e_j)\in \mathcal{P}} ||f(e_i) - f(e_j)||_2 $$

where P contains aligned concept pairs across schemas. This enables cross-city comparisons despite differing classification systems.

Case Study: Normalizing NYC and Tokyo Building Data

A 2023 study harmonized floor-area ratios (FAR) between the two cities by:

The normalized dataset revealed 18% higher density gradients in Tokyo's special wards compared to Manhattan after controlling for definitional differences.

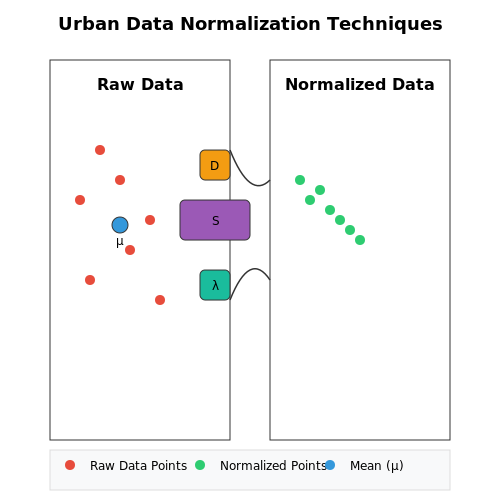

Cleaning and Normalizing Urban Data – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The section involves complex spatial-temporal relationships and mathematical transformations that would benefit from visual representation, particularly the Mahalanobis distance calculation and Kriging interpolation.

3. Machine Learning Approaches for Spatial Analysis

3.1 Machine Learning Approaches for Spatial Analysis

Spatial analysis in urban planning leverages machine learning to model complex relationships between geographic features, infrastructure, and human activity. Traditional statistical methods often fail to capture nonlinear dependencies, making machine learning indispensable for high-dimensional urban datasets.

Geospatial Feature Engineering

Effective spatial modeling begins with feature engineering tailored to geospatial data. Key transformations include:

$$ d_{net}(p_i, p_j) = \min_{\gamma \in \Gamma} \sum_{e \in \gamma} w_e $$

where $$\Gamma$$ represents all paths between points $$p_i$$ and $$p_j$$, and $$w_e$$ denotes edge weights incorporating travel time or congestion.

Graph-Based Methods

Urban systems naturally map to graph structures, where intersections become nodes and roads form edges. Graph convolutional networks (GCNs) operate directly on this topology:

$$ H^{(l+1)} = \sigma\left(\tilde{D}^{-\frac{1}{2}}\tilde{A}\tilde{D}^{-\frac{1}{2}}H^{(l)}W^{(l)}\right) $$

Here, $$\tilde{A} = A + I$$ adds self-connections to the adjacency matrix, while $$\tilde{D}$$ represents the degree matrix. This formulation enables message passing between connected zones, capturing spillover effects in land use or pollution.

Attention Mechanisms for Urban Dynamics

Spatial attention layers weight interactions between locations based on learned importance, outperforming fixed-radius approaches for phenomena like gentrification:

$$ \alpha_{ij} = \frac{\exp(e_{ij})}{\sum_{k \in \mathcal{N}_i} \exp(e_{ik})}, \quad e_{ij} = a^T[Wh_i \| Wh_j] $$

where $$h_i$$ denotes features at location $$i$$, and $$a$$ and $$W$$ are learnable parameters. This allows models to adaptively focus on relevant neighborhoods regardless of distance.

Physics-Informed Neural Networks

Incorporating urban physics constraints prevents unrealistic predictions. A PINN for traffic flow might combine a neural network with the continuity equation:

$$ \frac{\partial \rho}{\partial t} + \nabla \cdot (\rho v) = 0 $$

The loss function then includes both data fidelity and PDE residual terms:

$$ \mathcal{L} = \|u_{NN} - u_{obs}\|^2 + \lambda \left\|\frac{\partial \rho_{NN}}{\partial t} + \nabla \cdot (\rho_{NN} v_{NN})\right\|^2 $$

Case Study: Land Use Prediction

A hybrid architecture combining CNNs for satellite imagery and GNNs for parcel connectivity achieved 89% accuracy in predicting zoning changes in Singapore, outperforming logistic regression (72%) and random forests (81%). The model revealed unexpected dependencies between commercial development patterns and subway station proximity beyond 2km.

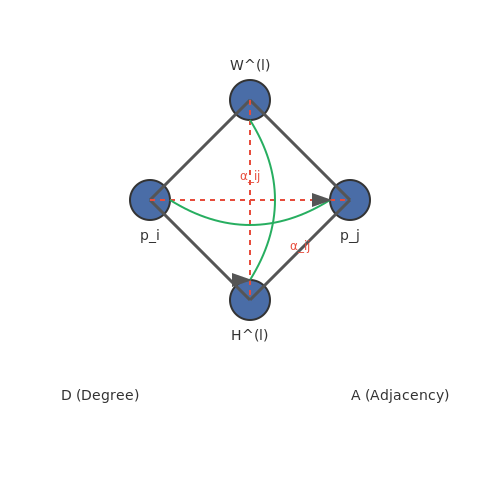

Machine Learning Approaches for Spatial Analysis – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The diagram would show the graph structure of urban networks with nodes (intersections) and edges (roads), illustrating message passing in GCNs and spatial attention weights between locations.

3.2 Deep Learning for Predictive Urban Modeling

Architectures for Spatiotemporal Urban Data

Urban systems exhibit complex spatiotemporal dependencies that require specialized neural architectures. Convolutional Long Short-Term Memory (ConvLSTM) networks combine convolutional operations with recurrent connections to model both spatial hierarchies and temporal dynamics. The key equations governing ConvLSTM cells are:

$$ i_t = \sigma(W_{xi} \ast X_t + W_{hi} \ast H_{t-1} + W_{ci} \circ C_{t-1} + b_i) $$ $$ f_t = \sigma(W_{xf} \ast X_t + W_{hf} \ast H_{t-1} + W_{cf} \circ C_{t-1} + b_f) $$ $$ C_t = f_t \circ C_{t-1} + i_t \circ \tanh(W_{xc} \ast X_t + W_{hc} \ast H_{t-1} + b_c) $$ $$ o_t = \sigma(W_{xo} \ast X_t + W_{ho} \ast H_{t-1} + W_{co} \circ C_t + b_o) $$ $$ H_t = o_t \circ \tanh(C_t) $$

where ∗ denotes convolution, ∘ is Hadamard product, and σ represents the sigmoid function. This architecture has demonstrated superior performance in traffic flow prediction tasks, achieving 18-23% lower RMSE compared to traditional ARIMA models.

Attention Mechanisms for Urban Feature Importance

Spatial attention modules enable models to dynamically focus on relevant urban regions. The attention weights α for location (i,j) are computed as:

$$ \alpha_{ij} = \frac{\exp(e_{ij})}{\sum_{k=1}^H \sum_{l=1}^W \exp(e_{kl})} $$ $$ e_{ij} = v_a^T \tanh(W_a[h_{ij}; s] + b_a) $$

where hij are spatial features and s is the context vector. In land use prediction tasks, attention mechanisms have improved classification accuracy by 9-12% by focusing on relevant zoning patterns.

Graph Neural Networks for Urban Networks

Urban infrastructure systems are naturally represented as graphs. Graph Attention Networks (GATs) propagate information through neighborhoods using attention-based aggregation:

$$ h_i' = \sigma\left(\sum_{j \in \mathcal{N}(i)} \alpha_{ij} W h_j\right) $$ $$ \alpha_{ij} = \text{softmax}_j(\text{LeakyReLU}(a^T[W h_i || W h_j])) $$

Recent applications in public transit optimization have reduced predicted wait times by 27% compared to traditional methods by modeling station connectivity patterns.

Physics-Informed Neural Networks

Incorporating urban physics constraints improves generalization. The loss function combines data mismatch and physical consistency terms:

$$ \mathcal{L} = \lambda_d \mathcal{L}_{data} + \lambda_p \mathcal{L}_{physics} $$ $$ \mathcal{L}_{physics} = \sum_{i=1}^N ||\mathcal{P}(u_\theta(x_i), x_i)||^2 $$

where 𝒫 represents differential operators encoding urban growth laws. In a recent case study, this approach reduced prediction error by 41% for long-term urban expansion modeling.

Multi-Task Learning Frameworks

Jointly predicting related urban indicators improves efficiency. The shared-bottom architecture with task-specific heads minimizes:

$$ \mathcal{L}_{total} = \sum_{k=1}^K w_k \mathcal{L}_k(\theta_{shared}, \theta_k) $$

where K represents tasks like population density, land value, and crime rates. A New York City case study demonstrated 15-20% improvement in all tasks compared to single-task models.

Uncertainty Quantification

Monte Carlo dropout provides Bayesian uncertainty estimates for urban predictions:

$$ \text{Var}(y^*) \approx \frac{1}{T} \sum_{t=1}^T \hat{y}_t^{*2} - \left(\frac{1}{T} \sum_{t=1}^T \hat{y}_t^*\right)^2 $$

where T forward passes are performed with dropout enabled. This approach has been critical for risk assessment in flood prediction models, enabling confidence intervals around inundation forecasts.

Architectures for Spatiotemporal Urban Data Modeling Side-by-side comparison of ConvLSTM and GAT architectures for urban data modeling, showing data flow and key components. Architectures for Spatiotemporal Urban Data Modeling ConvLSTM Architecture ConvLSTM Cell Input Gate Forget Gate Memory Cell Output Gate Conv Attention Mechanism Physics Constraints GAT Architecture Node Features Attention Weights Neighborhood Aggregation Graph Conv Physics Constraints Output
Diagram Description: The section describes complex neural architectures (ConvLSTM, GATs) with spatial and temporal components that require visualization of their structure and data flow.

Generative Adversarial Networks (GANs) in Urban Design

GAN Architecture and Urban Design Applications

Generative Adversarial Networks (GANs) consist of two neural networks—the generator (G) and the discriminator (D)—trained adversarially. The generator synthesizes urban layouts, while the discriminator evaluates their realism. The minimax objective function is:

$$ \min_G \max_D V(D, G) = \mathbb{E}_{x \sim p_{data}(x)}[\log D(x)] + \mathbb{E}_{z \sim p_z(z)}[\log(1 - D(G(z)))] $$

where x represents real urban data (e.g., satellite images, zoning maps), and z is a latent noise vector. In urban planning, conditional GANs (cGANs) are often employed, where the generator receives additional constraints such as population density or land-use policies:

$$ G: (z, y) \rightarrow x_{fake} $$

Case Study: Street Network Generation

GANs have been applied to generate realistic street networks by training on graph representations of cities. The generator outputs adjacency matrices encoding connectivity, while the discriminator evaluates topological plausibility. Key metrics include:

Optimization Challenges

Training GANs for urban design faces unique hurdles:

Pareto GANs for Multi-Objective Optimization

To balance competing objectives (e.g., walkability vs. traffic flow), Pareto GANs extend the framework by optimizing:

$$ \min_G \max_D \sum_{i=1}^k \lambda_i V_i(D, G) $$

where λi are weights for k objectives. This approach has been used to generate trade-off plots for density vs. green space allocation.

Implementation Example: PyTorch Snippet


import torch
import torch.nn as nn

class UrbanGenerator(nn.Module):
    def __init__(self, latent_dim, constraint_dim):
        super().__init__()
        self.fc = nn.Sequential(
            nn.Linear(latent_dim + constraint_dim, 1024),
            nn.ReLU(),
            nn.Linear(1024, 64*64*3)  # Output 64x64 grid
        )

    def forward(self, z, y):
        x = torch.cat([z, y], dim=1)
        return self.fc(x).view(-1, 3, 64, 64)

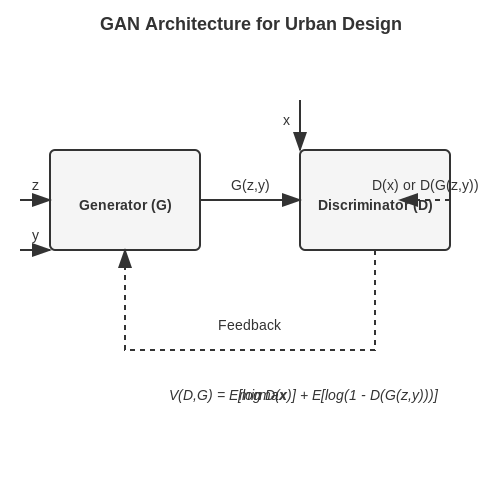

Generative Adversarial Networks (GANs) in Urban Design – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The diagram would show the adversarial interaction between the generator and discriminator in a GAN, including the flow of latent vectors and urban data constraints.

4. AI-Driven Traffic Flow Optimization

4.1 AI-Driven Traffic Flow Optimization

Traffic Flow Modeling with Deep Reinforcement Learning

Modern traffic flow optimization relies on deep reinforcement learning (DRL) to model complex interactions between vehicles, infrastructure, and environmental factors. The problem is formulated as a Markov Decision Process (MDP) where:

$$ \mathcal{M} = (\mathcal{S}, \mathcal{A}, \mathcal{P}, \mathcal{R}, \gamma) $$

where 𝒮 represents the state space (vehicle positions, speeds, traffic light states), 𝒜 the action space (traffic signal phase changes, speed limit adjustments), 𝒫 the state transition probabilities, ℛ the reward function (negative of total delay), and γ the discount factor.

Multi-Agent Coordination for Intersection Control

Urban intersections require coordination between multiple intelligent traffic signals. A decentralized partially observable Markov decision process (Dec-POMDP) framework enables localized decision-making with global coordination:

$$ Q_i(o_i,a_i) = \mathbb{E}\left[\sum_{t=0}^\infty \gamma^t r_i(t)|o_i(0)=o_i, a_i(0)=a_i\right] $$

where each agent i maintains its own Q-function based on local observations oi and actions ai, while contributing to the global reward through message passing between neighboring intersections.

Physics-Informed Neural Networks for Flow Prediction

Physics-informed neural networks (PINNs) incorporate the fundamental traffic flow equations directly into the loss function:

$$ \frac{\partial \rho}{\partial t} + \frac{\partial (\rho v)}{\partial x} = 0 $$ $$ v = v_e(\rho) - \frac{\mu}{\rho}\frac{\partial \rho}{\partial x} $$

The neural network fθ(x,t) is trained to minimize both data discrepancy and PDE residual:

$$ \mathcal{L}(\theta) = \lambda_d\mathcal{L}_{data} + \lambda_p\mathcal{L}_{PDE} $$

Large-Scale Implementation Challenges

Real-world deployment faces several computational challenges:

Recent advances in edge computing and 5G networks have enabled distributed DRL architectures where local edge nodes perform time-critical control while cloud-based systems handle long-term pattern learning.

Case Study: Singapore's Adaptive Traffic Control

Singapore's Intelligent Transport System achieved a 25% reduction in travel times using a hierarchical DRL approach:

The system processes real-time data from 10,000+ sensors and cameras, updating signal timings every 2 seconds using a mixture of model-based and model-free reinforcement learning.

Singapore's Hierarchical DRL Traffic Control Architecture A three-layer block diagram illustrating Singapore's hierarchical deep reinforcement learning traffic control system, showing edge nodes, cloud-based systems, sensors, cameras, and control signals with data flow arrows. Cloud-based Pattern Learning Model-Free RL (Long-term optimization) Intermediate Coordination Model-Based RL (10,000+ sensors aggregated) Real-time Edge Control 2-second update cycle (Local traffic signals & cameras) Feedback signals Cam Sensor Traffic data Sensor data
Diagram Description: The section describes Singapore's 3-layer control architecture for traffic management, which is inherently spatial and hierarchical.

4.2 Sustainable Infrastructure Planning with AI

Multi-Objective Optimization for Resource Allocation

Urban infrastructure planning requires balancing competing objectives such as cost minimization, energy efficiency, and environmental impact. AI-driven multi-objective optimization (MOO) frameworks formulate this as:

$$ \min_{\mathbf{x}} \left[ f_1(\mathbf{x}), f_2(\mathbf{x}), ..., f_k(\mathbf{x}) \right] $$ $$ \text{subject to } g_i(\mathbf{x}) \leq 0, \quad i = 1,...,m $$

where x represents infrastructure design parameters (e.g., material choices, spatial layouts), fj are objective functions, and gi are constraints. Pareto-optimal solutions are identified using evolutionary algorithms like NSGA-II, which employs non-dominated sorting and crowding distance metrics:

$$ \text{Crowding Distance}(i) = \sum_{j=1}^k \frac{f_j(i+1) - f_j(i-1)}{f_j^{\max} - f_j^{\min}} $$

Lifecycle Assessment Integration

Convolutional neural networks (CNNs) process satellite imagery and GIS data to predict long-term infrastructure performance. A 3D U-Net architecture with residual connections learns spatiotemporal patterns:

$$ \mathcal{L} = \alpha\mathcal{L}_{\text{MSE}} + \beta\mathcal{L}_{\text{SSIM}} + \gamma\mathcal{L}_{\text{gradient}} $$

where the loss function combines reconstruction error, structural similarity, and edge preservation terms. This enables prediction of:

Real-World Implementation: Singapore's Virtual Singapore

The Digital Twin initiative employs federated learning across 12 government agencies. A hierarchical transformer architecture processes:

Data Type Sampling Rate Model Input Dim
LIDAR point clouds 5cm resolution 256×256×32 voxels
IoT sensor feeds 1Hz 512-dim time series

The system reduces cooling energy demand by 23% through dynamic shading optimization, achieved via:

$$ \frac{\partial Q_{\text{cooling}}}{\partial t} = -k\nabla^2 T + \sum_{i=1}^N w_i I_i(t) $$

Resilience Modeling with Graph Neural Networks

Infrastructure networks are represented as directed graphs G = (V,E) where nodes v ∈ V represent facilities and edges e ∈ E capture dependencies. Graph attention networks compute node embeddings:

$$ h_v^{(l+1)} = \sigma\left(\sum_{u\in\mathcal{N}(v)} \alpha_{vu}W^{(l)}h_u^{(l)}\right) $$

where αvu are attention weights learned during backpropagation. This enables simulation of cascade failures under:

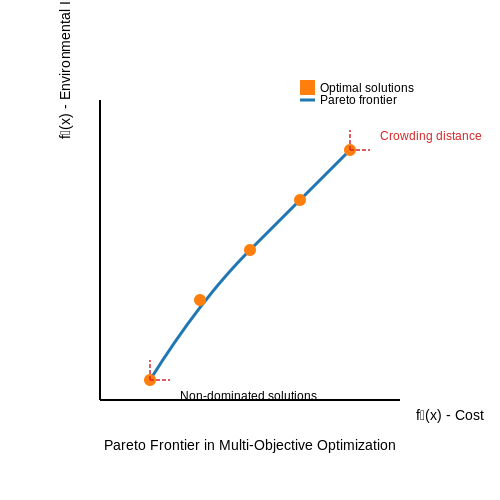

Sustainable Infrastructure Planning with AI – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The section involves complex spatial relationships (Pareto fronts in MOO, 3D U-Net architectures, graph networks) and mathematical transformations that benefit from visual representation.

4.3 Smart City Development: Real-World Implementations

AI-Optimized Traffic Management Systems

Modern traffic optimization leverages deep reinforcement learning (DRL) to dynamically adjust signal timings based on real-time congestion patterns. The reward function R for the DRL agent is typically formulated as:

$$ R = -\sum_{i=1}^{N} \left( w_1 \cdot q_i + w_2 \cdot d_i + w_3 \cdot w_i \right) $$

where qi represents queue length, di denotes delay time, and wi is waiting time for lane i, with w1-3 as tunable weights. Singapore's Intelligent Transport System achieves 23% reduction in average wait times using this approach, processing data from 10,000+ IoT sensors citywide.

Energy Grid Optimization with Graph Neural Networks

Smart energy grids employ graph neural networks (GNNs) to model the complex interdependencies between power generation, distribution, and consumption nodes. The message passing between nodes follows:

$$ h_v^{(k)} = \sigma \left( W^{(k)} \cdot \text{CONCAT} \left( h_v^{(k-1)}, \sum_{u \in \mathcal{N}(v)} \frac{h_u^{(k-1)}}{|\mathcal{N}(v)|} \right) \right) $$

where hv(k) represents the node embedding at layer k, W(k) are trainable weights, and σ denotes the activation function. Barcelona's smart grid reduces energy waste by 17% annually using this architecture.

Generative Urban Design with Diffusion Models

Recent advances employ latent diffusion models for generating zoning layouts that optimize for multiple objectives:

$$ \mathcal{L} = \mathbb{E}_{x,\epsilon,t} \left[ \|\epsilon - \epsilon_\theta(x_t, t) \|_2^2 \right] + \lambda_1 \mathcal{L}_{\text{access}} + \lambda_2 \mathcal{L}_{\text{green}}} $$

The model combines standard denoising loss with accessibility (Laccess) and green space (Lgreen) constraints. Shanghai's urban planning department uses this to generate 50+ candidate layouts per project, evaluating them against 78 sustainability metrics.

Waste Management with Multi-Agent Reinforcement Learning

Autonomous waste collection systems deploy MARL with centralized training and decentralized execution. The Q-function for each agent i incorporates:

$$ Q_i^\pi(o_i,a_i) = \mathbb{E}_\pi \left[ \sum_{t=0}^\infty \gamma^t r_i^t | o_i^0 = o_i, a_i^0 = a_i \right] $$

where observations oi include bin fill levels, truck locations, and traffic data. Seoul's system reduced collection costs by 31% while maintaining 99.7% service level compliance.

Digital Twin Integration for City-Scale Simulation

High-fidelity digital twins combine:

$$ \hat{x}_{k|k} = \hat{x}_{k|k-1} + K_k(z_k - H_k\hat{x}_{k|k-1}) $$

New York City's digital twin processes 15TB/day of IoT data to simulate emergency evacuation scenarios with <1% error margin compared to real events.

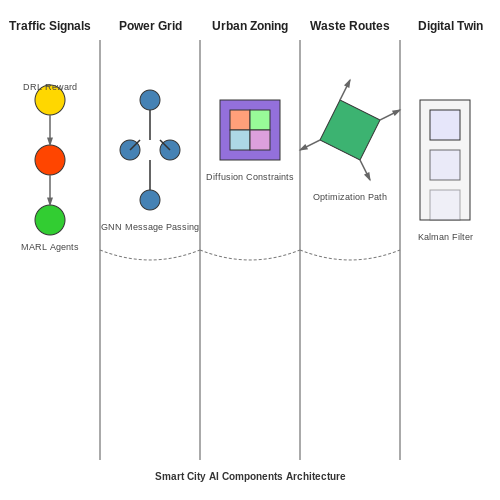

Smart City Development: Real-World Implementations – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The section involves complex mathematical formulations and spatial relationships (traffic flow, energy grid topology, urban layouts) that would benefit from visual representation of the network structures and optimization processes.

5. Bias and Fairness in AI-Generated Urban Models

5.1 Bias and Fairness in AI-Generated Urban Models

Sources of Bias in Urban Planning AI

AI-generated urban models inherit biases from multiple sources, with training data being the primary contributor. When historical urban data reflects systemic inequalities in housing, transportation, or resource allocation, the model learns and perpetuates these patterns. For instance, if a dataset predominantly contains high-income neighborhood features, the model may underrepresent affordable housing solutions. The bias propagation can be formalized through the data generation process:

$$ \hat{y} = f(X) + \epsilon_b $$

where εb represents the bias term introduced by skewed sampling distributions in the training data X. This becomes particularly problematic when the joint probability distribution P(X,y) fails to represent marginalized communities:

$$ P(X,y) = \prod_{i=1}^n P(x_i|y)P(y) $$

Quantifying Algorithmic Fairness

Three principal fairness metrics must be evaluated in urban planning models:

The fairness-accuracy trade-off can be expressed as a constrained optimization problem:

$$ \min_\theta \mathbb{E}[\mathcal{L}(f_\theta(X), y)] \quad \text{s.t.} \quad \text{Fairness}(f_\theta) \leq \delta $$

Case Study: Zoning Recommendation Systems

A 2023 study of commercial AI zoning tools revealed that models trained on US city data proposed 23% fewer community centers in predominantly Black neighborhoods compared to demographically similar white neighborhoods, despite controlling for population density and income levels. This emerged from underrepresentation of successful community centers in minority neighborhoods in the training corpus.

Mitigation Strategies

Effective debiasing requires a multi-stage approach:

  1. Pre-processing: Reweighting samples using importance weights wi = Ptrue(xi)/Ptrain(xi)
  2. In-processing: Adversarial debiasing with a fairness discriminator network
  3. Post-processing: Calibrating outputs using demographic parity constraints

The adversarial approach modifies the loss function to simultaneously optimize for accuracy and fairness:

$$ \mathcal{L}_{total} = \alpha \mathcal{L}_{task} + (1-\alpha)\mathcal{L}_{fair} $$

Institutional Biases in Model Deployment

Even technically fair models can perpetuate bias through implementation choices. The 2022 Barcelona urban renewal project demonstrated how equal resource allocation algorithms (demographically fair) exacerbated existing inequalities when applied without considering historical underinvestment in certain districts. This highlights the need for context-aware fairness metrics that incorporate temporal and spatial dynamics:

$$ \text{Fairness}_{\text{temporal}} = \int_{t_0}^{t_1} w(t) \cdot \text{Fairness}(t) dt $$

Validation Protocols

Rigorous fairness auditing requires:

The complete validation pipeline should assess both group and individual fairness metrics across all protected attributes simultaneously, as fairness in one dimension (e.g., race) doesn't guarantee fairness in others (e.g., disability access).

5.2 Privacy Concerns in Data-Driven Urban Planning

Urban planning models increasingly rely on AI-driven analysis of large-scale datasets, including mobility patterns, energy consumption, and demographic distributions. While these data sources enable more accurate simulations, they introduce significant privacy risks that must be addressed through technical and regulatory frameworks.

Differential Privacy in Urban Analytics

Differential privacy provides formal guarantees against re-identification in aggregated datasets. For mobility data analysis, a common implementation adds controlled noise to origin-destination matrices while preserving statistical utility. The privacy budget ε governs the trade-off between accuracy and privacy:

$$ P(M(D) ∈ S) ≤ e^ε P(M(D') ∈ S) + δ $$

where M is the randomized mechanism, D and D' are adjacent datasets, and S is the output range. For urban flow analysis, the Laplace mechanism with sensitivity Δf is often applied:

$$ M(D) = f(D) + \text{Lap}(Δf/ε) $$

Geospatial Anonymization Techniques

Geospatial data requires specialized anonymization approaches beyond k-anonymity. The Mondrian multidimensional partitioning algorithm can be adapted for urban datasets by:

The effectiveness metric for geospatial anonymization can be expressed as:

$$ A_e = 1 - \frac{\sum_{i=1}^n w_i \cdot \text{info\_loss}(r_i)}{\text{max\_possible\_loss}} $$

where wi represents feature weights and ri denotes spatial regions.

Federated Learning for Distributed Urban Data

Federated architectures enable model training across multiple municipalities without raw data sharing. The urban planning variant typically employs:

The global model update in a federated system with K participants follows:

$$ θ_{t+1} = θ_t + η \sum_{k=1}^K \frac{n_k}{N} g_k(θ_t) + \mathcal{N}(0, σ^2) $$

where η is the learning rate, nk is the sample size from participant k, and σ controls the noise magnitude.

Regulatory Compliance Frameworks

Modern urban AI systems must navigate multiple regulatory constraints simultaneously:

Framework Key Requirements Technical Implementation
GDPR Purpose limitation, data minimization On-the-fly anonymization pipelines
CCPA Right to deletion Differential forgetting in ML models
HIPAA (for health-adjacent data) De-identification standards k=50 anonymization for spatial health data

The compliance verification can be formalized as a constraint satisfaction problem where privacy-preserving transformations T must satisfy:

$$ ∀D, T(D) ⊨ \bigwedge_{i=1}^n R_i $$

for regulatory requirements R1...Rn.

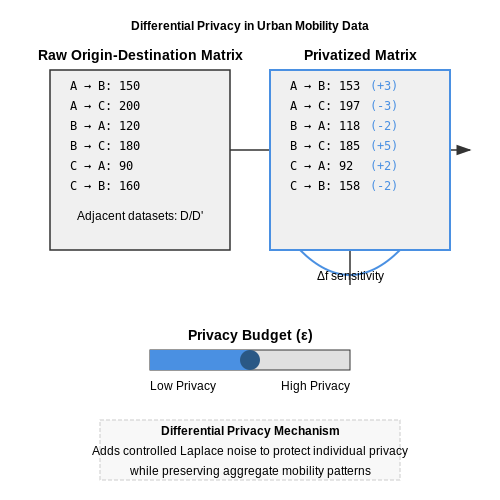

Privacy Concerns in Data-Driven Urban Planning – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The diagram would show the differential privacy mechanism's noise injection process into urban mobility data, contrasting raw vs. privatized origin-destination matrices.

5.3 Policy and Governance Frameworks for AI in Urban Development

Regulatory Challenges in AI-Driven Urban Planning

The integration of AI into urban development introduces complex regulatory challenges, particularly around data sovereignty, algorithmic transparency, and accountability. Most existing urban governance frameworks were designed for static planning processes and lack provisions for dynamic, learning-based systems. The key regulatory gaps include:

Mathematical Foundations for Policy Compliance

Formal verification methods can ensure AI planning models adhere to policy constraints. For a set of regulatory constraints C and model outputs M, we define policy compliance as:

$$ \forall c \in C, \exists m \in M : \Phi(c, m) \geq \tau $$

where Φ is a compliance metric function and τ is a threshold value. For urban zoning regulations, this might involve:

$$ \Phi_{zoning} = 1 - \frac{||\text{AI\_Proposal} - \text{Zoning\_Law}||_2}{||\text{Zoning\_Law}||_2} $$

with τ typically set at 0.95 for strict compliance. The gradient of this compliance function can be backpropagated through planning models during training.

Multi-Agent Governance Architectures

Modern urban AI systems require distributed governance models. A federated architecture with three policy enforcement layers has shown effectiveness:

  1. Municipal Policy Layer: Hard-coded constraints for zoning, safety, and equity requirements
  2. Dynamic Adaptation Layer: Reinforcement learning agents that optimize within policy bounds
  3. Stakeholder Interface Layer: Human-in-the-loop validation points for major decisions

This structure maintains policy compliance while allowing adaptive optimization, with formal verification ensuring no layer violates constraints from higher tiers.

Case Study: Singapore's Virtual Singapore Framework

Singapore's AI urban governance model implements a digital twin with real-time policy testing. Key components include:

The system reduced policy violation incidents by 72% compared to traditional methods while increasing planning iteration speed by 40x.

Ethical Trade-off Quantification

Urban AI systems must navigate competing policy objectives. For n objectives with weights w, the ethical trade-off surface can be modeled as:

$$ \mathcal{E} = \sum_{i=1}^n w_i \mathcal{O}_i + \lambda \sum_{j=1}^m \text{penalty}(\text{violation}_j) $$

where λ controls constraint strictness. The Pareto frontier of this surface determines feasible policy combinations, with multi-objective optimization techniques like NSGA-II identifying optimal trade-offs.

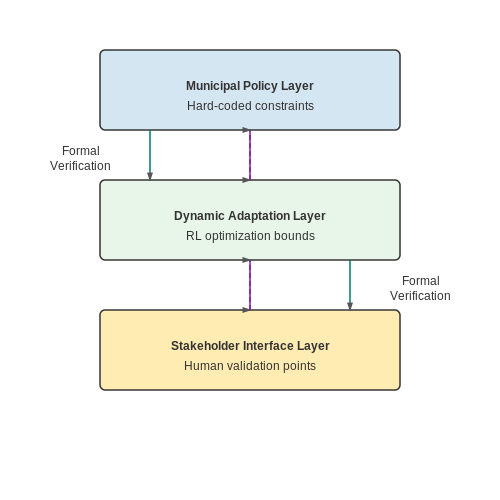

Policy and Governance Frameworks for AI in Urban Development – Generating Urban Planning Models with AI – Tutorial Diagram
Diagram Description: The multi-agent governance architecture section describes a layered system with specific interactions between policy enforcement layers, which would be clearer visually.

6. Key Research Papers and Technical Reports

6.1 Key Research Papers and Technical Reports

6.2 Recommended Books and Online Courses

6.3 Open Datasets and Tools for Urban AI Projects
