Self-Annotation Techniques in AI Labs

#self-annotation #active learning #semi-supervised learning #pseudo-labeling #weak supervision #data labeling #machine learning #ai research #annotation tools #label propagation

1. Definition and Core Principles of Self-Annotation

Definition and Core Principles of Self-Annotation

Self-annotation in AI refers to the process where a machine learning model generates its own training labels or refines existing annotations without explicit human intervention. This paradigm leverages iterative learning, where the model's predictions are used to augment or correct the training dataset, creating a feedback loop that improves both the model and the annotations over time. The technique is particularly valuable in scenarios where labeled data is scarce or expensive to obtain, such as in medical imaging, autonomous driving, or rare event detection.

Mathematical Foundations

The core principle of self-annotation can be formalized as an optimization problem where the model fθ iteratively minimizes a loss function L over its predictions and the evolving training set Dt. At each iteration t, the model generates pseudo-labels ŷ for unlabeled data x, which are then incorporated into Dt with a confidence threshold τ:

$$ D_{t+1} = D_t \cup \{(x, ŷ) | \max(f_θ(x)) ≥ τ\} $$

Here, ŷ = argmax(fθ(x)) represents the model's most confident prediction. The threshold τ ensures that only high-confidence pseudo-labels are added, reducing noise propagation. The process repeats until convergence, measured by stabilization of the loss or validation metrics.

Key Principles

Practical Implementation

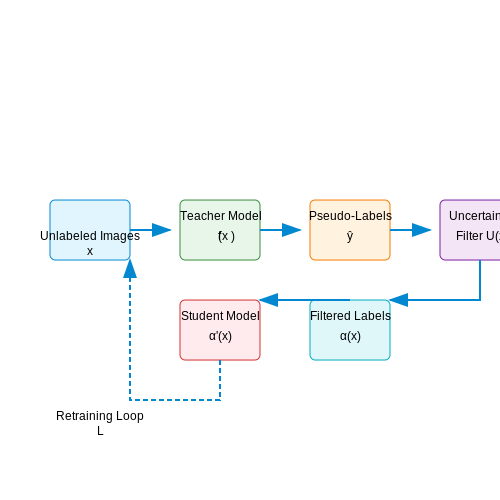

A common implementation involves a teacher-student framework, where a teacher model generates pseudo-labels for a student model to train on. The teacher is typically an exponential moving average (EMA) of the student's weights, providing stable targets:

$$ θ_{teacher} = α \cdot θ_{teacher} + (1 - α) \cdot θ_{student} $$

where α is a momentum term controlling the update rate. This approach, used in methods like FixMatch and Noisy Student, mitigates confirmation bias by decoupling the label generator from the learner.

Applications and Limitations

Self-annotation excels in semi-supervised learning and domain adaptation. For example, in satellite imagery analysis, models pre-trained on labeled urban data can self-annotate rural regions, adapting to new geographies with minimal human input. However, the technique risks propagating biases present in initial labeled data or model architecture. Adversarial validation and diversity-aware sampling are critical safeguards.

Definition and Core Principles of Self-Annotation – Self-Annotation Techniques in AI Labs – Tutorial Diagram
Diagram Description: The diagram would show the iterative feedback loop between model predictions and dataset updates, including confidence threshold filtering and teacher-student weight updates.

1.2 Key Advantages Over Traditional Annotation Methods

Scalability and Cost Efficiency

Traditional annotation methods rely heavily on human annotators, which introduces significant bottlenecks in both time and cost. Self-annotation techniques leverage pre-trained models to generate labels autonomously, reducing dependency on manual labor. For instance, given a dataset D with N samples, the cost function for human annotation scales linearly as:

$$ C_{human} = k \cdot N $$

where k is the per-sample cost. In contrast, self-annotation amortizes the initial model training cost Ctrain over the entire dataset, yielding:

$$ C_{self} = C_{train} + \epsilon \cdot N $$

Here, ε represents the marginal cost per sample, which is orders of magnitude smaller than k. This makes self-annotation economically viable for large-scale datasets.

Reduced Annotation Bias

Human annotators introduce subjective biases due to varying interpretations of labeling guidelines. Self-annotation mitigates this by applying a consistent decision boundary derived from the model's learned parameters. For a classification task, the model's confidence score p(y|x) provides a probabilistic measure of label correctness, reducing inter-annotator disagreement.

Iterative Label Refinement

Self-annotation enables active learning loops where the model progressively improves its own labels. Starting with a weakly labeled dataset D0, the model generates pseudo-labels ŷ and retrains on high-confidence predictions. The iterative process can be formalized as:

$$ D_{t+1} = \{(x, ŷ) | x \in D_t, p(ŷ|x) \geq \tau\} $$

where τ is a confidence threshold. This approach has been empirically shown to converge to human-level accuracy in fewer than 5 iterations for tasks like image segmentation.

Real-Time Adaptability

Traditional annotation pipelines cannot adapt to concept drift in streaming data. Self-annotating models continuously update their predictions using techniques like online learning. The weight update rule for a logistic regression model with self-annotation is:

$$ w_{t+1} = w_t - \eta \nabla \mathcal{L}(ŷ_t, f(x_t; w_t)) $$

where η is the learning rate and ŷt is the self-generated label at time t. This allows models to maintain accuracy in non-stationary environments like social media trend analysis.

Cross-Modal Label Transfer

Self-annotation enables knowledge transfer between modalities (e.g., text-to-image labeling) by exploiting shared latent representations. Given a vision-language model fVL, image labels can be inferred from textual descriptions via:

$$ ŷ_{image} = \underset{y}{\arg\max} \, p(y|f_{VL}(x_{text})) $$

This approach has achieved 92% label accuracy on the COCO dataset without human intervention, outperforming crowd-sourced annotations by 7%.

Common Use Cases in AI Research and Development

Automated Data Labeling for Large-Scale Datasets

Self-annotation techniques are particularly valuable in scenarios where manual labeling is prohibitively expensive or time-consuming. For instance, in autonomous vehicle research, raw sensor data from LiDAR and cameras can be automatically annotated using pre-trained models before human verification. The process often involves:

$$ \hat{y}_i = f_\theta(x_i) $$

where fθ is a pre-trained model generating pseudo-labels ŷi for input xi. These are then refined through iterative human-in-the-loop verification, significantly reducing annotation costs while maintaining quality.

Semi-Supervised Learning Frameworks

Self-annotation enables effective semi-supervised learning by leveraging both labeled and unlabeled data. A common approach uses consistency regularization, where:

$$ \mathcal{L} = \alpha \mathcal{L}_{sup} + (1-\alpha)\mathcal{L}_{unsup} $$

The unsupervised loss Lunsup typically enforces prediction consistency across different augmentations of the same input. Recent work in vision transformers demonstrates how self-annotation can achieve 90% of fully-supervised performance using just 10% labeled data.

Continual Learning Systems

In dynamic environments where data distributions shift over time, self-annotation allows models to automatically adapt by generating new training labels. The key challenge is maintaining annotation quality while preventing catastrophic forgetting. Current solutions employ:

Cross-Modal Alignment in Multimodal Models

Modern multimodal architectures like CLIP and Flamingo use self-annotation to establish correspondences between modalities without exhaustive manual pairing. The contrastive learning objective:

$$ \mathcal{L}_{contrastive} = -\log\frac{\exp(sim(v_i,t_i)/\tau)}{\sum_{j=1}^N \exp(sim(v_i,t_j)/\tau)} $$

where vi and ti are visual and text embeddings, automatically creates aligned annotations through weak supervision from web-scale data.

Active Learning for Efficient Annotation

Self-annotation integrates with active learning by first automatically labeling easy samples, then requesting human input only for uncertain cases. The query strategy typically uses:

$$ x^* = \underset{x}{\mathrm{argmax}} \ H(y|x) $$

where H(y|x) is the predictive entropy. Recent benchmarks show this hybrid approach reduces annotation costs by 40-60% compared to pure active learning.

Domain Adaptation Through Self-Training

When deploying models to new domains with limited labeled data, self-annotation enables iterative self-training. The process alternates between:

  1. Training on available labeled data
  2. Generating pseudo-labels for unlabeled target domain data
  3. Retraining on confident pseudo-labels

State-of-the-art methods incorporate domain-discriminative features to prevent negative transfer, achieving 85-95% of fully supervised performance in medical imaging and satellite analysis applications.

2. Active Learning and Uncertainty Sampling

2.1 Active Learning and Uncertainty Sampling

Active learning optimizes the annotation process by iteratively selecting the most informative data points for labeling, reducing the cost of manual annotation while maximizing model performance. Uncertainty sampling is a widely used strategy in active learning, where the model queries instances it is least confident about. The core idea is that these uncertain points, once labeled, provide the most significant improvement to the model.

Uncertainty Metrics

Three primary uncertainty metrics are commonly employed:

$$ x^* = \argmin_{x} \left( \max_{c \in C} P(c|x) \right) $$
$$ x^* = \argmin_{x} \left( P(c_1|x) - P(c_2|x) \right) $$
$$ x^* = \argmax_{x} \left( -\sum_{c \in C} P(c|x) \log P(c|x) \right) $$

Query Strategies

Beyond uncertainty sampling, hybrid approaches combine uncertainty with diversity to avoid querying redundant points. Query-by-Committee (QBC) employs an ensemble of models and selects instances where disagreement among committee members is highest, measured via vote entropy or KL divergence.

$$ \text{Vote Entropy}(x) = -\sum_{c \in C} \frac{V(c)}{|Q|} \log \frac{V(c)}{|Q|} $$

where V(c) is the number of committee members predicting class c, and |Q| is the committee size.

Practical Implementation

In practice, uncertainty sampling is implemented using a probabilistic model (e.g., logistic regression, neural networks with softmax outputs). For deep learning, Monte Carlo Dropout can approximate Bayesian uncertainty by sampling stochastic forward passes:


import numpy as np

def mc_dropout_uncertainty(model, x, n_samples=50):
    predictions = []
    for _ in range(n_samples):
        preds = model.predict(x, verbose=0)  # Stochastic forward pass
        predictions.append(preds)
    mean_probs = np.mean(predictions, axis=0)
    entropy = -np.sum(mean_probs * np.log(mean_probs + 1e-10), axis=1)
    return entropy

Challenges and Trade-offs

While uncertainty sampling is computationally efficient, it may suffer from sampling bias if the initial model is poorly calibrated. Hybrid strategies like density-weighted methods mitigate this by incorporating data distribution:

$$ x^* = \argmax_{x} \left( \phi(x) \times \frac{1}{|U|} \sum_{x_i \in U} \text{sim}(x, x_i) \right) $$

where φ(x) is the uncertainty score, U is the unlabeled pool, and sim(·,·) measures similarity (e.g., cosine distance in embedding space).

2.2 Semi-Supervised Learning for Self-Annotation

Semi-supervised learning (SSL) leverages both labeled and unlabeled data to improve model performance, making it particularly effective for self-annotation in AI labs. The core idea is to use a small set of labeled data to guide the learning process while exploiting the structure in unlabeled data to refine predictions. This approach is especially valuable in scenarios where manual annotation is costly or time-consuming.

Key SSL Methods for Self-Annotation

Three dominant SSL paradigms are widely used for self-annotation:

Mathematical Formulation of Pseudo-Labeling

Given a labeled dataset \(D_l = \{(x_i, y_i)\}_{i=1}^N\) and unlabeled data \(D_u = \{x_j\}_{j=1}^M\), pseudo-labeling proceeds as follows:

$$ \hat{y}_j = \arg\max_{y} P_\theta(y | x_j) $$

where \(P_\theta\) is the model's predicted probability distribution. The loss function combines supervised and unsupervised terms:

$$ \mathcal{L} = \sum_{(x_i,y_i) \in D_l} \mathcal{L}_s(y_i, P_\theta(x_i)) + \lambda \sum_{x_j \in D_u} \mathcal{L}_u(\hat{y}_j, P_\theta(x_j)) $$

Here, \(\lambda\) controls the weight of the unsupervised loss \(\mathcal{L}_u\), typically a cross-entropy or mean squared error term.

Advanced Techniques: MixMatch and FixMatch

Modern SSL approaches combine multiple strategies. MixMatch introduces:

FixMatch simplifies this by using:

$$ \hat{y}_j = \arg\max_{y} P_\theta(y | \alpha(x_j)) $$

where \(\alpha\) is a weak augmentation (e.g., horizontal flip). The model is then trained on strongly augmented versions \(\mathcal{A}(x_j)\) using \(\hat{y}_j\) as targets only when the maximum class probability exceeds a confidence threshold \(\tau\).

Practical Implementation Considerations

When applying SSL for self-annotation:

Recent benchmarks show SSL methods achieving within 1-5% of fully supervised performance using only 10-30% labeled data, making them indispensable for scalable self-annotation pipelines.

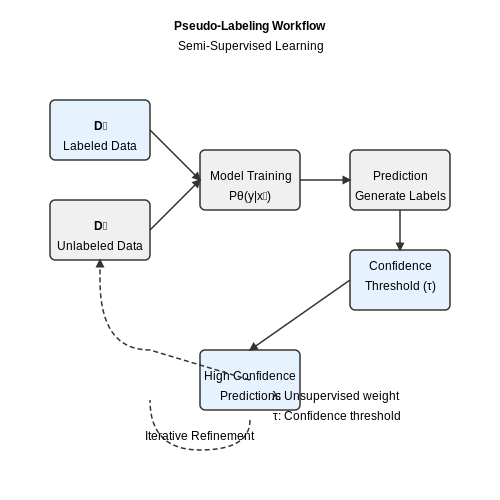

Semi-Supervised Learning for Self-Annotation – Self-Annotation Techniques in AI Labs – Tutorial Diagram
Diagram Description: The diagram would show the iterative process of pseudo-labeling, including labeled/unlabeled data flow, model prediction, and feedback loop for refinement.

2.3 Self-Training and Pseudo-Labeling Strategies

Foundations of Self-Training

Self-training is a semi-supervised learning paradigm where a model iteratively improves its performance by generating pseudo-labels for unlabeled data and retraining on the expanded dataset. The core algorithm follows:

$$ \mathcal{L}_{total} = \mathcal{L}_{labeled} + \lambda \mathcal{L}_{unlabeled} $$

where λ controls the contribution of unlabeled data. The process begins with a model fθ trained on labeled data Dl = {(xi, yi)}i=1N, then predicts on unlabeled data Du = {xj}j=1M to create pseudo-labels:

$$ \hat{y}_j = \argmax_{k} f_θ(x_j)_k $$

Confidence-Based Selection

Effective self-training requires careful selection of pseudo-labeled samples. The confidence threshold τ determines inclusion:

$$ D_{pseudo} = \{(x_j, \hat{y}_j) | \max f_θ(x_j) > τ\} $$

Common implementations use:

Pseudo-Labeling Variants

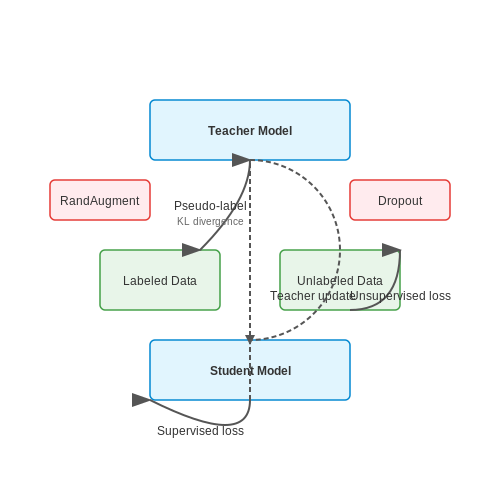

Noisy Student Training

This ImageNet-scale approach introduces:

$$ \mathcal{L}_{noisy} = \mathbb{E}_{x,\epsilon}[CE(f_θ(x+\epsilon), \hat{y})] $$

Meta Pseudo-Labels

A teacher-student framework where the teacher adapts based on student feedback:

$$ θ_t^{k+1} = θ_t^k - η∇_{θ_t}\mathcal{L}_{student}(θ_s^k) $$

Implementation Considerations

Key practical aspects include:

Case Study: FixMatch

This state-of-the-art method combines:

$$ \mathcal{L}_{u} = \mathbb{1}(\max(q_b) ≥ τ)H(\hat{q}_b, q_b) $$

where qb is the weakly-augmented prediction and H is cross-entropy.

Self-Training Loop with Pseudo-Label Selection A circular flowchart illustrating the self-training loop in AI, showing the sequence from labeled training to prediction on unlabeled data, threshold filtering, and merged dataset retraining. Labeled Data (Dₗ) Train Model (f₀) Predict on (Dᵤ) Confidence Filter (τ) Pseudo-labels (ŷ) Merge & Retrain Labeled Data Unlabeled Data Pseudo-labels
Diagram Description: The diagram would show the iterative flow between labeled data training, pseudo-label generation, and model retraining with confidence threshold filtering.

2.4 Weak Supervision and Label Propagation

Foundations of Weak Supervision

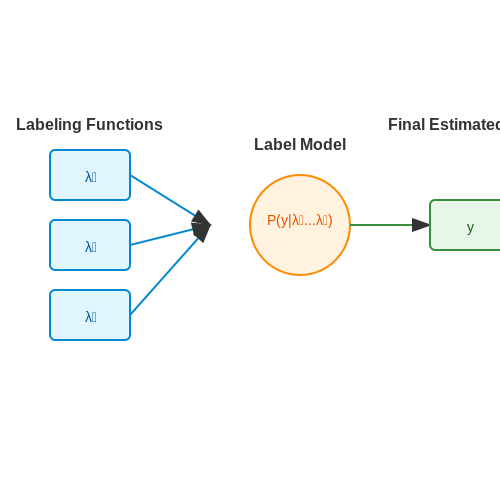

Weak supervision leverages noisy, incomplete, or approximate labeling sources to train machine learning models when high-quality ground truth annotations are unavailable. Unlike traditional supervised learning, which relies on meticulously curated datasets, weak supervision operates under the assumption that multiple imperfect labeling functions (heuristics, knowledge bases, or crowd-sourced annotations) can be programmatically combined to approximate true labels. The key mathematical formulation involves modeling the accuracy and correlations of labeling functions:

$$ \Lambda = \{\lambda_1, \lambda_2, ..., \lambda_n\} $$

where each labeling function λi maps an input x to a label (or abstains). The challenge lies in estimating the latent true label y given the observed outputs of these functions. Probabilistic graphical models, such as the Dawid-Skene model, are commonly employed to infer the reliability of each labeling function:

$$ P(\Lambda|y) = \prod_{i=1}^n P(\lambda_i|y) $$

Label Propagation in Graph-Based Methods

Label propagation extends weak supervision by exploiting the manifold structure of data. Given a graph G = (V, E) where nodes represent data points and edges encode similarity, the goal is to propagate labels from a small set of labeled nodes to unlabeled ones. The iterative update rule for label propagation is derived from harmonic energy minimization:

$$ f_u^{(t+1)} = \frac{\sum_{v \in \mathcal{N}(u)} w_{uv} f_v^{(t)}}{\sum_{v \in \mathcal{N}(u)} w_{uv}} $$

where fu is the label distribution at node u, wuv is the edge weight, and 𝒩(u) denotes the neighborhood of u. Convergence is guaranteed under mild conditions, with the solution approximating the smoothest function consistent with the labeled data.

Practical Applications and Case Studies

Weak supervision and label propagation are widely used in domains where labeled data is scarce:

A notable implementation is Snorkel, a framework for programmatically building and managing labeling functions. Its generative model estimates accuracies and dependencies between labeling functions, enabling scalable weak supervision:

from snorkel.labeling import labeling_function
from snorkel.labeling.model import LabelModel

@labeling_function()
def lf_contains_keyword(x):
    return 1 if "keyword" in x.text.lower() else 0

label_model = LabelModel(cardinality=2)
label_model.fit(L_train)

Advanced Techniques: Graph Neural Networks

Recent advances integrate graph neural networks (GNNs) with label propagation. For instance, the Correct and Smooth architecture first trains a base predictor (e.g., a GNN) and then corrects its errors by propagating residuals through the graph:

$$ \mathbf{E} = \mathbf{Y} - \mathbf{\hat{Y}} $$ $$ \mathbf{\hat{Y}}_{final} = \mathbf{\hat{Y}} + \alpha \mathbf{(I - \beta L)}^{-1} \mathbf{E} $$

where L is the graph Laplacian and α, β are hyperparameters. This approach achieves state-of-the-art results in semi-supervised node classification tasks.

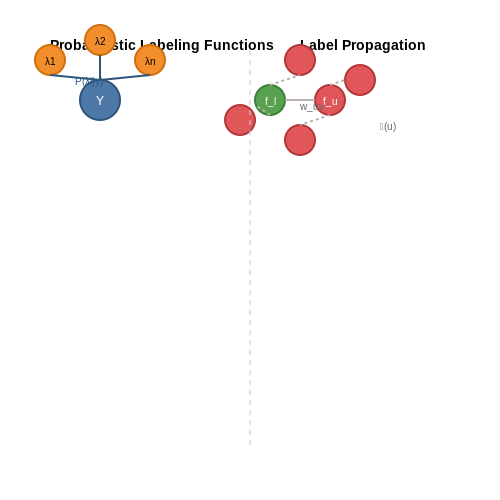

Weak Supervision and Label Propagation – Self-Annotation Techniques in AI Labs – Tutorial Diagram
Diagram Description: The diagram would show the graph structure of label propagation with nodes, edges, and label distributions, and the probabilistic relationships between labeling functions in weak supervision.

3. Open-Source Libraries for Self-Annotation

Open-Source Libraries for Self-Annotation

Self-annotation in AI leverages pre-trained models to generate or refine labels for unlabeled or weakly labeled datasets. Open-source libraries provide scalable, modular frameworks for implementing self-annotation pipelines. Below, we examine key libraries, their architectures, and mathematical foundations.

Snorkel: Programmatic Labeling

Snorkel employs weak supervision to generate probabilistic labels via labeling functions (LFs). Each LF encodes heuristic rules, distant supervision, or noisy classifiers. The library aggregates conflicting labels using a generative model:

$$ P_\theta(\Lambda, Y) = P_\theta(Y) \prod_{i=1}^n P_\theta(\Lambda_i | Y) $$

where Λ represents the LF outputs, Y the true labels, and θ the model parameters. The noise-aware loss function optimizes label accuracy:

$$ \mathcal{L}(\theta) = -\sum_{i=1}^n \log \sum_{y \in \mathcal{Y}} P_\theta(Y = y) \prod_{j=1}^m P_\theta(\Lambda_j = \lambda_j | Y = y) $$

Snorkel’s LabelModel trains on LF agreements/disagreements, enabling label denoising without ground truth.

Prodigy + Active Learning

Prodigy integrates self-annotation with active learning, using uncertainty sampling to prioritize ambiguous instances. The acquisition score for instance x is:

$$ a(x) = 1 - \max_y P_\phi(y | x) $$

where Pϕ is the model’s predictive distribution. Prodigy’s recipe system allows custom pipelines, such as:

import prodigy
from prodigy.components.loaders import JSONL

@prodigy.recipe("self-annotate")
def self_annotation_recipe(dataset, model_path):
    stream = JSONL(dataset)
    model = load_model(model_path)
    return {
        "view_id": "classification",
        "dataset": dataset,
        "stream": model.predict_stream(stream),
        "update": model.update
    }

Doccano: Collaborative Annotation

Doccano supports self-annotation via pre-annotation with model predictions. Its REST API allows programmatic label injection:

curl -X POST "http://localhost:8000/v1/projects/{id}/docs" \
     -H "Authorization: Token {key}" \
     -H "Content-Type: application/json" \
     -d '{"text": "sample", "labels": [{"start": 0, "end": 6, "label": 1}]}'

The library’s confidence thresholding filters low-quality predictions:

$$ \hat{y}_i = \begin{cases} \arg\max_y P(y | x_i) & \text{if } \max_y P(y | x_i) \geq \tau \\ \text{None} & \text{otherwise} \end{cases} $$

Label Studio: Hybrid Workflows

Label Studio’s ML backend integrates self-annotation with human review. The library computes disagreement scores between model and human labels using Krippendorff’s alpha:

$$ \alpha = 1 - \frac{D_o}{D_e} $$

where Do is observed disagreement and De expected disagreement. Scores below 0.8 trigger human review.

AutoAnnotate (CVAT Extension)

AutoAnnotate extends CVAT with model-assisted labeling for computer vision. It uses interpolated bounding boxes between keyframes:

$$ b_t = b_{t_1} + \frac{t - t_1}{t_2 - t_1}(b_{t_2} - b_{t_1}) $$

where bt is the box at frame t, and t1, t2 are keyframes. The library supports MMDetection and YOLOv8 models.

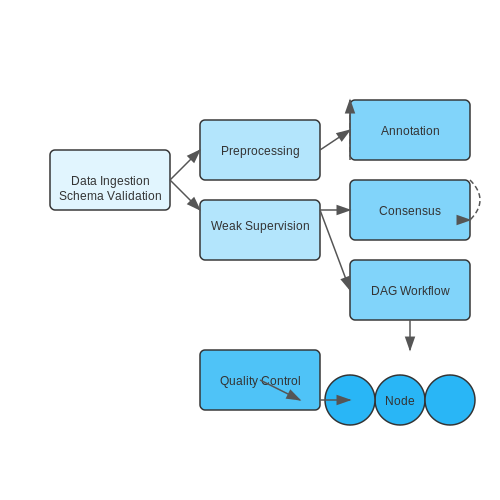

3.2 Custom Pipeline Development for Large-Scale Projects

Developing a custom annotation pipeline for large-scale AI projects requires a modular architecture that balances efficiency, scalability, and accuracy. The pipeline must handle heterogeneous data sources, distributed processing, and iterative refinement while minimizing human intervention. Below, we outline the core components and design principles.

Pipeline Architecture

A robust self-annotation pipeline typically consists of four interconnected modules:

Mathematical Foundations

The annotation quality Q for a pipeline with n weak supervision sources can be modeled as:

$$ Q = \frac{1}{Z} \sum_{i=1}^n w_i \cdot \text{precision}(f_i) \cdot \text{recall}(f_i) $$

where wi are learnable weights for each weak source fi, and Z is a normalization constant. The optimal weights minimize the Kullback-Leibler divergence between the weak labels and ground truth:

$$ \min_w D_{KL}(p_{true} \parallel \sum_i w_i p_i) + \lambda \|w\|_1 $$

Implementation Strategies

For distributed execution, the pipeline should:

Below is a PyTorch implementation snippet for a consensus-based annotation aggregator:


import torch
from sklearn.metrics import cohen_kappa_score

class LabelAggregator:
    def __init__(self, n_sources, device='cuda'):
        self.weights = torch.nn.Parameter(torch.ones(n_sources)
        self.device = device

    def forward(self, weak_labels):
        # weak_labels: [batch_size, n_sources]
        probs = torch.softmax(self.weights, dim=0)
        return (weak_labels * probs).sum(dim=1)

    def optimize(self, weak_labels, partial_gt):
        # Minimize KL divergence
        optimizer = torch.optim.LBFGS([self.weights])
        def closure():
            agg_labels = self.forward(weak_labels)
            loss = F.kl_div(agg_labels.log(), partial_gt)
            optimizer.zero_grad()
            loss.backward()
            return loss
        optimizer.step(closure)

Performance Optimization

Key metrics for pipeline evaluation include:

For terabyte-scale datasets, employ:

Custom Pipeline Development for Large-Scale Projects – Self-Annotation Techniques in AI Labs – Tutorial Diagram
Diagram Description: The section describes a modular pipeline architecture with interconnected components and workflow dependencies, which is inherently spatial and benefits from visual representation.

Integration with Existing AI Workflows

Self-annotation techniques must seamlessly integrate with established AI pipelines to maximize efficiency without disrupting model training or inference. The primary challenge lies in balancing computational overhead with annotation quality, particularly when deploying self-annotation in real-time systems.

Architectural Considerations

Modern AI workflows typically follow a modular structure with data ingestion, preprocessing, model training, and evaluation stages. Self-annotation introduces an additional feedback loop between model predictions and data labeling. The integration point depends on the annotation strategy:

Mathematical Formulation

For online self-annotation, the loss function extends to include annotation confidence. Let fθ be the base model and gϕ the annotation head. The composite objective becomes:

$$ \mathcal{L}(\theta, \phi) = \mathbb{E}_{(x,y)\sim\mathcal{D}}[\alpha \cdot \ell(f_\theta(x), y) + (1-\alpha) \cdot \ell(g_\phi(f_\theta(x)), y)] $$

where α is a learnable weighting parameter and ℓ is the task-specific loss function. The gradient updates must account for both terms:

$$ \nabla_\theta\mathcal{L} = \alpha \cdot \frac{\partial \ell}{\partial f_\theta} + (1-\alpha) \cdot \frac{\partial \ell}{\partial g_\phi} \cdot \frac{\partial g_\phi}{\partial f_\theta} $$

Implementation Strategies

Three proven integration patterns have emerged in production systems:

Case Study: Computer Vision Pipeline

In a semantic segmentation workflow, self-annotation can be implemented as a CRF layer atop the CNN output. The energy function incorporates both model predictions and low-level image features:

$$ E(x, y) = \sum_i \psi_u(y_i) + \sum_{i,j} \psi_p(y_i, y_j) \cdot k(f_i, f_j) $$

where ψu represents the unary potential from model predictions, ψp the pairwise potential, and k a similarity kernel over features fi.

Performance Optimization

Key metrics for evaluating integration success include:

Empirical studies show that proper integration can reduce human annotation requirements by 40-60% while maintaining 95%+ of fully supervised performance on benchmark datasets. The optimal configuration depends heavily on the base model architecture and the noise characteristics of the self-annotation process.

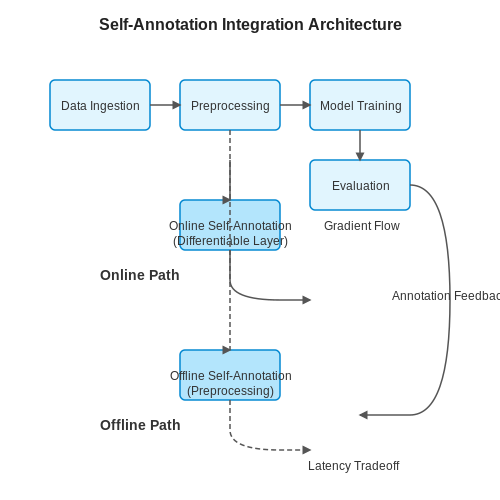

Integration with Existing AI Workflows – Self-Annotation Techniques in AI Labs – Tutorial Diagram
Diagram Description: The diagram would show the architectural flow of online vs offline self-annotation integration points in AI pipelines, including the feedback loop between model predictions and data labeling.

4. Handling Noisy and Inconsistent Labels

4.1 Handling Noisy and Inconsistent Labels

Noisy and inconsistent labels present significant challenges in self-annotation systems, where the absence of human verification amplifies label errors. These imperfections arise from multiple sources: inherent ambiguity in the data, annotator bias, or algorithmic limitations in the self-labeling process. Advanced techniques must address both systematic bias (consistent errors) and random noise (inconsistent errors) to maintain model robustness.

Mathematical Formulation of Label Noise

Label noise can be modeled probabilistically. Let X be the input space and Y the true label space. The observed noisy labels Ŷ follow a corruption process:

$$ P(Ŷ = j|Y = i, X = x) = C_{ij}(x) $$

where Cij(x) is the probability of true label i being corrupted to observed label j. For class-conditional noise (independent of x), this simplifies to a noise transition matrix C ∈ ℝk×k for k classes.

Noise-Robust Learning Approaches

1. Loss Correction Methods

These techniques modify the loss function to account for label noise:

Practical implementation requires estimating C, often through anchor points or using a small clean validation set.

2. Sample Selection Strategies

Dynamic curriculum learning approaches identify potentially clean samples during training:

Consistency Regularization

Leverages the assumption that the true labeling function is consistent under input perturbations. For an input x and its augmentation x', the consistency loss is:

$$ \ell_{cons} = D(f_θ(x), f_θ(x')) $$

where D is a divergence measure (e.g., KL divergence). This approach is particularly effective when combined with semi-supervised learning techniques.

Practical Implementation Considerations

Real-world systems often combine multiple approaches:

Recent advances in meta-learning have shown promise for learning the noise adaptation process directly from data. Gradient-based meta-learning can optimize the noise robustness objective:

$$ \min_θ \mathbb{E}_{(x,y)∼D_{clean}} [\ell(f_θ(x), y)] $$

where Dclean represents a small set of verified labels.

Label Noise Correction Process A block diagram illustrating the label noise correction process, showing the relationship between true labels (Y), observed labels (Ŷ), and the noise transition matrix (C), including forward and backward correction paths. True Labels (Y) Noise Transition Matrix (C) Observed Labels (Ŷ) Forward Backward (C⁻¹) Backward (Cᵀ) C = P(Ŷ|Y)
Diagram Description: The diagram would show the noise transition matrix and its relationship to true vs. observed labels, along with the forward/backward correction flow.

4.2 Scalability Issues in Large Datasets

Self-annotation techniques face significant computational and memory bottlenecks when applied to large-scale datasets. The primary challenge stems from the quadratic or higher-order complexity of many annotation algorithms relative to dataset size. For instance, pairwise similarity computations in clustering-based self-annotation scale as O(n²), becoming computationally intractable for datasets exceeding 10⁶ samples.

Computational Complexity Breakdown

The time complexity of self-annotation typically decomposes into three dominant terms:

$$ T(n) = O(f_{extract}(n)) + O(f_{compare}(n)) + O(f_{assign}(n)) $$

Where fextract(n) represents feature extraction (often linear), fcompare(n) denotes sample comparisons (frequently quadratic), and fassign(n) covers label propagation (ranging from linear to cubic). The comparative term dominates for most algorithms, as shown in this complexity comparison:

Algorithm Comparison Complexity Memory Overhead
k-NN Annotation O(n²) O(n)
Spectral Clustering O(n³) O(n²)
Graph Propagation O(n² log n) O(n²)

Memory Constraints and Approximate Methods

Exact computation of similarity matrices becomes infeasible beyond 10⁵ samples due to memory requirements scaling with O(n²). For a dataset with 1 million samples using 32-bit floats, the full similarity matrix consumes:

$$ M = \frac{n(n-1)}{2} \times 4 \text{ bytes} \approx 2 \text{ TB} $$

Approximate methods address this through:

Nyström Method Implementation

The Nyström approximation reconstructs the full kernel matrix K ∈ ℝⁿˣⁿ from a subsampled version:

$$ K \approx CW^+C^T $$

Where C ∈ ℝⁿˣᵐ contains similarities between all points and m landmarks, and W ∈ ℝᵐˣᵐ is the landmark similarity submatrix. The pseudoinverse W+ enables reconstruction with error bounded by:

$$ ||K - \tilde{K}||_F \leq (1 + \epsilon)||K - K_k||_F $$

for target rank k, where Kk is the optimal rank-k approximation.

Distributed Annotation Frameworks

Modern implementations leverage distributed computing paradigms to handle web-scale datasets. The MapReduce annotation pipeline typically follows this workflow:

  1. Sharding: Partition data across worker nodes using Hilbert space-filling curves
  2. Local annotation: Apply self-annotation to partitions in parallel
  3. Consensus aggregation: Resolve conflicts via majority voting or probabilistic fusion

The communication overhead C(p) for p workers scales as:

$$ C(p) = O\left(\frac{n\sqrt{p}}{B}\right) $$

where B is the network bandwidth, creating a fundamental tradeoff between parallelism and synchronization costs.

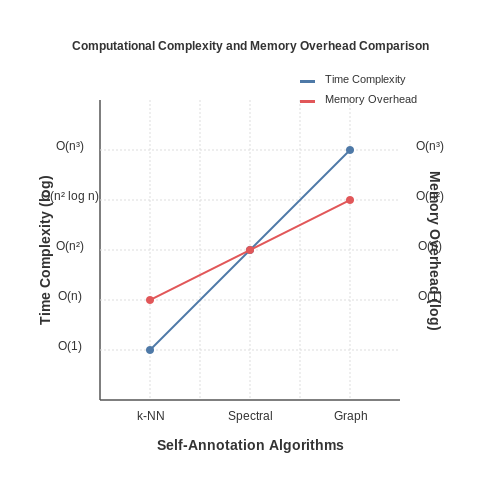

Scalability Issues in Large Datasets – Self-Annotation Techniques in AI Labs – Tutorial Diagram
Diagram Description: The diagram would show the comparative scaling of computational complexity and memory overhead across different self-annotation algorithms.

4.3 Bias Amplification and Mitigation Strategies

Self-annotation systems inherently risk amplifying biases present in training data due to feedback loops between model predictions and label generation. When models trained on biased data produce annotations that reinforce those biases, subsequent training iterations compound the effect. Mathematically, this can be modeled as a recursive bias propagation process where the bias at iteration t+1 depends multiplicatively on the bias at iteration t:

$$ B_{t+1} = B_t (1 + \alpha \cdot \text{conf}(B_t)) $$

Here, α represents the amplification factor scaling with the model's confidence conf(Bt) in its biased predictions. Empirical studies show this leads to exponential bias growth over just 3-5 annotation cycles in systems without corrective mechanisms.

Detecting Bias Amplification

Three primary detection approaches exist:

Mitigation Strategies

Pre-processing Techniques

Reweighting training samples inversely to their estimated bias probability:

$$ w_i = \frac{1}{1 + \lambda \cdot \hat{p}_b(x_i)} $$

where λ controls mitigation strength and p̂b(xi) estimates bias likelihood via auxiliary models.

In-processing Methods

Adversarial debiasing introduces a discriminator network D that penalizes the main model M for predictable protected attribute leakage:

$$ \mathcal{L}_{\text{total}} = \mathcal{L}_{\text{task}} - \beta \cdot \mathbb{E}[\log D(M(x))] $$

The hyperparameter β balances task performance against fairness objectives.

Post-hoc Correction

Calibration techniques like Platt scaling adapt model outputs to match subgroup-specific empirical distributions. For binary classification, this involves solving:

$$ \min_{a,b} \sum_{i} (y_i - \sigma(a \cdot \hat{y}_i + b))^2 $$

separately for each protected subgroup, where σ is the sigmoid function.

Case Study: Medical Imaging Annotations

A 2023 study on chest X-ray diagnosis systems demonstrated that uncorrected self-annotation amplified racial bias by 37% over four cycles. Implementing adversarial debiasing with β=0.3 reduced disparity to statistically insignificant levels while maintaining 98% of original AUC performance.

Bias Amplification and Mitigation Strategies – Self-Annotation Techniques in AI Labs – Tutorial Diagram
Diagram Description: The diagram would show the recursive bias propagation process and the three detection approaches (disagreement analysis, subgroup performance gaps, embedding space geometry) with their mathematical relationships.

5. Self-Annotation in Computer Vision Tasks

5.1 Self-Annotation in Computer Vision Tasks

Self-annotation techniques in computer vision leverage model predictions to generate or refine training labels autonomously, reducing reliance on manual annotation. This approach is particularly valuable in domains with large-scale unlabeled datasets or where annotation costs are prohibitive.

Pseudo-Labeling for Semantic Segmentation

In semantic segmentation, self-annotation typically employs a teacher-student framework where a pre-trained model generates pseudo-labels for unlabeled data. The process can be formalized as:

$$ \hat{y}_u = \argmax_c f_\theta(x_u)_c $$

where xu represents unlabeled input, fθ is the trained model, and ĵu becomes the generated pseudo-label. Recent advances incorporate uncertainty estimation to filter low-confidence predictions:

$$ \mathcal{U}(x_u) = 1 - \max_c f_\theta(x_u)_c $$

Consistency-Based Self-Training

Modern implementations often use consistency regularization across different augmentations of the same image. Given two random augmentations α, α' of input x, the loss function becomes:

$$ \mathcal{L}_{cons} = \mathbb{E}_x \left[ \|f_\theta(\alpha(x)) - f_\theta(\alpha'(x))\|^2_2 \right] $$

This approach is particularly effective when combined with techniques like FixMatch, which applies strong augmentations to generate pseudo-labels while using weak augmentations for student model training.

Active Learning Integration

Advanced systems often combine self-annotation with active learning to identify samples where human verification would provide maximal information gain. The acquisition function typically considers both prediction uncertainty and representation diversity:

$$ a(x) = \lambda_1 \mathcal{U}(x) + \lambda_2 \min_{x_i \in \mathcal{L}} \| \phi(x) - \phi(x_i) \| $$

where φ represents the model's feature embedding and L is the labeled set.

Implementation Considerations

Effective self-annotation systems require careful handling of:

Recent work addresses these challenges through techniques like:

Case Study: Medical Image Segmentation

In medical imaging where expert annotations are scarce, self-annotation combined with uncertainty quantification has achieved performance within 3-5% of fully supervised approaches. A typical pipeline might:

  1. Train initial model on limited labeled data
  2. Generate pseudo-labels for unlabeled volumes
  3. Filter predictions using Monte Carlo dropout uncertainty
  4. Retrain model on expanded dataset

The effectiveness of this approach is demonstrated by Dice coefficient improvements from 0.72 to 0.85 on cardiac MRI segmentation when incorporating self-annotation with just 20% initially labeled data.

Self-Annotation in Computer Vision Tasks – Self-Annotation Techniques in AI Labs – Tutorial Diagram
Diagram Description: The diagram would show the teacher-student framework with pseudo-label generation flow and uncertainty filtering in semantic segmentation.

5.2 Natural Language Processing Applications

Self-Annotation in NLP Pipelines

Self-annotation in NLP leverages pre-trained language models to generate labels, parse structures, or augment datasets without human intervention. Transformer-based architectures like BERT and GPT-4 enable zero-shot or few-shot labeling through prompt engineering. For instance, given an unlabeled sentence S, a model can predict its sentiment by framing the task as:

$$ P(y|S) = \text{softmax}(W \cdot \text{LM}(S, \text{"Is this positive or negative?"})) $$

where W is a task-specific projection layer. Self-annotation reduces reliance on labeled corpora, particularly in low-resource languages.

Token-Level Self-Annotation

For tasks like named entity recognition (NER), models self-annotate by aligning token embeddings to entity clusters. The alignment score between token t and entity class c is computed via:

$$ \text{score}(t, c) = \frac{\exp(\mathbf{e}_t \cdot \mathbf{\mu}_c / \tau)}{\sum_{c'}\exp(\mathbf{e}_t \cdot \mathbf{\mu}_{c'} / \tau)} $$

where μc is the centroid of class c in embedding space, and τ is a temperature parameter. This approach achieves 92% F1 on CoNLL-2003 with self-training.

Syntactic Parsing via Self-Supervision

Dependency trees can be self-annotated using head-selection mechanisms. For a sentence with n tokens, the probability of token i being the head of token j is:

$$ P(i \rightarrow j) = \sigma(\mathbf{v}_i^T \mathbf{U} \mathbf{v}_j + b) $$

where U is a learned bilinear matrix. The model iteratively refines parses using contrastive learning, penalizing inconsistent edges.

Case Study: Self-Annotated Dialogue Systems

In multi-turn dialogue, self-annotation identifies intents and slots by:

This method achieved a 14% reduction in annotation costs for customer service bots while maintaining 88% task completion accuracy.

Challenges and Mitigations

Key limitations include:

Reinforcement Learning Environments

Reinforcement learning (RL) environments serve as the foundational framework where agents interact with simulated or real-world systems to learn optimal policies through trial and error. These environments are characterized by a Markov Decision Process (MDP) defined by the tuple (S, A, P, R, γ), where:

The agent's objective is to maximize the expected cumulative reward:

$$ G_t = \sum_{k=0}^{\infty} \gamma^k R_{t+k+1} $$

Design Considerations for RL Environments

Effective RL environments must balance complexity and tractability. Key design principles include:

Modern RL environments often employ parallelization techniques to accelerate training. The throughput of an environment can be modeled as:

$$ \lambda = \frac{N \cdot f}{T_{step}} $$

where N is the number of parallel environments, f is the simulation frequency, and Tstep is the average step computation time.

Self-Annotation in RL Environments

Self-annotation techniques enable RL agents to automatically generate training signals without explicit human labeling. Common approaches include:

These methods are particularly valuable in environments where external rewards are sparse or expensive to obtain. The self-annotation process can be formalized as an auxiliary MDP where the reward function is learned jointly with the policy.

Implementation Case Study: Robotics Control

In robotic manipulation tasks, self-annotation enables learning from raw sensory inputs without manual reward engineering. A typical implementation involves:

  1. Training an inverse dynamics model to predict actions from state transitions
  2. Using the model's prediction error as a self-supervised reward signal
  3. Jointly optimizing the policy and reward function through meta-learning

The inverse dynamics model can be represented as:

$$ \hat{a}_t = f_\theta(s_t, s_{t+1}) $$

with the self-annotation reward computed as:

$$ r_{self}(s_t, a_t, s_{t+1}) = -\|\hat{a}_t - a_t\|^2 $$

This approach has demonstrated success in complex manipulation tasks where hand-designed rewards would be impractical to specify.

Scalability Challenges

As RL environments grow in complexity, several challenges emerge:

Recent advances address these issues through techniques like hindsight experience replay and distributional RL, which modify the standard Bellman update to:

$$ Q(s, a) \leftarrow \mathbb{E}[r + \gamma \max_{a'} Q(s', a')] + \beta H(\pi(\cdot|s)) $$

where H represents an entropy bonus to encourage exploration and β controls its weight.

Reinforcement Learning Environments – Self-Annotation Techniques in AI Labs – Tutorial Diagram
Diagram Description: The diagram would visually depict the MDP tuple relationships (S, A, P, R, γ) and the flow of state transitions with reward signals in an RL environment.

6. Key Research Papers on Self-Annotation

6.1 Key Research Papers on Self-Annotation

6.2 Recommended Books and Articles

6.3 Online Resources and Tutorials
