Broadcast Band Rf Amplifier Circuit – Circuit Schematic
Broadcast Band Rf Amplifier Circuit
The circuit has a frequency response that ranges from 100 Hz to 3 MHz; the gain is about 30 dB. Field-effect transistor Ql is configured in the common-source s...
Gasfet Preamp For 435Mhz Circuit – Circuit Schematic

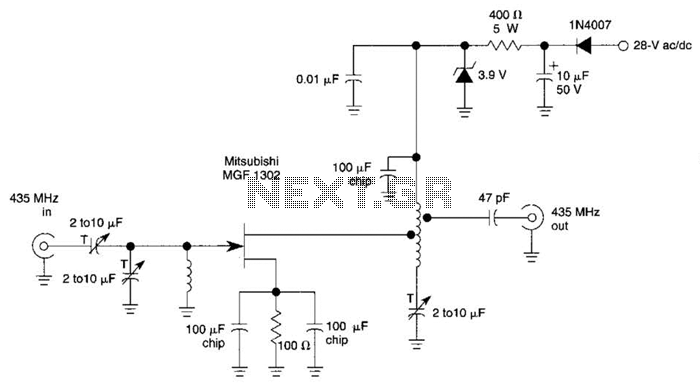

Gasfet Preamp For 435Mhz Circuit
This circuit is a low-noise preamplifier for the 435-MHz amateur satellite frequencies. The circuit uses a Mitsubishi MGF1302. A 28-Vdc source is shown,...
Vhf-Uhf Preamp Circuit – Circuit Schematic
Vhf-Uhf Preamp Circuit
The MAR-x preamp shown will cover up to 1.5 or 2 GHz with the correct MAR-x IC. ATTN1 should be omitted for low noise-figure.appli cations. ATTN1 and ATTN2 pro...
Ne602 Superhet Front End Circuit – Circuit Schematic
Ne602 Superhet Front End Circuit
By using an NE602 with a filter and an MC1350P IC, a front end and an IF system for a basic superheterodyne receiver can be built with few parts....
Transistorized Am Radio Circuit – Circuit Schematic
Transistorized Am Radio Circuit
Shown is a schematic of a typical transistor AM radio. This circuit uses npn transistors. The circuit is generic; therefore, no specific values are given for s...
Super-Simple Shortwave Receiver Circuit – Circuit Schematic
Super-Simple Shortwave Receiver Circuit
Integrated circuit Ul (an NE602 double-balanced mixer) is a combination oscillator and frequency mixer. Signals from the antenna input (at Jl) are fed through ...
80M And 40M Cw-Ssb Receiver Circuit – Circuit Schematic
80M And 40M Cw-Ssb Receiver Circuit
This direct-conversion receiver uses a TDA7000 IC and it drives an LM386 audio amplifier. The TDA7000 is used for its mixer and L.O. section. ...
Ne602 Direct Conversion Receiver Circuit – Circuit Schematic
Ne602 Direct Conversion Receiver Circuit
An NEC602 is used as a mixer with a zero IF frequency output, U2 acts as an audio amplifier. This receiver is primarily for SSB and CW signals. Tl and T2 are 1...
Vlf Whistler Receiver Circuit – Circuit Schematic
Vlf Whistler Receiver Circuit
The VLF whistler receiver is intended to listen to natural radio noise and signals that occur below 20 kHz. LI is a large loop antenna that is 250 to 300 turns...
27.145Mhz Nbfm Receiver Circuit – Circuit Schematic
27.145Mhz Nbfm Receiver Circuit
Using a Motorola MC3363 LSI one-chip FM receiver, the circuit is a dual-conversion FM receiver with a 10.7-MHz IF chain....
Conversion Receiver For 160 To 20M Circuit – Circuit Schematic
Conversion Receiver For 160 To 20M Circuit
Note that Tl and T2 are TOKO, including part numbers for the coils Tl and T2. The direct-con-version receiver shown uses a double-tuned input network made from...
Simple Spectrum Analyzer Adaptor For Scopes Circuit – Circuit Schematic
Simple Spectrum Analyzer Adaptor For Scopes Circuit
Suitable for monitoring an amateur band or a segment of the radio spectrum, this simple adaptor uses an NE602 mixer-oscillator chip to produce a 455-kHz IF sig...
Adjustable Vfo Temperature Compensator Circuit – Circuit Schematic
Adjustable Vfo Temperature Compensator Circuit
Use of a differential capacitor allows temperature compensation of LC circuit using an NFO and N1500 ceramic. C6 is a differential capacitor that has two stato...
Local Oscillator For Double Balanced Mixers Circuit – Circuit Schematic

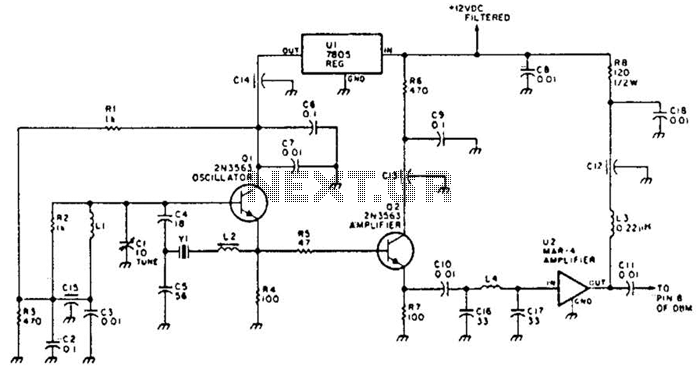

Local Oscillator For Double Balanced Mixers Circuit
This circuit has an amplifier to supply +10 dBm to an SBL series (Mini-circuits) or similar type doubly-balanced mixer assembly. This circuit has values shown ...
Mosfet Mixer-Oscillator Circuit For Am Receivers Circuit – Circuit Schematic
Mosfet Mixer-Oscillator Circuit For Am Receivers Circuit
This circuit is an improved front end for upgrading a transistor AM receiver. This front end is useful ...
Simple Noise Limiter For Receivers Circuit – Circuit Schematic
Simple Noise Limiter For Receivers Circuit
This circuit uses a diode series clipper to limit noise peaks on a received signal. ...
Fm Modulator Circuit – Circuit Schematic
Fm Modulator Circuit
The FM modulator is built with a Motorola MC1648P oscillator. Two varactors, Motorola MV-209, are used to frequency modulate the oscillator. The 5000- potentio...
Preamp Transmit-Receive Sequencer Circuit – Circuit Schematic
Preamp Transmit-Receive Sequencer Circuit
This circuit is useful in amateur radio VHF and UHF work where a mast-mounted antenna preamp is used for receiving. The kit controls T-R switching and change-o...
Hum Reducer For Direct-Conversion Receivers Circuit – Circuit Schematic
Hum Reducer For Direct-Conversion Receivers Circuit
One cure for ac power line hum and ripple (caused by leakage current) is to use a well-reg-ulated and filtered 9- to 18-Vdc power supply with a balancing choke...
50Mhz Rf Bridge Circuit – Circuit Schematic

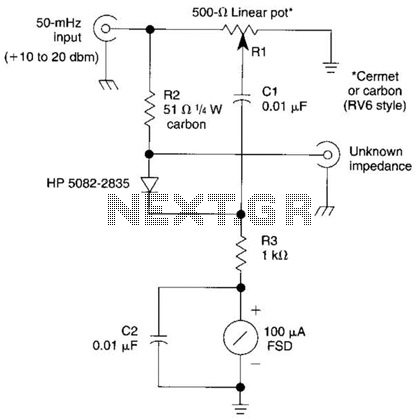

50Mhz Rf Bridge Circuit
The bridge shown was used for measurements on 50-MHz amateur radio antennas. Rl is a miniature 500 linear potentiometer....
