By the driving capacitive loads MAX4223 ~ MAX4228 circuit diagram – Circuit Schematic
By the driving capacitive loads MAX4223 ~ MAX4228 circuit diagram
As shown in FIG grounds MAX4223 ~ MAX4228 uses a capacitive load drive circuit isolation resistor RISO constructed. MAX4223 ~ MAX4228 maximum permitted capacit...
The MAX4108 4109 4308 4309 large capacitive load drive circuit diagram to enlarge – Circuit Schematic
The MAX4108 4109 4308 4309 large capacitive load drive circuit diagram to enlarge
As shown in FIG grounds MAX4108/4109/4308/4309 using the capacitive load driving circuit isolation resistor Rs constituted. MAX4108/4109/4308/4309 good AC char...
Capacitive load drive circuit diagram of the MAX4106 4107 – Circuit Schematic
Capacitive load drive circuit diagram of the MAX4106 4107
As shown in FIG grounds MAX4106/4107 using a capacitive load drive circuit isolation resistor Rs constituted. MAX4106/4107 good AC characteristics, but they ar...
The MAX4104 4105 4304 4305 as the driving capacitive loads – Circuit Schematic
The MAX4104 4105 4304 4305 as the driving capacitive loads
As shown in FIG grounds MAX4104/4105/4304/4305 using the capacitive load driving circuit isolation resistor RISO constructed. MAX4104/4105/4304/4305 the maximu...

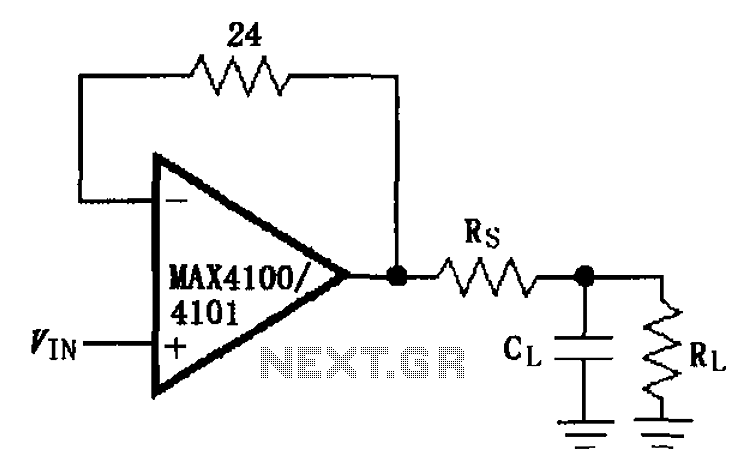

Capacitive load drive circuit diagram of the MAX4100 4101 – Circuit Schematic
Capacitive load drive circuit diagram of the MAX4100 4101
As shown in FIG grounds MAX4100/4101 using a capacitive load drive circuit isolation resistor Rs constituted. MAX4100/4101 allows the maximum capacitive load, ...
By the PGA204 205 op amp OPA602 programmable AC coupled amplifier – Circuit Schematic
By the PGA204 205 op amp OPA602 programmable AC coupled amplifier
As shown in FIG exchange by PGA204/205 op amp OPA602 constituted coupled programmable amplifier. The OPA602 op amp circuit to form a feedback Ref foot while ex...
Controllable integrator F007 schematic – Circuit Schematic
Controllable integrator F007 schematic
As shown in FIG controllable integrating circuit. The circuit has reset to zero, and to keep different integration time constant controllable integrator. The a...
INA321 OPA340 composed output buffer circuit 322 – Circuit Schematic
INA321 OPA340 composed output buffer circuit 322
As shown in FIG constituted by OPA340 INA321/322 output buffer circuit. INA321/322 optimum load impedance 10k or more. When the load impedance decreases, the o...
Constituted by the PGA103 programmable gain instrumentation amplifier circuit diagram – Circuit Schematic
Constituted by the PGA103 programmable gain instrumentation amplifier circuit diagram
As shown in FIG constitute grounds PGA103 programmable gain instrumentation amplifier. This circuit uses the PGA205 and PGA103 cascading manner, the total gain...
Eliminate hum instrumentation amplifier INA101 circuit – Circuit Schematic
Eliminate hum instrumentation amplifier INA101 circuit
As shown in FIG To eliminate hum instrument amplifier circuit. FIG amplifier stage A1, A2 selected integrated operational amplifier INA101, followed by level A...
TDA6106Q having a feedback factor of the test circuit diagram 1 116 – Circuit Schematic
TDA6106Q having a feedback factor of the test circuit diagram 1 116
As shown in FIG TDA6106Q test circuit with feedback factor is 1/116. After the input signal Vin from the input network R1, C1, C2, R9 enter TDA6106Q composed o...
Notch filter circuit diagram MC33171 – Circuit Schematic
Notch filter circuit diagram MC33171
As shown for the trap circuit. The circuit uses a high-performance op amp device MC33171 constitute trap. The device has a wide band and a high conversion rate...
Test circuit diagram with feedback factor of 1 83 DA6101Q 6111Q – Circuit Schematic
Test circuit diagram with feedback factor of 1 83 DA6101Q 6111Q
As shown for the test circuit with feedback factor of 1/83 DA6101Q/6111Q is. f input signal input through a network of R1, C1, C2, C3, R9 enter TDA6101Q compos...
A709 a simple differential amplifier circuit diagram – Circuit Schematic
A709 a simple differential amplifier circuit diagram
As shown for the simple differential amplifier circuit. Two input signals Vi1 and Vi2 respectively by R1 and R3, R4 voltage divider circuit added to the op amp...
Simple adjustment of high input impedance double wave linear detection circuit RC4558DN – Circuit Schematic
Simple adjustment of high input impedance double wave linear detection circuit RC4558DN
As shown for the simple adjustment of the high input impedance double wave linear detector circuit. The operational amplifier circuit by the negative feedback ...
Improved differential circuit diagram – Circuit Schematic
Improved differential circuit diagram
As shown for the modification of the differential circuit. Figure, A1 is an integrator, the output is ...
Low Cost integrator CC4069 – Circuit Schematic
Low Cost integrator CC4069
As shown for the low-cost integration circuit. Integrator operational amplifiers are generally used, but with a CMOS inverter CC4069 also constitute an integra...
OPA606 capacitive load isolation buffer – Circuit Schematic
OPA606 capacitive load isolation buffer
As shown for the isolation buffer circuit capacitive load. Usually when an external op amp for capacitive load, will seriously affect the stability of the circ...
Parallel high-speed current driver circuit diagram OPA660 – Circuit Schematic
Parallel high-speed current driver circuit diagram OPA660
As shown for the high-speed parallel current drive circuit. Input signal Vin have been added 180 resistor equivalent device OPA660 special OTA transistor base ...
ISO103 gain adjustment circuit diagram – Circuit Schematic
ISO103 gain adjustment circuit diagram
As shown for the gain adjustment circuit ISO103. Circuit gain trimming potentiometer R2 (general ISO103 gain accuracy and offset the need for external adjustme...
